TOYOTA KLUGER HV MHU28W-BRXGK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

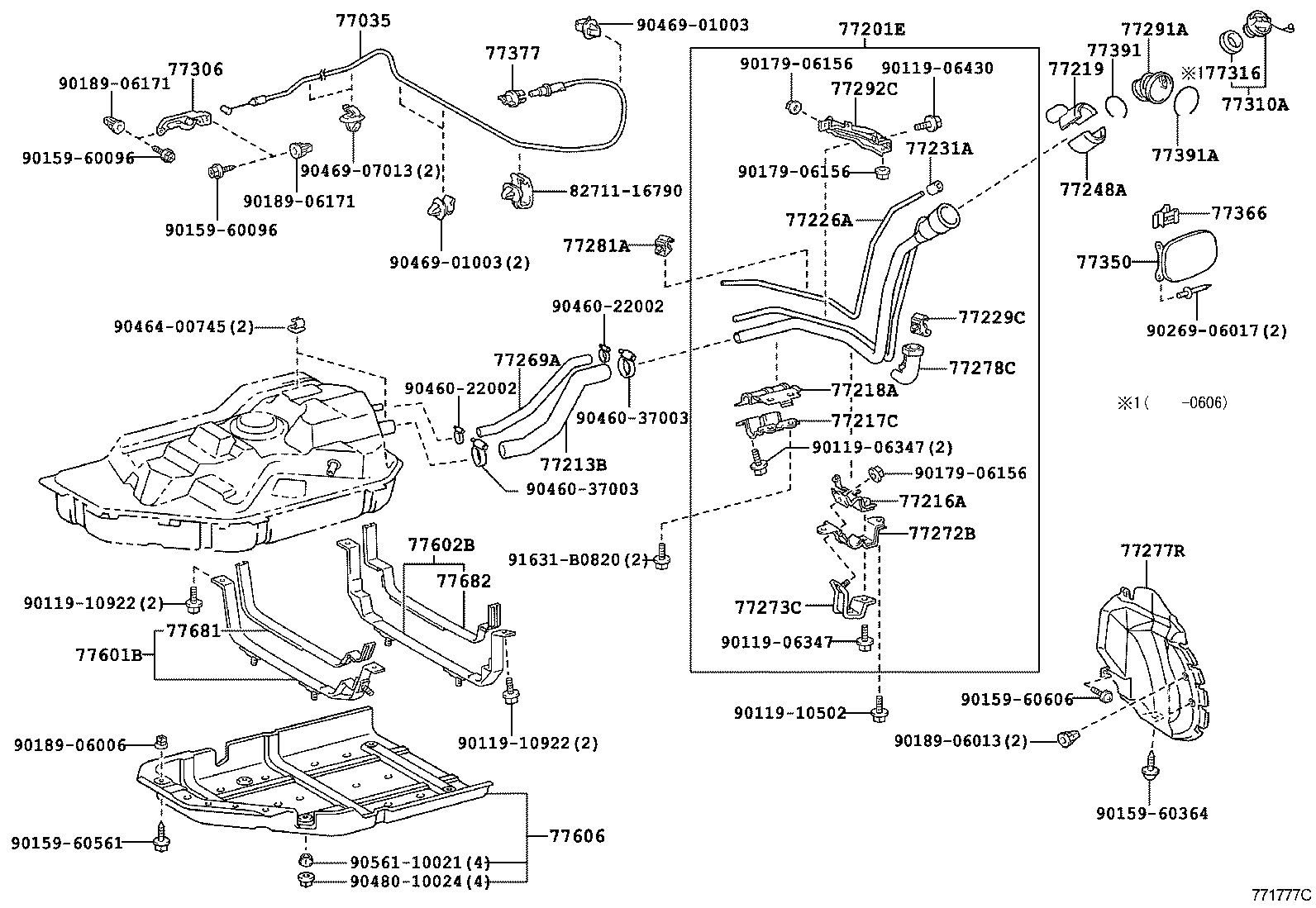

FUEL TANK TUBE

ﾌｭｰｴﾙ ﾀﾝｸ ILLUST NO. 2 OF 3(0503- )

KLUGER HV | FUEL TANK TUBE 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77219 - COVER, FUEL TANK FILLER PIPE 77226A - TUBE, FUEL TANK BREATHER, NO.6 77229C - CLAMP, BREATHER TUBE 77231A - CONNECTOR, FUEL TANK BREATHER TUBE 77248A - HOLDER, FUEL TANK FILLER PIPE COVER 77269A - HOSE, FUEL TANK BREATHER 77272B - SUPPORT, BREATHER TUBE, NO.1 77273C - SUPPORT, BREATHER TUBE, NO.2 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77281A - CLAMP, FUEL FILLER PIPE 77291A - SHIELD, FUEL TANK FILLER PIPE 77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77681 - SEAT, FUEL TANK BAND, RH 77682 - SEAT, FUEL TANK BAND, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
