TOYOTA LAND CRUISER PRADO GRJ121W-GKAGK / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

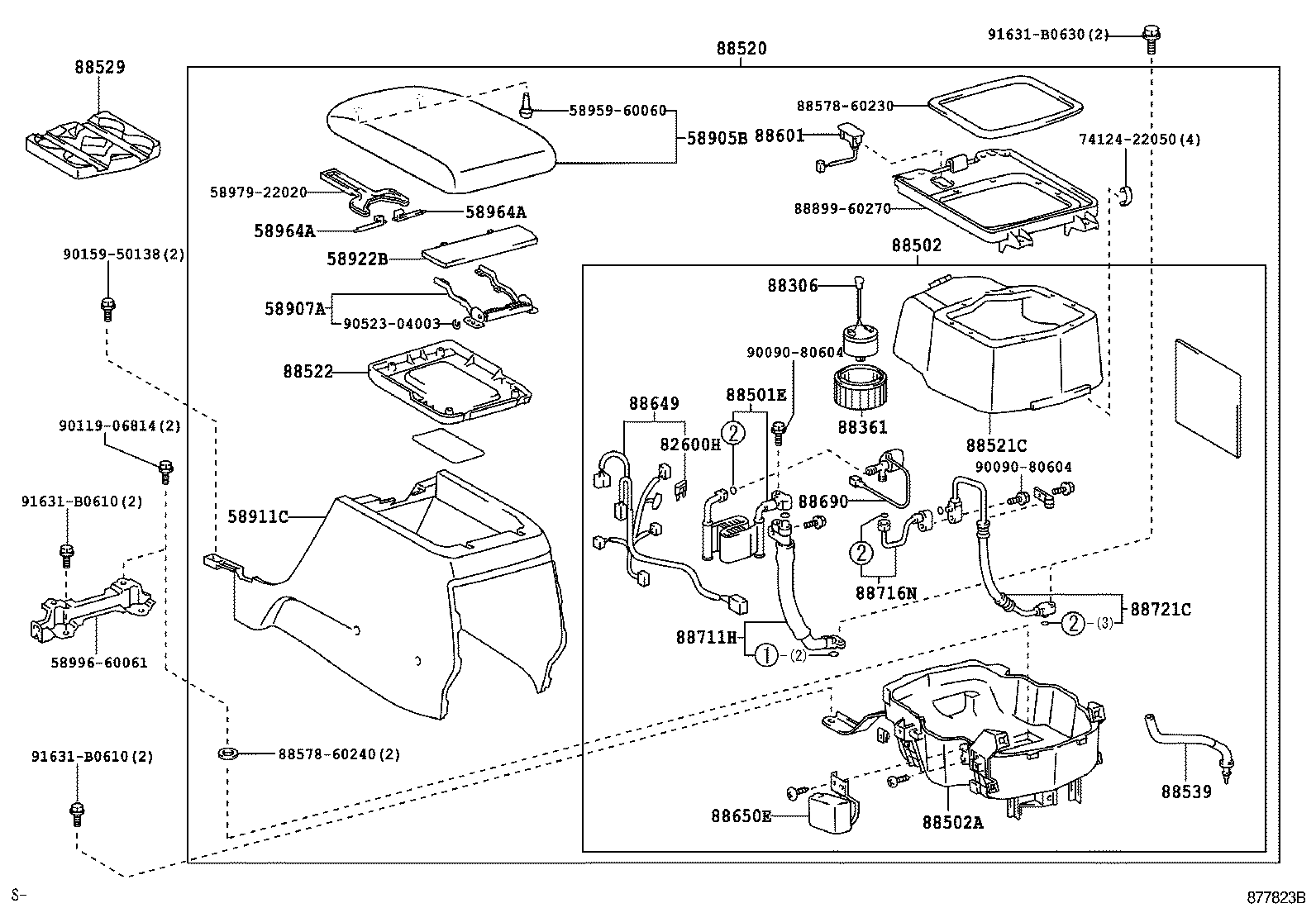

HEATING AIR CONDITIONING COOLER UNIT

ｸｰﾙﾎﾞｯｸｽ ILLUST NO. 3 OF 4(0508- )GRJ121

LAND CRUISER PRADO | HEATING AIR CONDITIONING COOLER UNIT 58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX) 58907A - HINGE SUB-ASSY, COOLING BOX DOOR 58911C - PANEL, BOX, NO.1(FOR COOL BOX) 58922B - PLATE, BOX, UPPER NO.2 ** Std Part 58964A - STOPPER, COOLING BOX DOOR, NO.1 58964A - STOPPER, COOLING BOX DOOR, NO.1 ** Std Part ** Std Part ** Std Part 82600H - FUSE, FUSE BLOCK 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 88361 - FAN, COOLER BLOWER, NO.1 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) 88502 - CASE SUB-ASSY, COOLING UNIT 88502A - CASE SUB-ASSY, COOLING UNIT 88520 - BOX ASSY, COOLING 88521C - CASE, COOLING UNIT 88522 - DOOR, COOLING UNIT 88529 - TRAY, COOLING BOX 88539 - HOSE, COOLER UNIT DRAIN, NO.1 ** Std Part ** Std Part 88601 - SWITCH SUB-ASSY, COOLER CONTROL 88649 - WIRING, COOLER, NO.2 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 88690 - VALVE ASSY, COOLER MAGNET 88711H - HOSE, DISCHARGE 88716N - PIPE, COOLER REFRIGERANT LIQUID, N 88721C - HOSE, LIQUID ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
