TOYOTA RAUM NCZ20-AHPXK / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

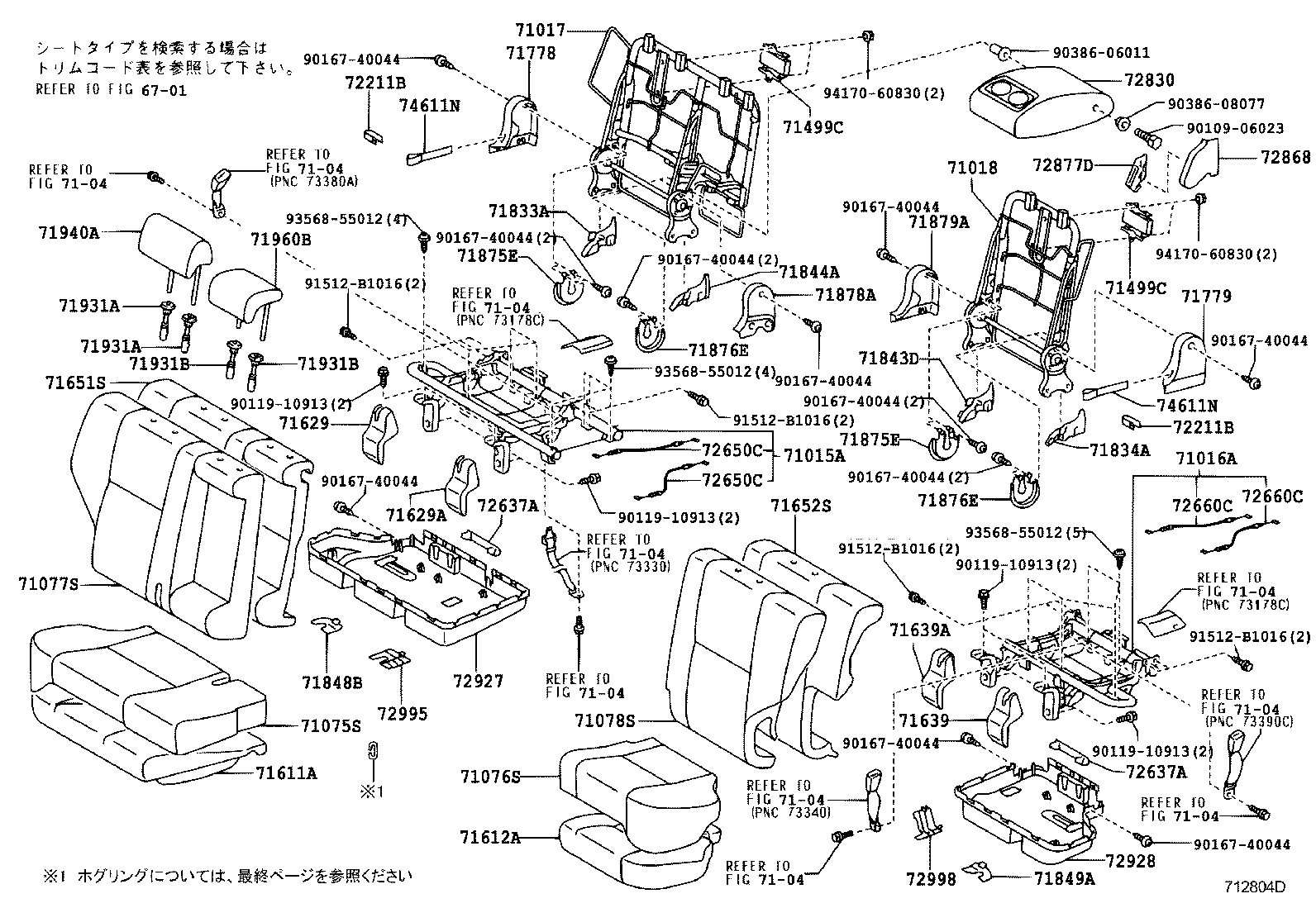

REAR SEAT SEAT TRACK

ﾀﾝﾌﾞﾙ ｼ-ﾄ (0304- )NCZ20

RAUM | REAR SEAT SEAT TRACK ** Refer Fig 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71499C - DAMPER, REAR SEAT CUSHION SPRING 71499C - DAMPER, REAR SEAT CUSHION SPRING 71611A - PAD, REAR SEAT CUSHION, RH 71612A - PAD, REAR SEAT CUSHION, LH 71629 - COVER, REAR SEAT CUSHION HINGE 71629A - COVER, REAR SEAT CUSHION HINGE, RH 71639 - COVER, REAR SEAT CUSHION HINGE, LH 71639A - KNOB, REAR SEAT LOCK 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71843D - COVER, REAR SEAT RECLINING, NO.2 RH 71844A - COVER, REAR SEAT RECLINING, NO.2 LH 71848B - CAP, SEAT ADJUSTER COVER, RH 71849A - CAP, SEAT ADJUSTER COVER, LH 71875E - COVER, RECLINING ADJUSTER INSIDE, RH 71875E - COVER, RECLINING ADJUSTER INSIDE, RH 71876E - COVER, RECLINING ADJUSTER INSIDE, LH 71876E - COVER, RECLINING ADJUSTER INSIDE, LH 71878A - COVER, REAR SEAT RECLINING, INNER RH 71879A - COVER, REAR SEAT RECLINING, INNER LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71960B - HEADREST ASSY, REAR SEAT, CENTER 72211B - HANDLE, SEAT TRACK ADJUSTING 72211B - HANDLE, SEAT TRACK ADJUSTING 72637A - HANDLE, REAR SEAT LOCK 72637A - HANDLE, REAR SEAT LOCK 72650C - CABLE ASSY, REAR NO.2 SEAT LOCK, RH 72650C - CABLE ASSY, REAR NO.2 SEAT LOCK, RH 72660C - CABLE ASSY, REAR NO.2 SEAT LOCK, LH 72660C - CABLE ASSY, REAR NO.2 SEAT LOCK, LH 72830 - ARMREST ASSY, REAR SEAT, CENTER 72868 - COVER, CENTER ARMREST HINGE, RH 72877D - COVER, SEAT ARMREST 72927 - COVER, REAR SEAT CUSHION UNDER, RH 72928 - COVER, REAR SEAT CUSHION UNDER, LH 72995 - COVER, REAR SEAT CUSHION, RH 72998 - COVER, REAR SEAT CUSHION, LH 74611N - STRAP, ASSIST GRIP 74611N - STRAP, ASSIST GRIP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
