TOYOTA RAUM NCZ25-AHPXK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

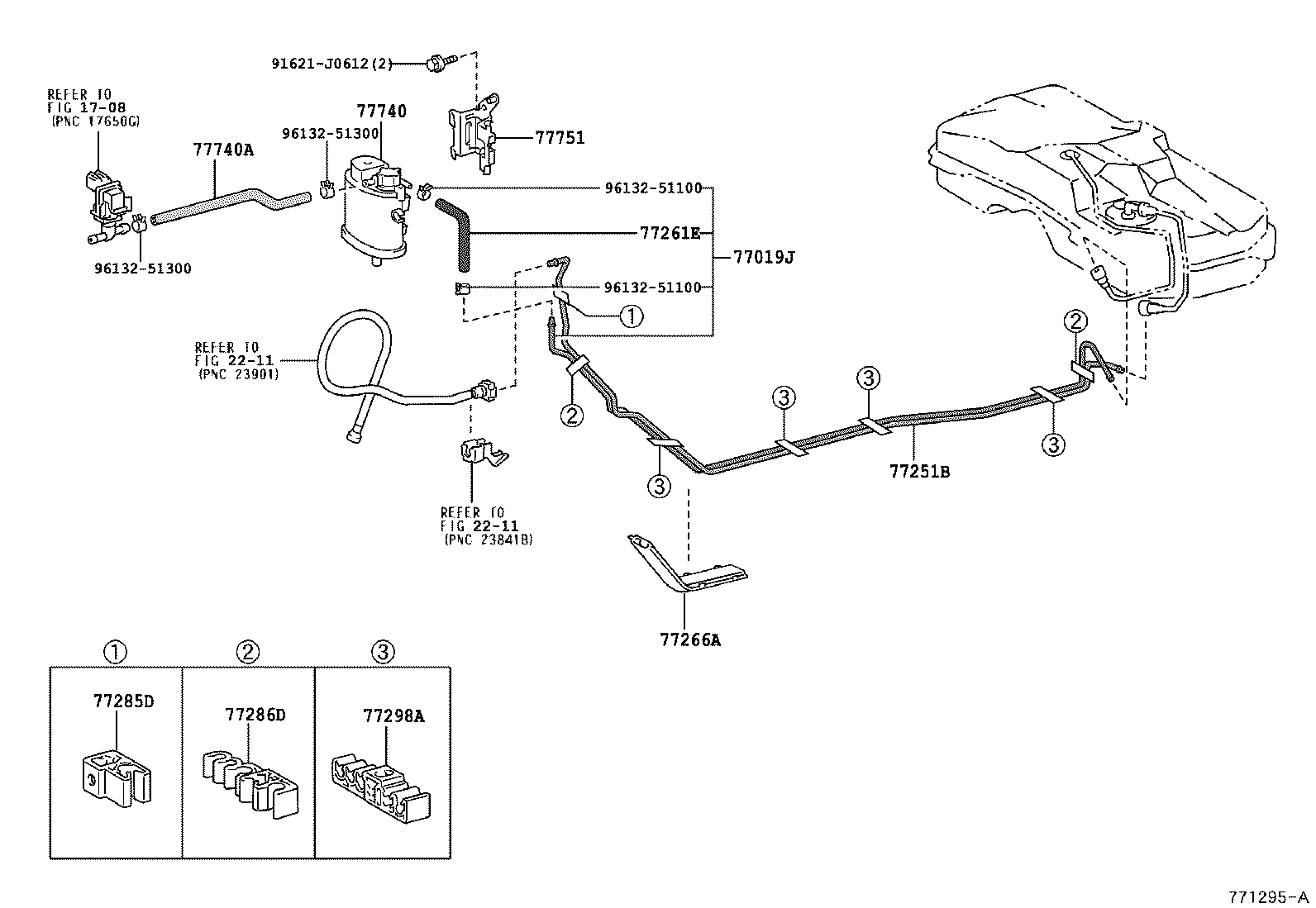

ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ ILLUST NO. 2 OF 2(0304- )NCZ25

RAUM | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER 77251B - TUBE, FUEL MAIN 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77266A - PROTECTOR, FUEL TUBE, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77298A - CLAMP, FUEL TUBE, NO.4 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
