TOYOTA PREMIO ALLION NZT260-CEXEK / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

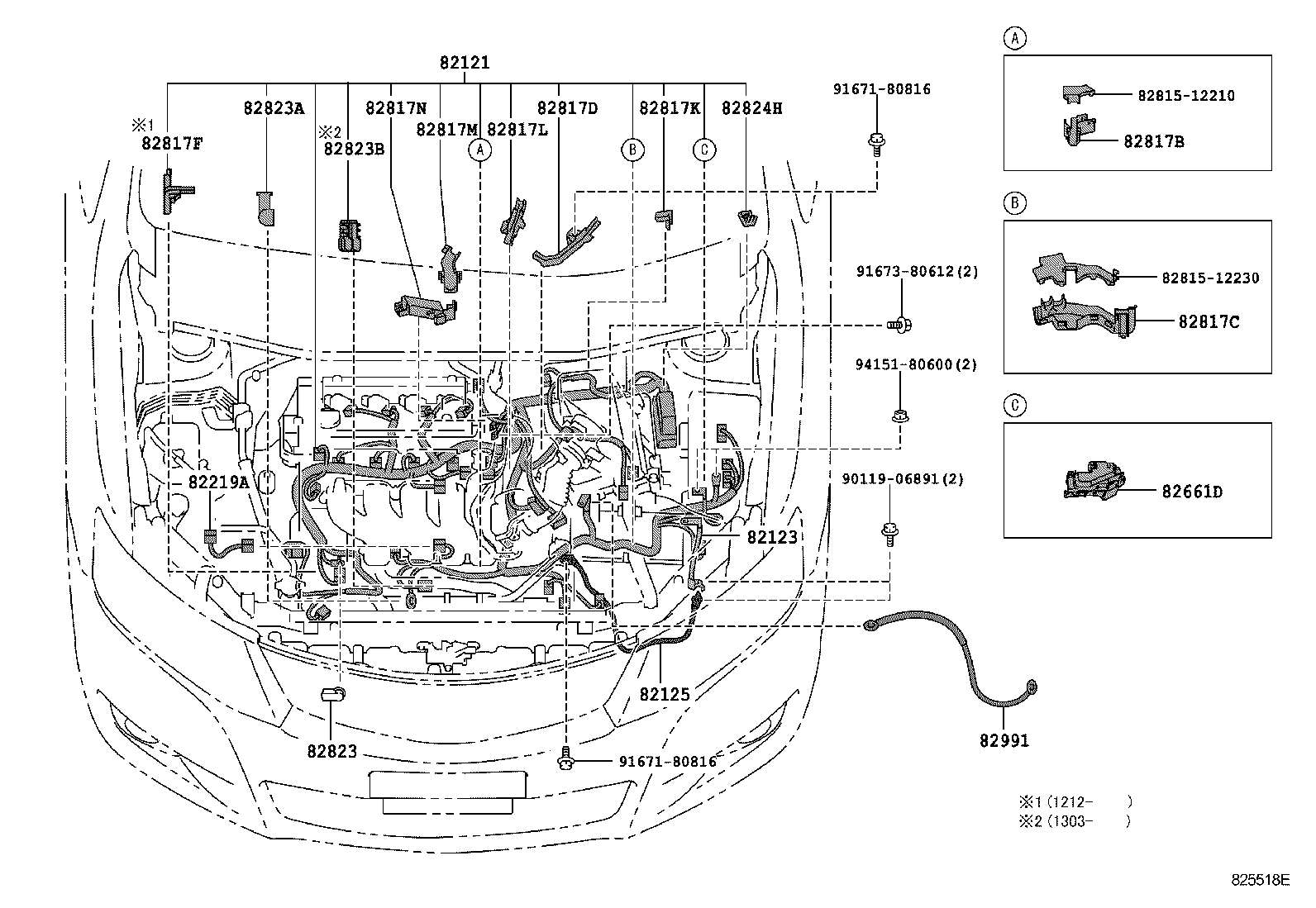

WIRING CLAMP

ｴﾝｼﾞﾝ ILLUST NO. 2 OF 8(0705- )NZT260

PREMIO ALLION | WIRING CLAMP 82121 - WIRE, ENGINE 82123 - WIRE, ENGINE, NO.3 82125 - WIRE, TRANSMISSION 82219A - WIRE, SENSOR 82661D - COVER, RELAY BLOCK, SIDE NO.1 ** Std Part ** Std Part 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817D - PROTECTOR, WIRING HARNESS, NO.5 82817F - PROTECTOR, WIRING HARNESS, NO.7 82817K - PROTECTOR, WIRING HARNESS, NO.10 82817L - PROTECTOR, WIRING HARNESS, NO.11 82817M - PROTECTOR, WIRING HARNESS, NO.12 82817N - PROTECTOR, WIRING HARNESS, NO.13 82823 - CAP, TERMINAL, NO.1 82823A - CAP, TERMINAL, NO.2 82823B - CAP, TERMINAL, NO.3 82824H - CONNECTOR, WIRING HARNESS 82991 - WIRE, FUSIBLE LINK REPAIR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
