TOYOTA RACTIS SCP100-CHXNK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

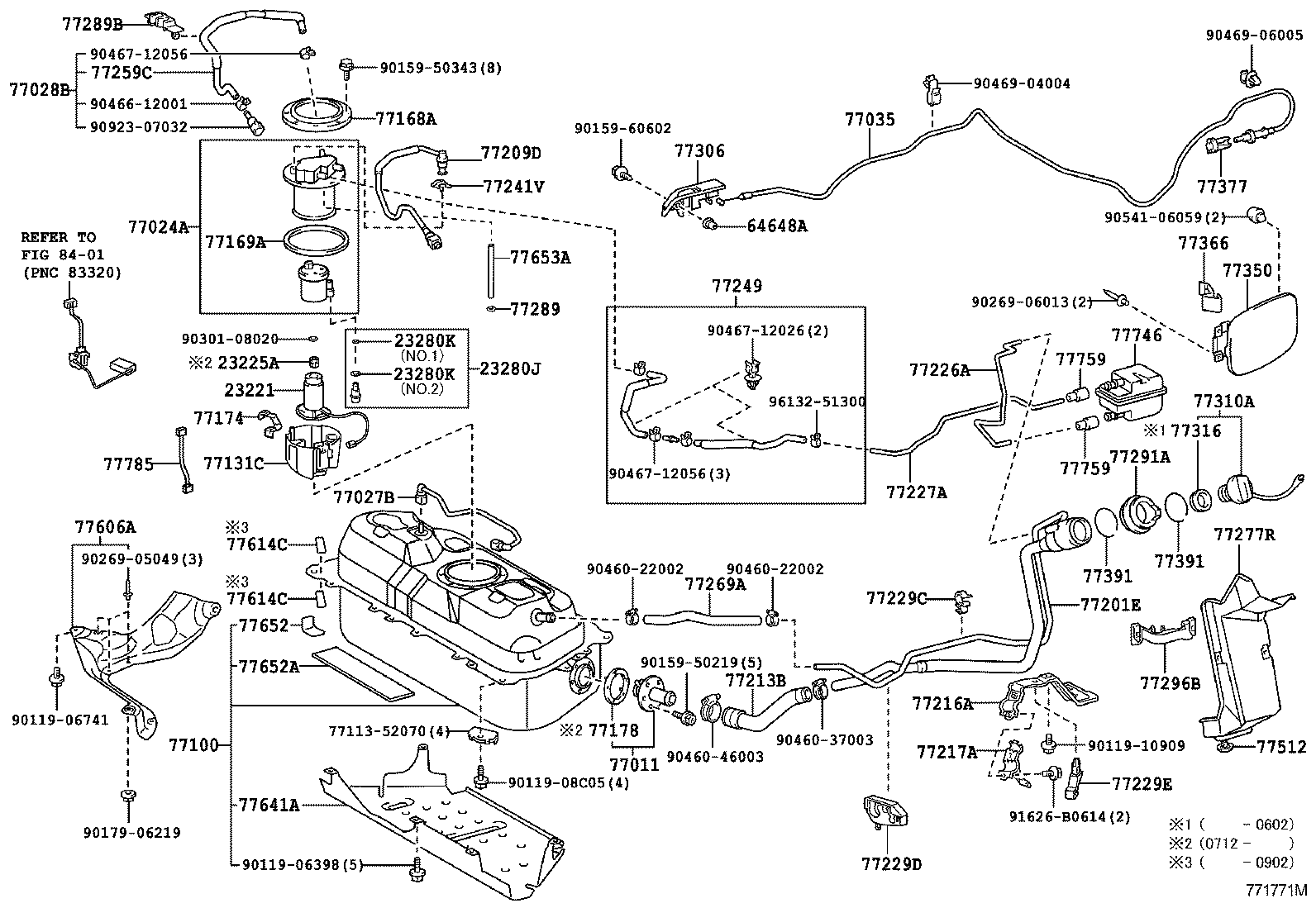

ﾌｭｰｴﾙ ﾀﾝｸ(ｳｪﾙｷｬﾌﾞ ｼﾖｳ) ILLUST NO. 1 OF 2(0511- )NCP100,SCP100

RACTIS | FUEL TANK TUBE 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77024A - PLATE SUB-ASSY, FUEL SUCTION 77027B - TUBE SUB-ASSY, FUEL EMISSION, NO.1 77028B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.3 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL ** Std Part 77131C - SUB-TANK, FUEL, NO.1 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77226A - TUBE, FUEL TANK BREATHER, NO.6 77227A - TUBE, FUEL TANK EVAPORATION VENT 77229C - CLAMP, BREATHER TUBE 77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4 77229E - CLAMP, BREATHER TUBE 77241V - CLIP, TUBE JOINT 77249 - HOSE, FUEL EMISSION 77259C - HOSE, FUEL 77269A - HOSE, FUEL TANK BREATHER 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77289 - HOLDER, FUEL TANK PIPE SETTING 77289B - CLAMP, FUEL TUBE, NO.3 77291A - SHIELD, FUEL TANK FILLER PIPE 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391 - RING, FUEL INLET BOX 77512 - BRACKET, FUEL TANK, REAR 77606A - PROTECTOR, FUEL TANK FILLER PIPE 77614C - SEAL, FUEL TANK COVER 77614C - SEAL, FUEL TANK COVER 77641A - PROTECTOR, FUEL TANK, NO.1 77652 - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77653A - CUSHION, FUEL TANK, NO.3 77746 - FILTER, CHARCOAL CANISTER, NO.2 77759 - HOSE, CHARCOAL CANISTER 77759 - HOSE, CHARCOAL CANISTER 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
