TOYOTA DYNA TOYOACE TRU300-PQMMK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

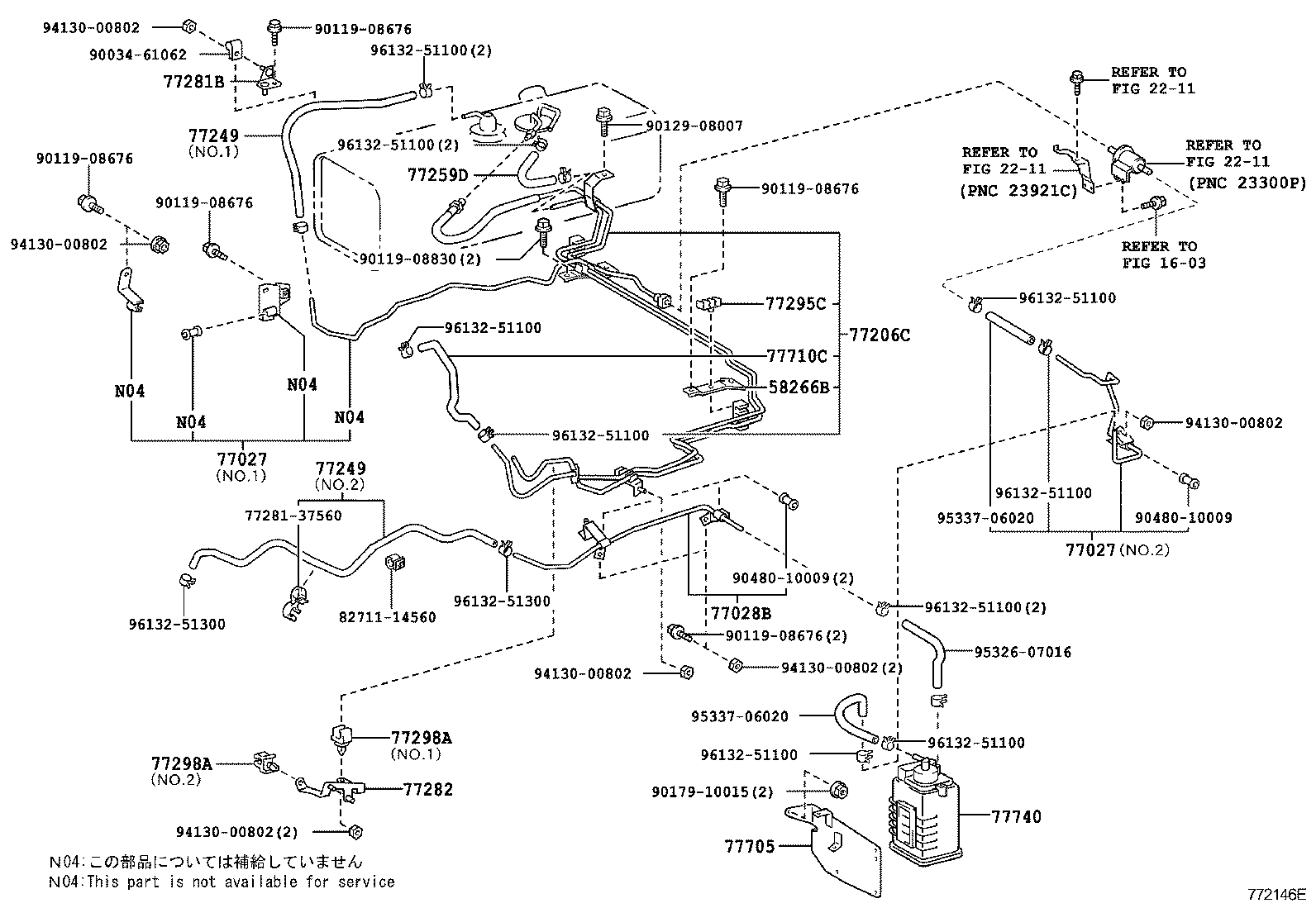

FUEL TANK TUBE

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ ILLUST NO. 3 OF 3(0705- )TRU300..T4..20T

DYNA TOYOACE | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 58266B - BRACKET, FUEL TUBE CLAMP 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 77028B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.3 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77249 - HOSE, FUEL EMISSION 77249 - HOSE, FUEL EMISSION 77259D - HOSE, FUEL, NO.1 ** Std Part 77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) 77282 - BRACKET, FUEL MAIN TUBE, NO.2 77295C - GROMMET, FUEL TUBE 77298A - CLAMP, FUEL TUBE, NO.4 77298A - CLAMP, FUEL TUBE, NO.4 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER 77710C - HOSE, FUEL 77740 - CANISTER ASSY, CHARCOAL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
