TOYOTA LAND CRUISER 200 202 URJ202W-GNTAK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ ILLUST NO. 2 OF 2(0709- )

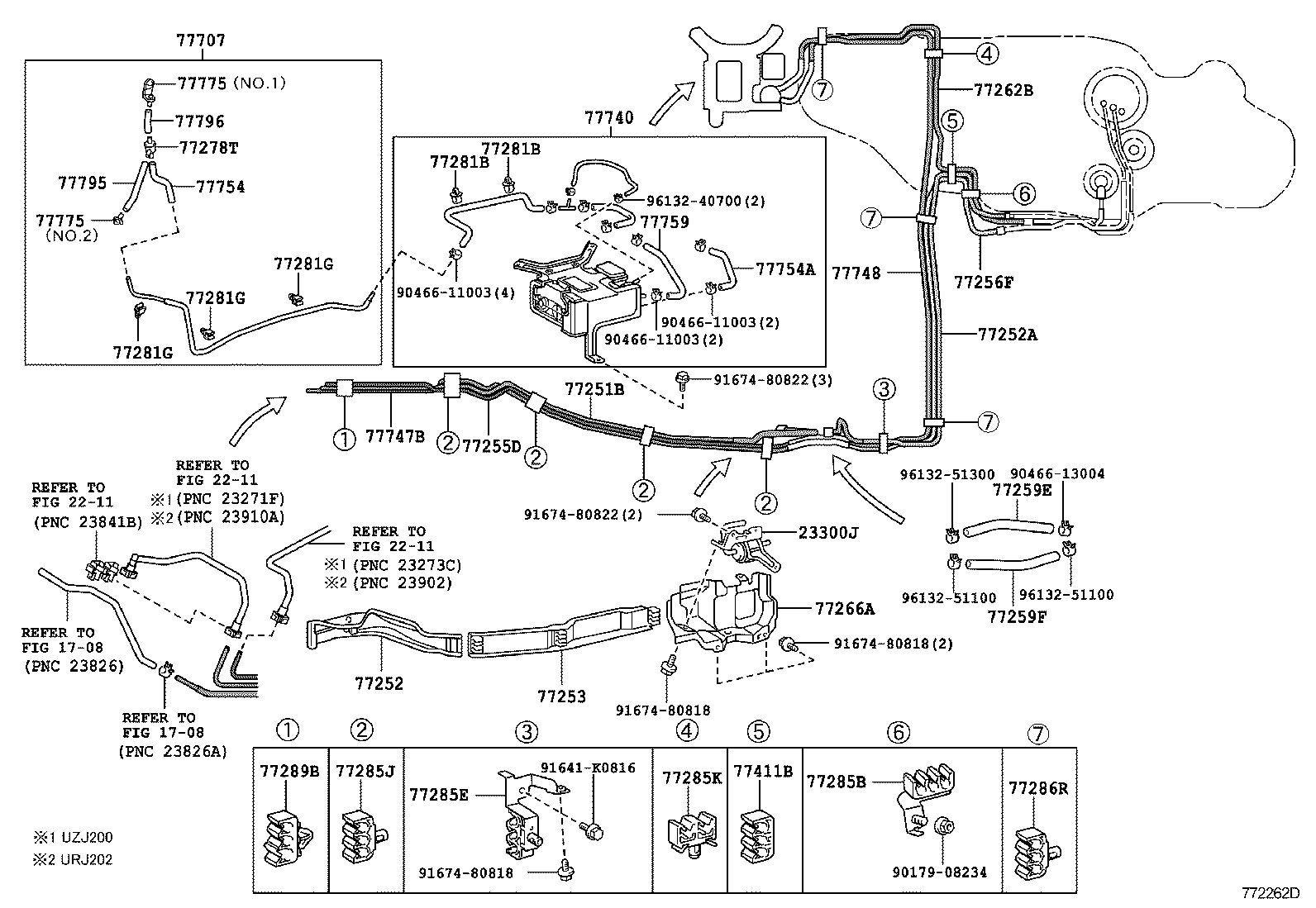

LAND CRUISER 200 202 | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 23300J - FILTER ASSY, FUEL 77251B - TUBE, FUEL MAIN 77252 - PROTECTOR, FUEL TUBE 77252A - TUBE, FUEL MAIN, NO.2 77253 - PROTECTOR, FUEL TUBE, NO.2 77255D - TUBE, FUEL RETURN 77256F - TUBE, FUEL RETURN, NO.2 77259E - HOSE, FUEL 77259F - HOSE, FUEL 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 77266A - PROTECTOR, FUEL TUBE, NO.1 77278T - VALVE, CHECK WITH HOSE 77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) 77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) 77281G - CLAMP, FUEL HOSE 77281G - CLAMP, FUEL HOSE 77281G - CLAMP, FUEL HOSE 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285J - CLAMP, FUEL TUBE, NO.1 77285K - CLAMP, FUEL TUBE, NO.1 77286R - CLAMP, FUEL TUBE, NO.10 77289B - CLAMP, FUEL TUBE, NO.3 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET 77740 - CANISTER ASSY, CHARCOAL 77747B - TUBE, CHARCOAL CANISTER, NO.1 77748 - PIPE, CHARCOAL CANISTER, NO.2 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 77759 - HOSE, CHARCOAL CANISTER 77775 - GUIDE, CHARCOAL CANISTER OUTLET 77775 - GUIDE, CHARCOAL CANISTER OUTLET 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 77796 - HOSE, CHARCOAL CANISTER OUTLET, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
