TOYOTA PRIUS PLUG IN LEASE ZVW35-BHXEB / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

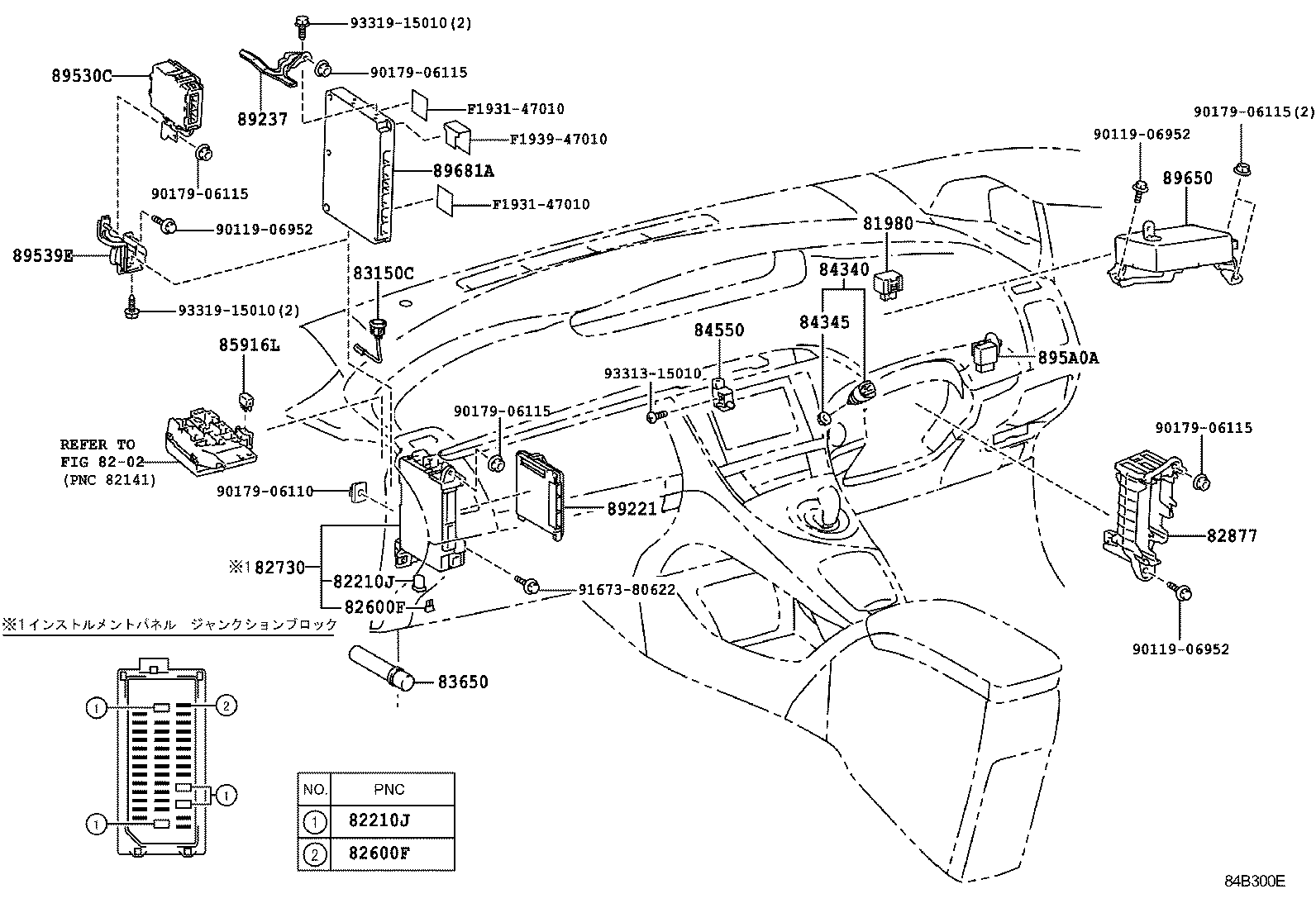

ｶｳﾙ ILLUST NO. 3 OF 6(0912- )

PRIUS PLUG IN LEASE | SWITCH RELAY COMPUTER 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 82877 - BOX, COMPUTER INTEGRATION, RH 83150C - INDICATOR ASSY 83650 - FUSEE 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84550 - SWITCH ASSY, PARKING BRAKE 85916L - RELAY, REAR FOG LAMP 89221 - COMPUTER, MULTIPLEX NETWORK BODY 89237 - BRACKET, COMPUTER UNIT 89530C - COMPUTER ASSY, TRANSMISSION CONTROL 89539E - BRACKET, COMPUTER 895A0A - COMPUTER ASSY, STOP LAMP CONTROL 89650 - COMPUTER ASSY, POWER STEERING 89681A - COMPUTER, POWER MANAGEMENT CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
