TOYOTA NOAH VOXY ZRR70G-ANXNK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

ﾘﾔ NO.1 ｼｰﾄ (RH) (0706-1004)05S

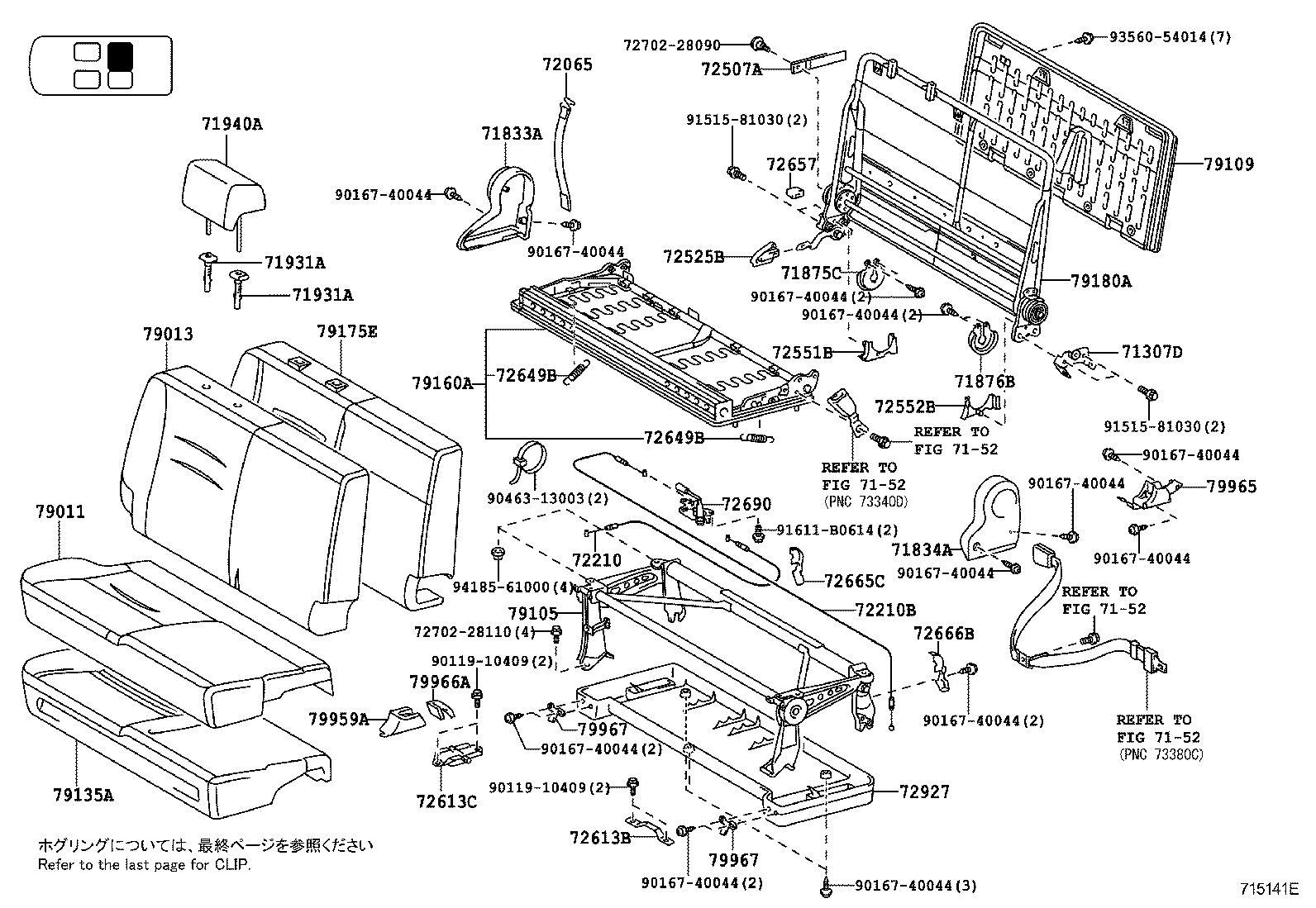

NOAH VOXY | SEAT SEAT TRACK 71307D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH 72210 - CABLE ASSY, SEAT TRACK CONTROL 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH 72507A - HANDLE SUB-ASSY, RECLINING RELEASE 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH 72551B - COVER, RECLINING HINGE, RH 72552B - COVER, RECLINING HINGE, LH 72613B - STRIKER, REAR SEAT LOCK 72613C - STRIKER, REAR SEAT LOCK 72649B - SPRING, REAR SEAT CUSHION SUPPORT 72649B - SPRING, REAR SEAT CUSHION SUPPORT 72657 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD 72665C - COVER, REAR SEAT LOCK, RH 72666B - COVER, REAR SEAT LOCK, LH 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE ** Std Part ** Std Part 72927 - COVER, REAR SEAT CUSHION UNDER, RH 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH 79105 - LEG SUB-ASSY, NO.1 SEAT, RH 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK 79135A - PAD, NO.1 SEAT CUSHION, RH 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH 79175E - PAD, NO.1 SEAT BACK, RH 79180A - SPRING ASSY, NO.1 SEAT BACK, RH 79959A - COVER, REAR SEAT LEG, RH 79965 - COVER, REAR SEAT LEG SIDE, NO.2 79966A - COVER, REAR SEAT LEG, RH(FOR RH SEAT) 79967 - COVER, REAR SEAT LEG SIDE, NO.4 79967 - COVER, REAR SEAT LEG SIDE, NO.4 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
