TOYOTA AVENSIS ZRT272W-AWXEP / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

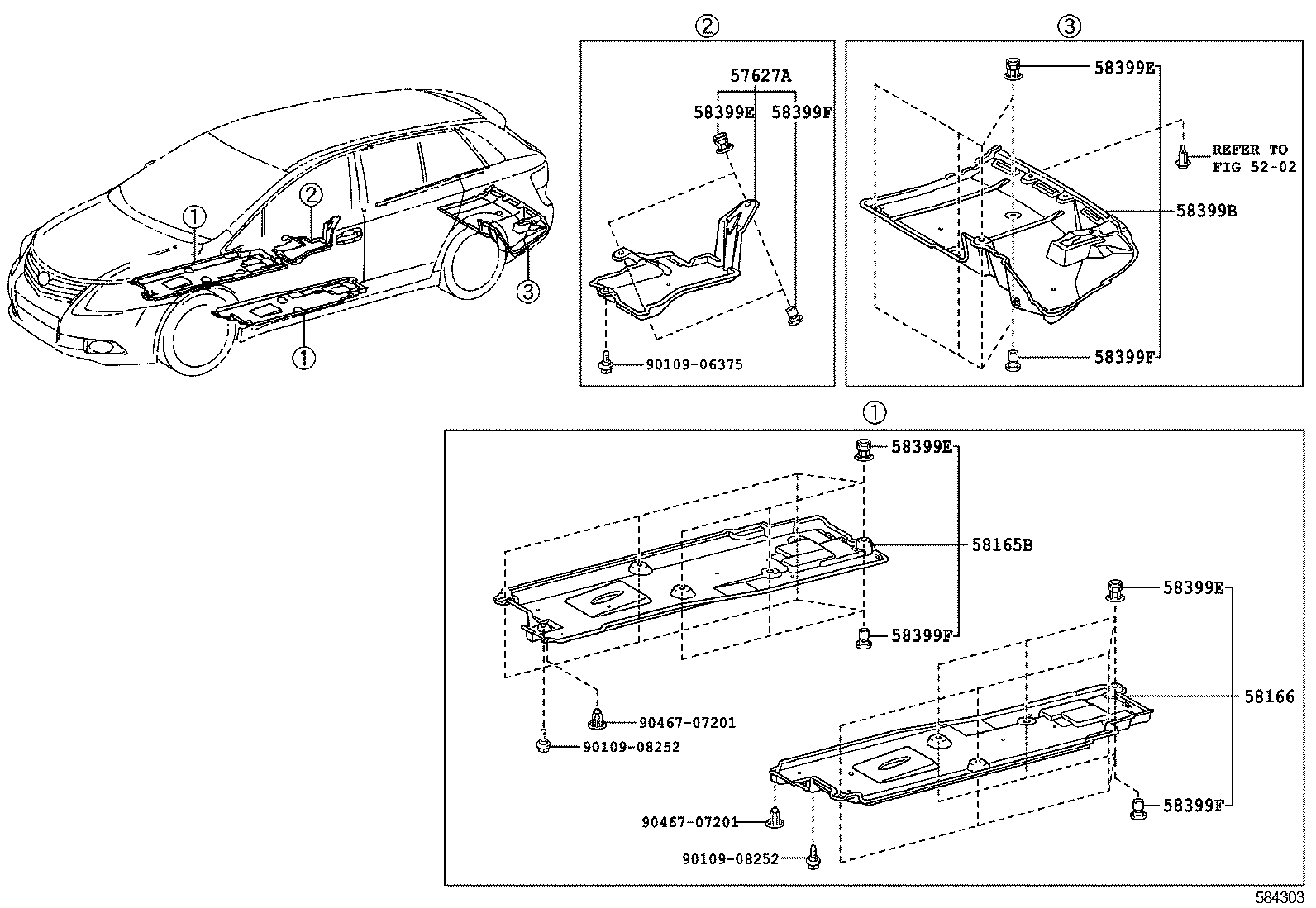

FLOOR PAN LOWER BACK PANEL

ﾌﾛｱ ｱﾝﾀﾞｶﾊﾞｰ ILLUST NO. 2 OF 2(1107- )

AVENSIS | FLOOR PAN LOWER BACK PANEL ** Refer Fig 57627A - COVER, REAR FLOOR SIDE MEMBER, RH 58165B - COVER, FRONT FLOOR, RH 58166 - COVER, FRONT FLOOR, LH 58399B - COVER, FLOOR UNDER, NO.2 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
