TOYOTA AVENSIS ZRT272W-AWXEP / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

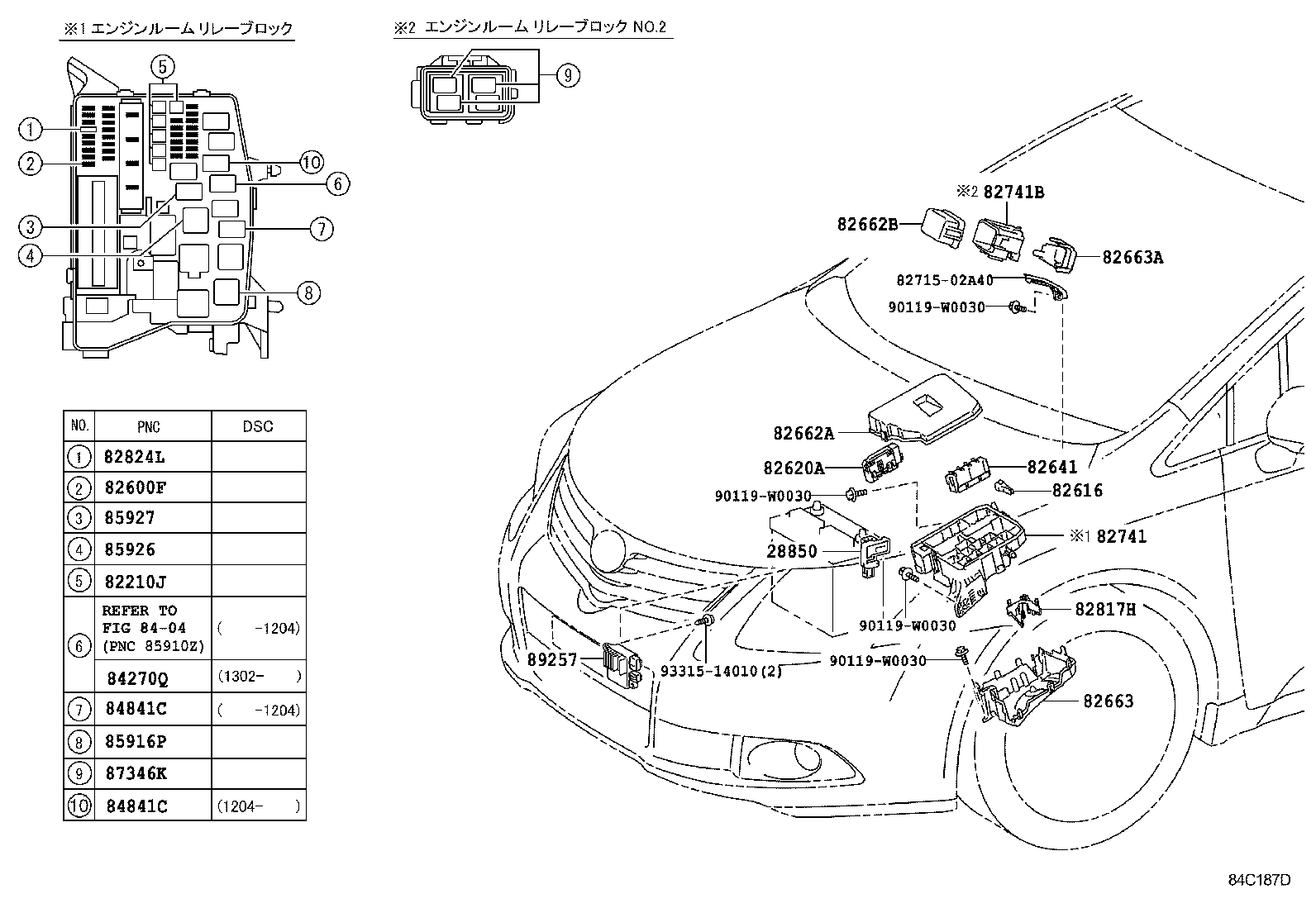

ｴﾝｼﾞﾝﾙｰﾑ ILLUST NO. 2 OF 6(1107- )

AVENSIS | SWITCH RELAY COMPUTER 28850 - SENSOR ASSY, BATTERY CURRENT 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82641 - RELAY, INTEGRATION NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 ** Std Part 82741 - BLOCK, ENGINE ROOM RELAY 82741B - BLOCK, ENGINE ROOM RELAY 82817H - PROTECTOR, WIRING HARNESS 82824L - PIN, SHORT ** Refer Fig 84270Q - RELAY, LAMP CUT 84841C - RELAY, FUEL LID OPENER 84841C - RELAY, FUEL LID OPENER 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 87346K - RELAY, PTC HEATER 89257 - COMPUTER, COOLING FAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
