TOYOTA DYNA TOYOACE BZU600-TQMMP / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

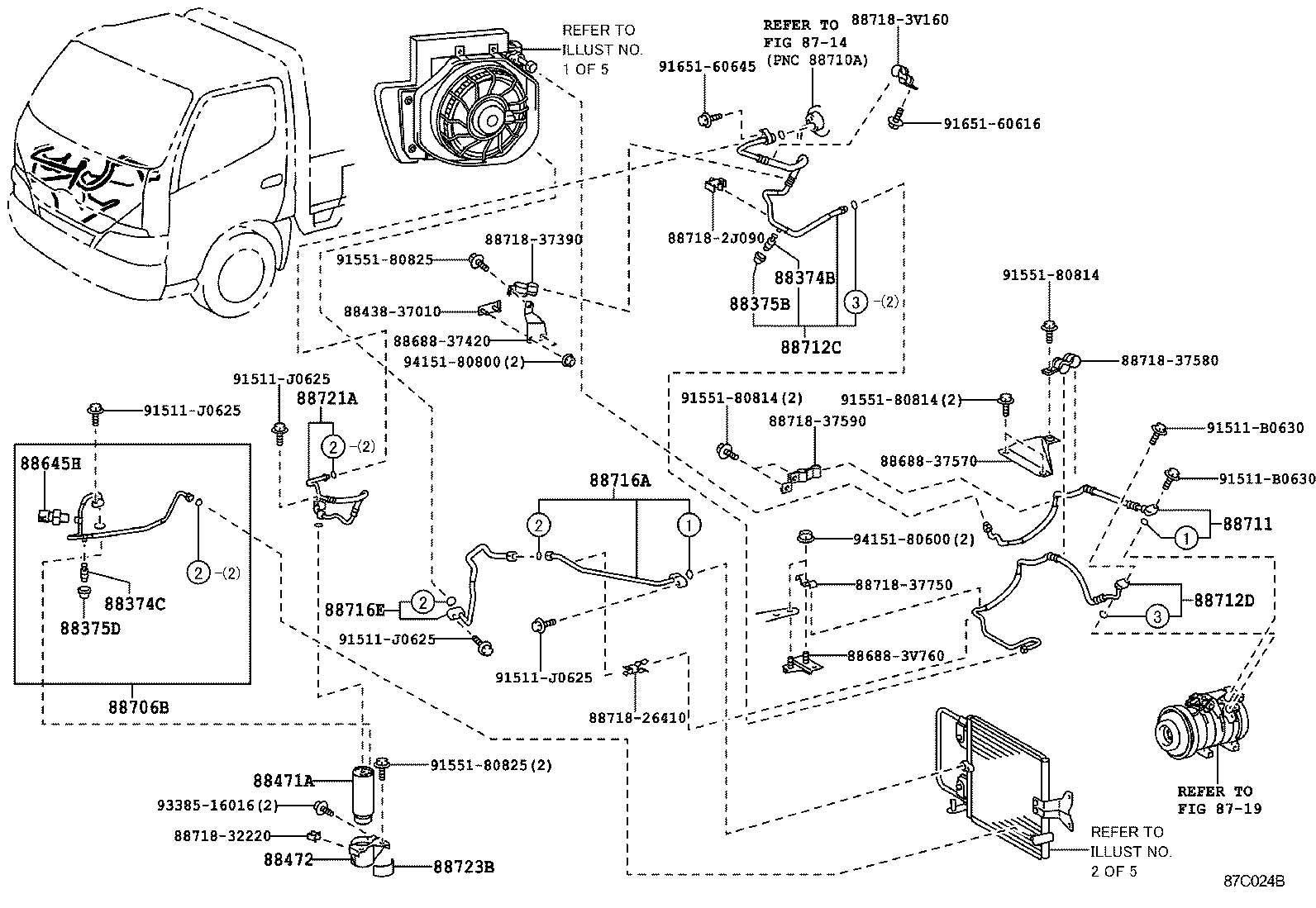

ｸｰﾗﾊｲｶﾝ ILLUST NO. 3 OF 5(1107- )BZU600

DYNA TOYOACE | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 ** Std Part 88471A - TANK, RECEIVER 88472 - BRACKET, RECEIVER TANK, NO.1 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part ** Std Part 88706B - TUBE SUB-ASSY, LIQUID, B 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712C - HOSE, SUCTION 88712D - HOSE, SUCTION 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716E - PIPE, COOLER REFRIGERANT LIQUID, E ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88721A - HOSE, LIQUID, A 88723B - LABEL, COOLER SERVICE CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
