TOYOTA DYNA TOYOACE XZU304H-PKMQD4 / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

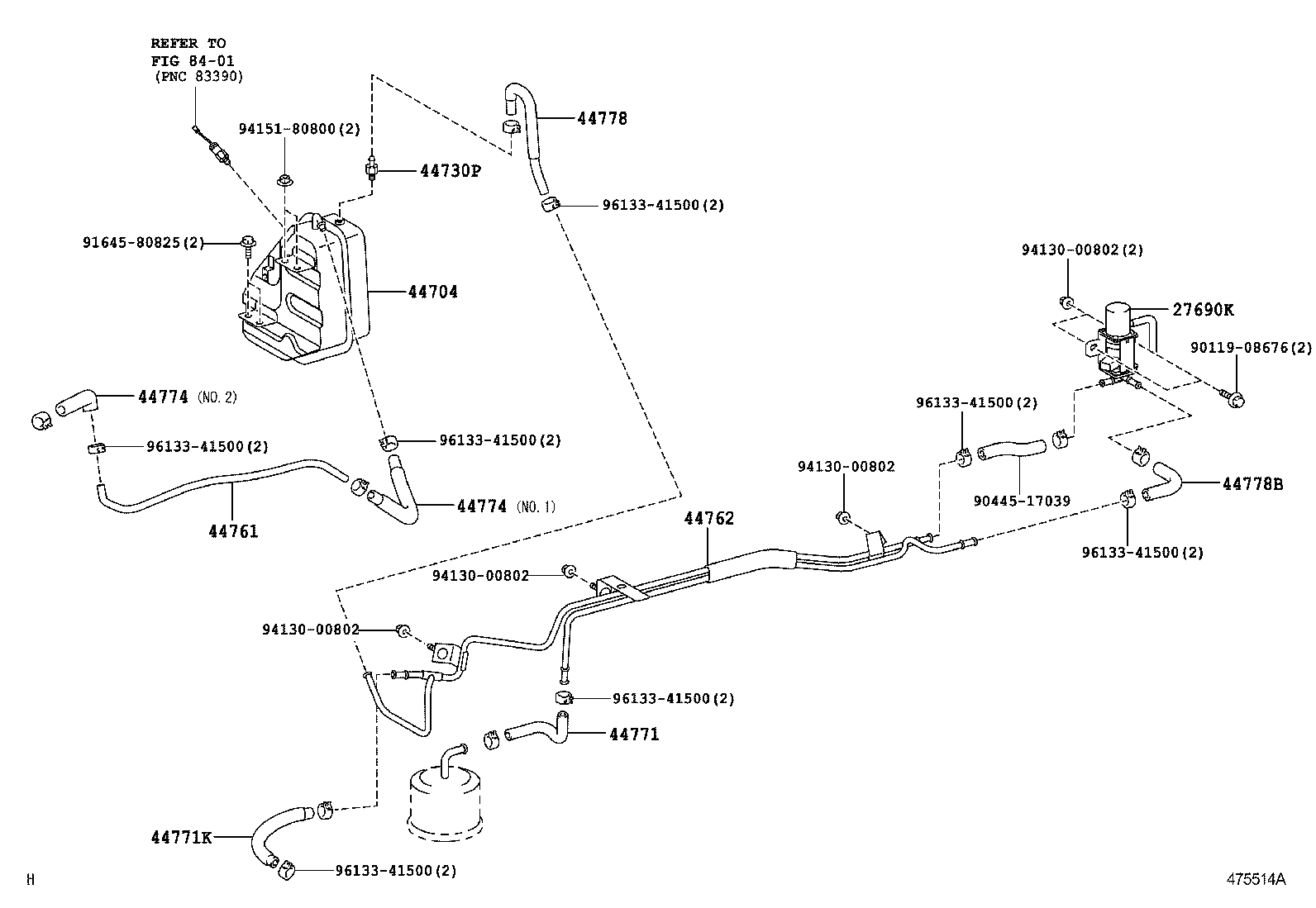

BRAKE BOOSTER VACUUM TUBE

ILLUST NO. 2 OF 2(0610- )XZU304,334..IV4

DYNA TOYOACE | BRAKE BOOSTER VACUUM TUBE 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) 44704 - RESERVOIR SUB-ASSY, VACUUM 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR 44762 - TUBE, BOOSTER VACUUM 44771 - HOSE, VACUUM TUBE CONNECTOR 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP 44774 - HOSE, UNION TO CONNECTOR TUBE 44774 - HOSE, UNION TO CONNECTOR TUBE 44778 - HOSE, CONNECTOR TO CHECK VALVE 44778B - HOSE, WAY TO CHECK VALVE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
