TOYOTA ISIS ZGM11G-AWXEP / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

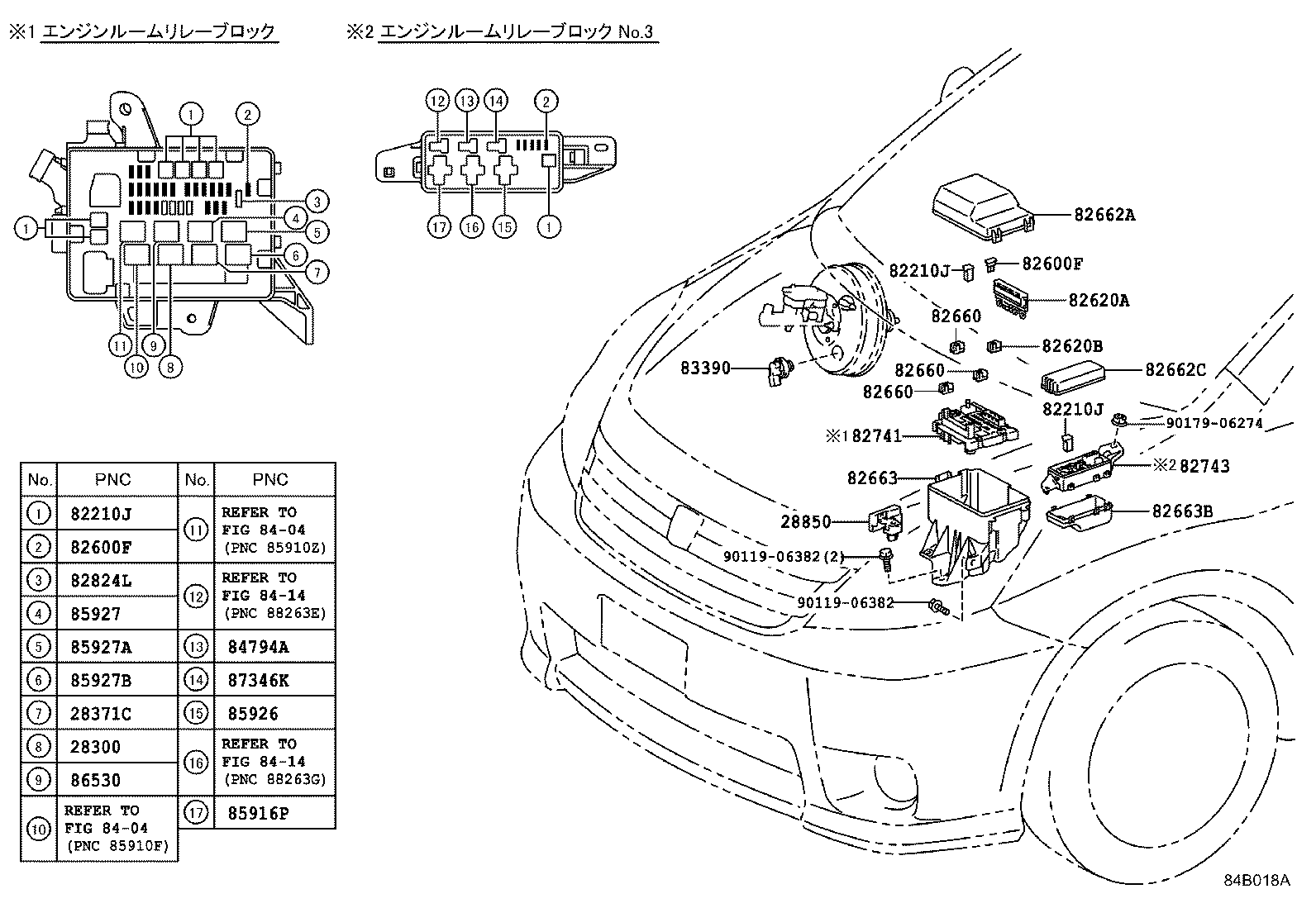

ｴﾝｼﾞﾝﾙｰﾑ ILLUST NO. 3 OF 7(0909- )

ISIS | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28371C - RELAY, IGNITION, NO.2 28850 - SENSOR ASSY, BATTERY CURRENT 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82620A - BLOCK ASSY, FUSIBLE LINK 82620B - BLOCK ASSY, FUSIBLE LINK 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82663 - COVER, RELAY BLOCK, LOWER 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82741 - BLOCK, ENGINE ROOM RELAY 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 82824L - PIN, SHORT 83390 - SWITCH ASSY, VACUUM WARNING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 84794A - RELAY, FR WIPER DEICER 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 86530 - RELAY ASSY, HORN 87346K - RELAY, PTC HEATER ** Std Part ** Std Part ** Std Part
