TOYOTA 86 ZN6-A2B8 / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

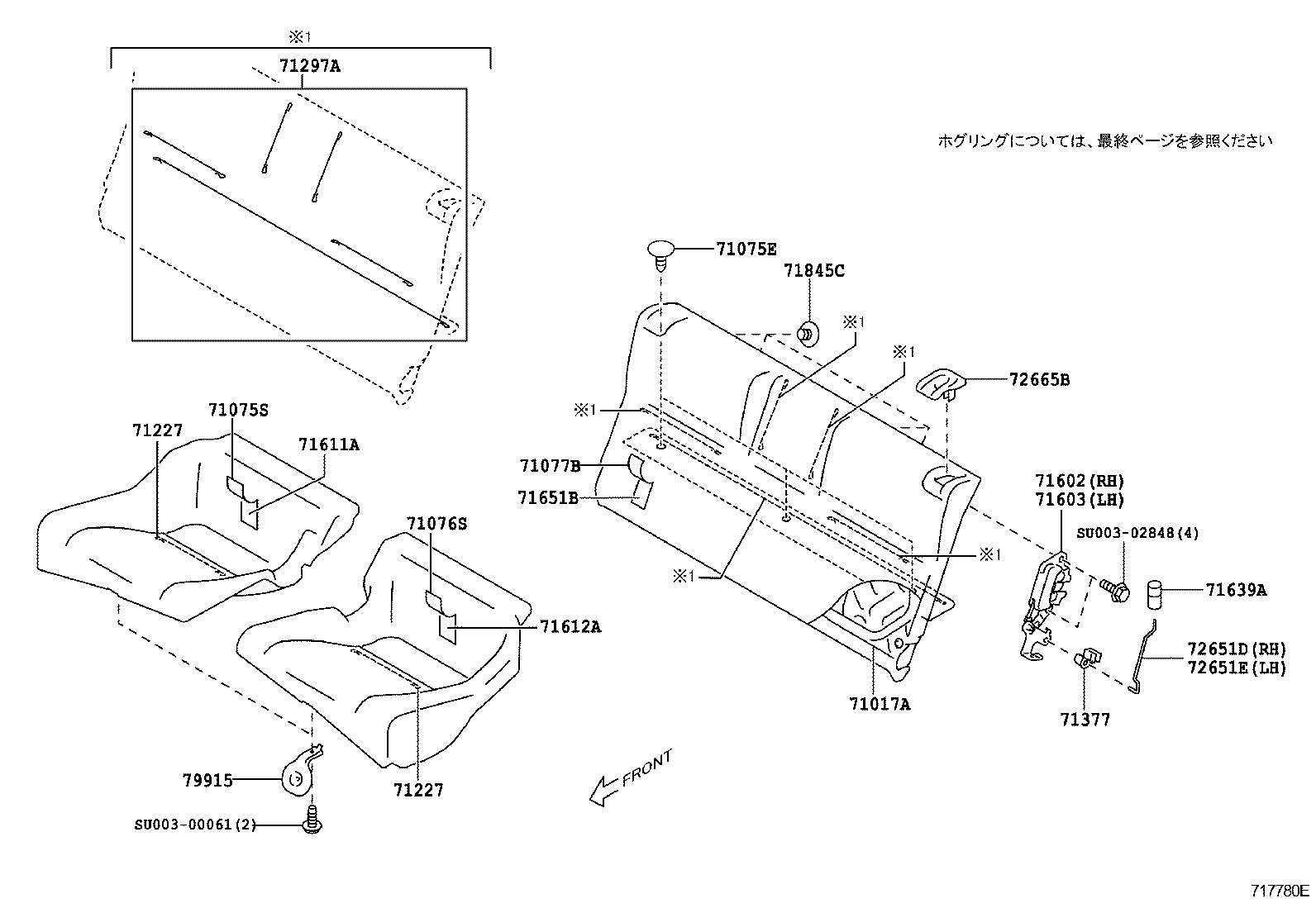

REAR SEAT SEAT TRACK

シートバック & クッション ILLUST NO. 2 OF 3(1203- )

 86 |  REAR SEAT SEAT TRACK 71017A - FRAME SUB-ASSY, REAR SEAT BACK 71075E - CLIP(FOR REAR SEAT) 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) 71227 - WIRE, REAR SEAT CUSHION COVER SET 71227 - WIRE, REAR SEAT CUSHION COVER SET 71297A - WIRE, REAR SEAT BACK 71377 - GUIDE, CONTROL LEVER 71602 - LOCK SUB-ASSY, REAR SEAT BACK, RH 71603 - LOCK SUB-ASSY, REAR SEAT BACK, LH 71611A - PAD, REAR SEAT CUSHION, RH 71612A - PAD, REAR SEAT CUSHION, LH 71639A - KNOB, REAR SEAT LOCK 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) 71845C - CAP, REAR SEAT COVER 72651D - ROD, REAR SEAT BACK LOCK, RH 72651E - ROD, REAR SEAT BACK LOCK, LH 72665B - COVER, REAR SEAT BACK LOCK 79915 - BRACKET, SEAT LEG  ** Std Part  ** Std Part
