TOYOTA AURIS ZRE152H-BHFEP / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

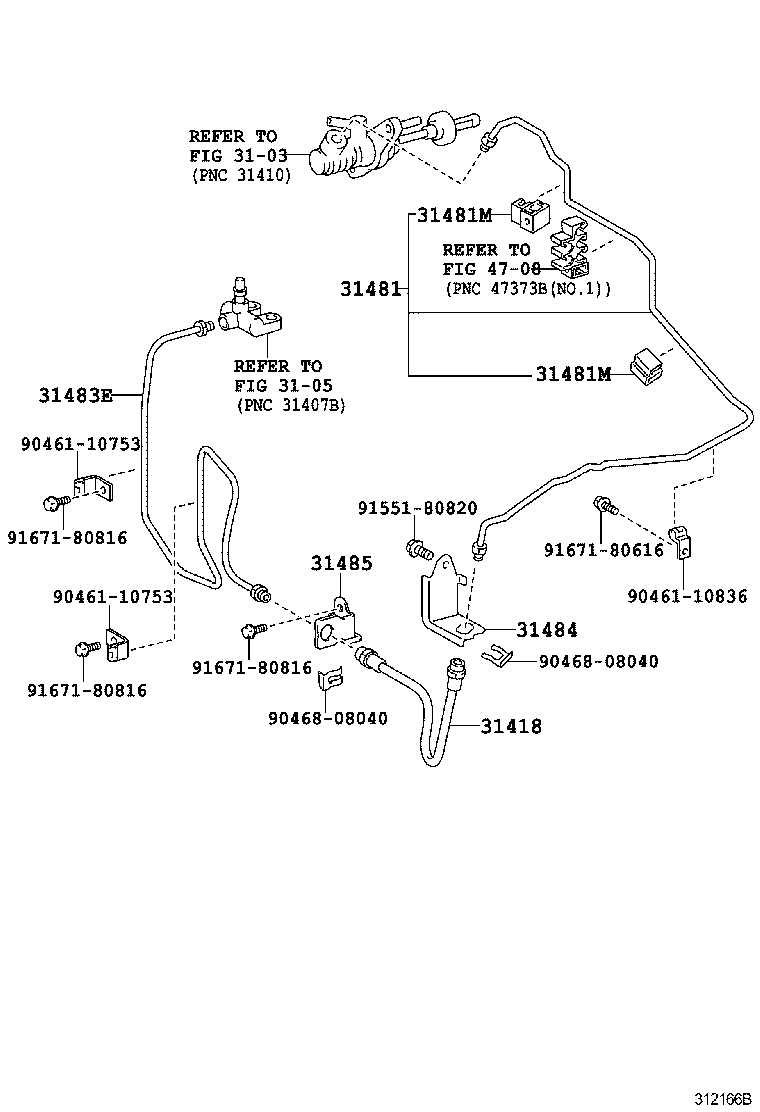

ILLUST NO. 2 OF 2(0910- )6F

AURIS | CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig 31418 - HOSE, CLUTCH 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31483E - TUBE, BLEEDER CLUTCH RELEASE 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
