TOYOTA DYNA TOYOACE XZU605-TPMQB3 / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

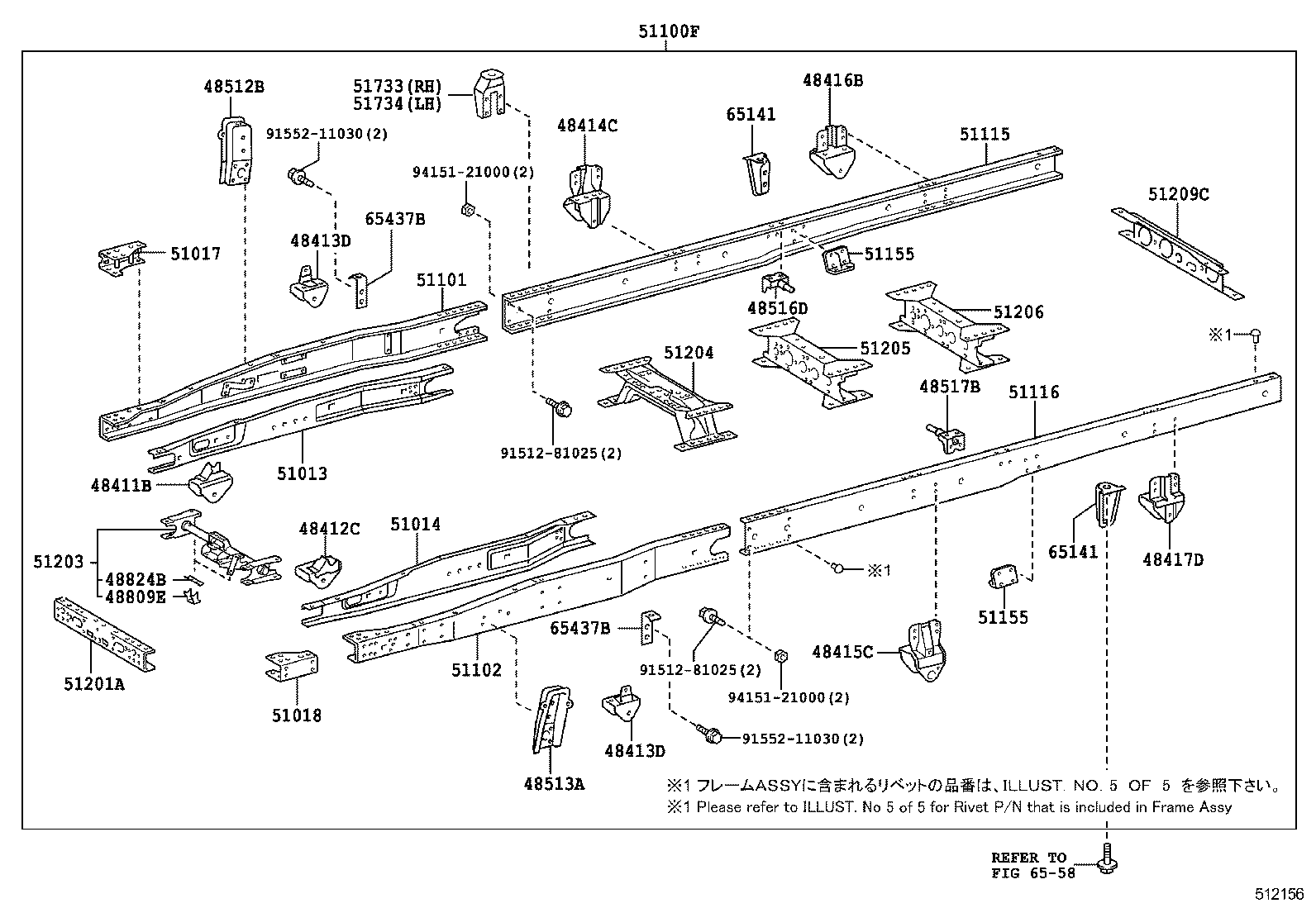

FRAME

ILLUST NO. 2 OF 5(1107- )XZC60#,XZU60#..T2,T4,T5..WT

DYNA TOYOACE | FRAME 48411B - BRACKET, SPRING, NO.1 RH 48412C - BRACKET, SPRING, NO.1 LH 48413D - BRACKET, SPRING, NO.2 48413D - BRACKET, SPRING, NO.2 48414C - BRACKET, SPRING, NO.3 RH 48415C - BRACKET, SPRING, NO.3 LH 48416B - BRACKET, SPRING, NO.4 RH 48417D - BRACKET, SPRING, NO.4 LH 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR RH 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH 48809E - BRACKET SUB-ASSY, STABILIZER 48824B - BRACKET, STABILIZER 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH 51100F - FRAME SUB-ASSY 51101 - RAIL, FRONT FRAME SIDE, RH 51102 - RAIL, FRONT FRAME SIDE, LH 51115 - RAIL, FRAME SIDE, REAR RH 51116 - RAIL, FRAME SIDE, REAR LH 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR 51733 - BRACKET, CAB REAR MOUNTING, NO.2 RH 51734 - BRACKET, CAB REAR MOUNTING, NO.2 LH 65141 - SUPPORT, MAIN SILL 65141 - SUPPORT, MAIN SILL 65437B - SUPPORT, REAR BODY GUARD FRAME 65437B - SUPPORT, REAR BODY GUARD FRAME ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
