TOYOTA DYNA TOYOACE XZU775-TQMMC3 / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

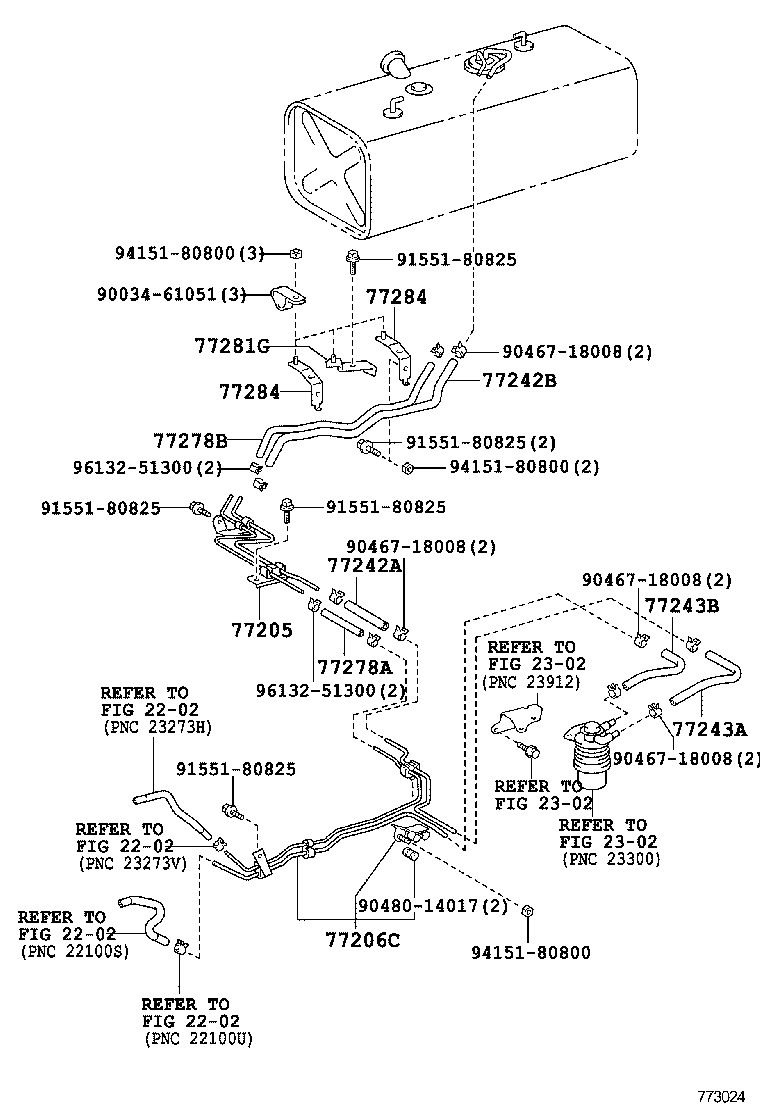

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ ILLUST NO. 3 OF 3(1108- )XZU775

DYNA TOYOACE | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77205 - TUBE SUB-ASSY, FUEL MAIN 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) 77281G - CLAMP, FUEL HOSE 77284 - CLAMP, FUEL TUBE 77284 - CLAMP, FUEL TUBE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
