TOYOTA IQ NGJ10-BGFNG / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT BUMPER BUMPER STAY

GAZOO RACING (1208-1209)6F

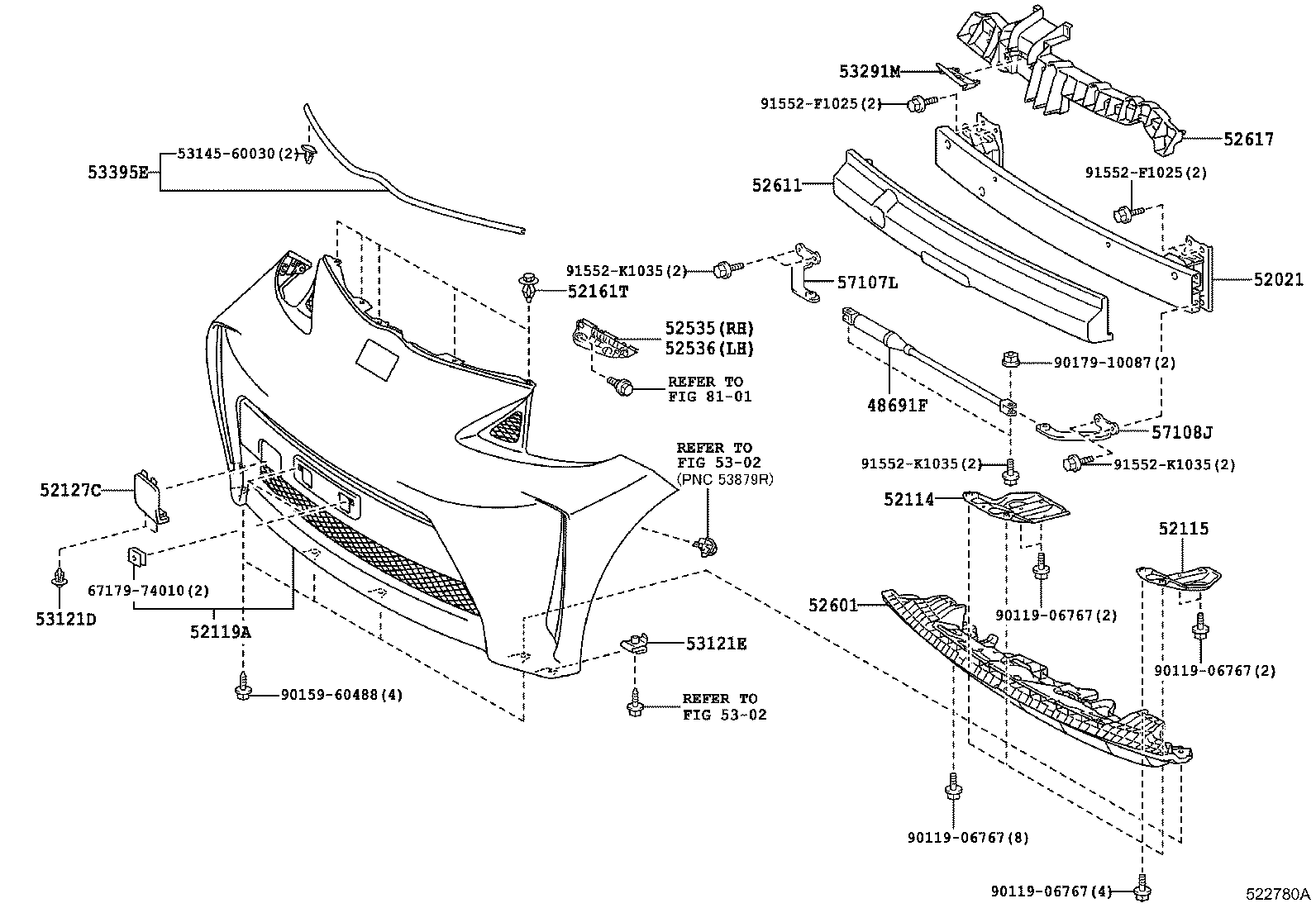

IQ | FRONT BUMPER BUMPER STAY 48691F - DAMPER, FRONT REINFORCEMENT 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52114 - GUARD, BUMPER, FRONT RH 52115 - GUARD, BUMPER, FRONT LH 52119A - COVER, FRONT BUMPER 52127C - COVER, FRONT BUMPER HOLE 52161T - PIECE, FRONT BUMPER 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY 52611 - ABSORBER, FRONT BUMPER ENERGY 52617 - ABSPRBER, RADIATOR SUPPORT, UPPER ** Refer Fig ** Refer Fig 53121D - CLIP(FOR FRONT BUMPER), NO.2 53121E - CLIP(FOR FRONT BUMPER), NO.1 ** Std Part 53291M - SEAL, RADIATOR SUPPORT TO FRAME, RH 53395E - SEAL, HOOD TO FRONT END PANEL 57107L - BRACKET, FRONT DAMPER, RH 57108J - BRACKET, FRONT DAMPER, LH ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
