TOYOTA IQ NGJ10-BGFNG / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SEAT SEAT TRACK

ｼﾞｮｼｭｾｷ,GAZOO RACING (1208-1209)6F

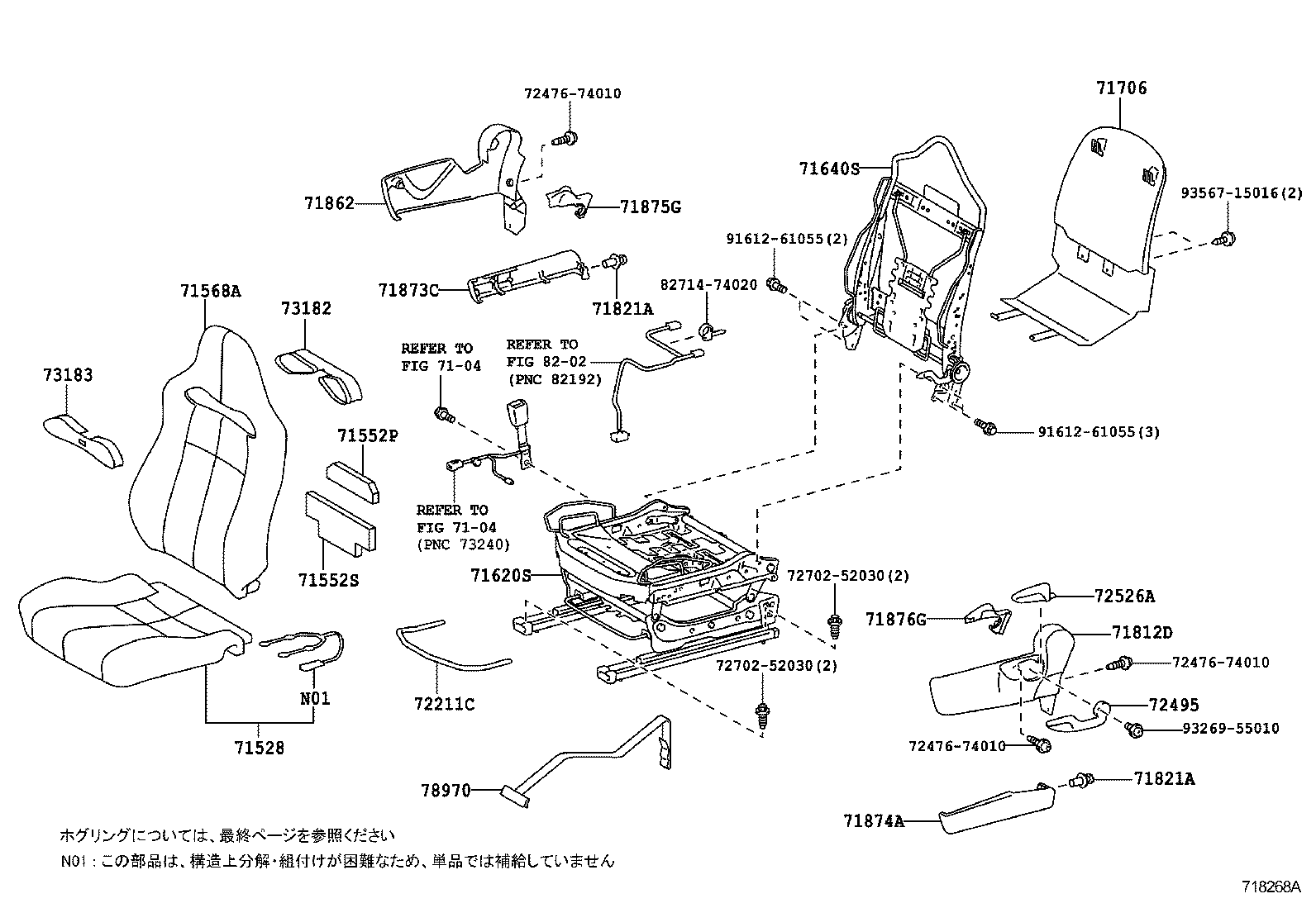

IQ | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH 71552P - PAD, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71568A - PAD, FRONT SEAT BACK W/COVER, LH 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71821A - CLIP (FOR FRONT SEAT SIDE SHIELD) 71821A - CLIP (FOR FRONT SEAT SIDE SHIELD) 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71873C - SHIELD, REAR SEAT CUSHION, LOWER RH 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) 72211C - HANDLE, SEAT TRACK ADJUSTING ** Std Part ** Std Part ** Std Part 72495 - HANDLE, VERTICAL ADJUSTING, LH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH ** Std Part ** Std Part 73182 - GUIDE, FRONT SEAT LAP BELT, OUTER 73183 - GUIDE, FRONT SEAT LAP BELT, INNER 78970 - BAND ASSY, SEAT LOCK ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
