TOYOTA IQ NGJ10-BGFNG / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

GAZOO RACING (1208-1209)1NRFE..6F

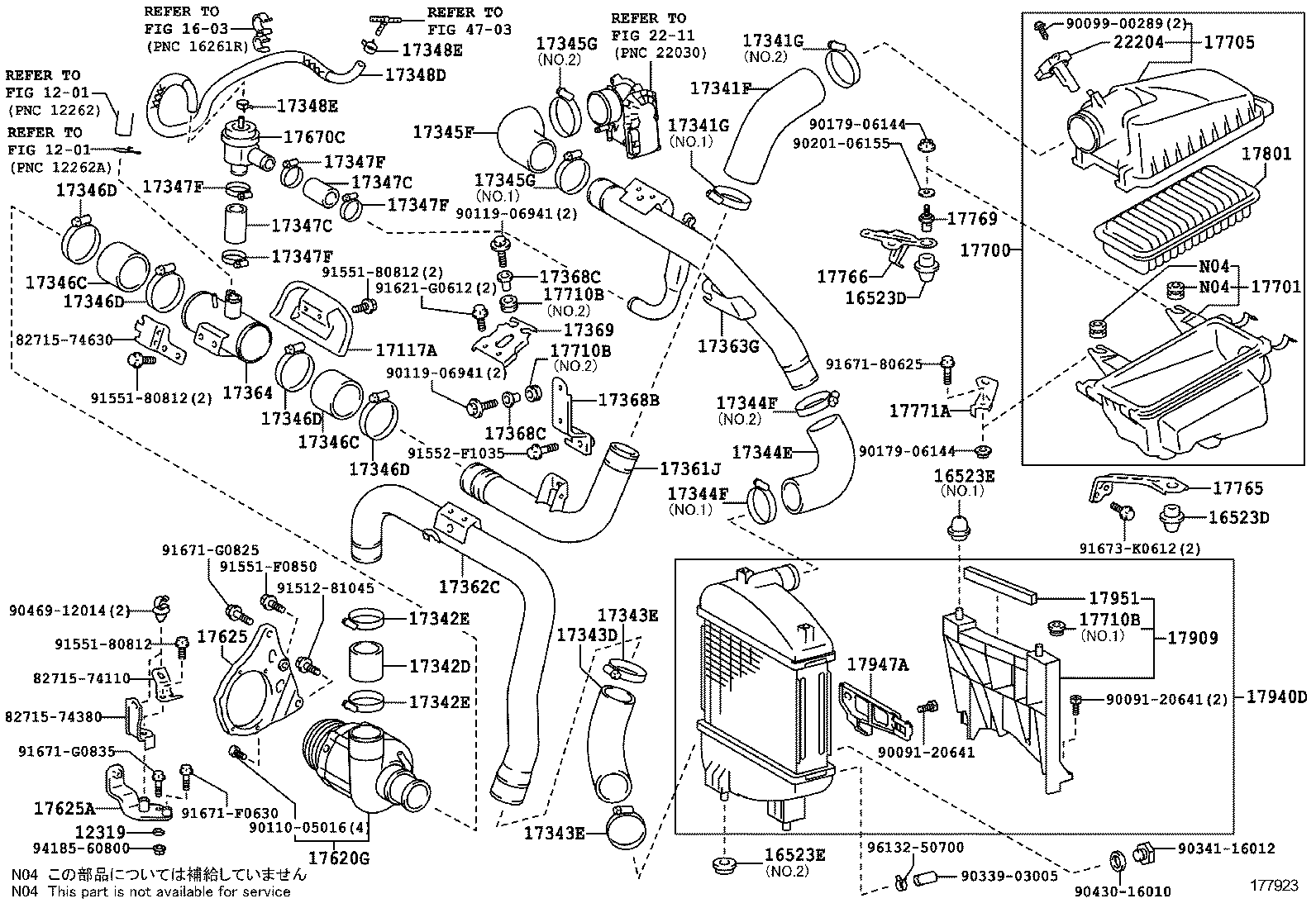

IQ | AIR CLEANER ** Refer Fig ** Refer Fig 12319 - SPACER, ENGINE FRONT SUPPORT ** Refer Fig 16523D - CUSHION, AIR CLEANER SUPPORT 16523D - CUSHION, AIR CLEANER SUPPORT 16523E - CUSHION, INTERCOOLER SUPPORT 16523E - CUSHION, INTERCOOLER SUPPORT 17117A - INSULATOR, INTAKE PIPE 17341F - HOSE, AIR, NO.1 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17342D - HOSE, AIR, NO.2 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) 17343D - HOSE, AIR, NO.3 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17344E - HOSE, AIR, NO.4 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) 17345F - HOSE, AIR, NO.5 17345G - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17345G - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17346C - HOSE, NO.6 17346C - HOSE, NO.6 17346D - CLAMP OR CLIP(FOR AIR HOSE NO.6) 17346D - CLAMP OR CLIP(FOR AIR HOSE NO.6) 17346D - CLAMP OR CLIP(FOR AIR HOSE NO.6) 17346D - CLAMP OR CLIP(FOR AIR HOSE NO.6) 17347C - HOSE, AIR, NO.7 17347C - HOSE, AIR, NO.7 17347F - CLAMP OR CLIP(FOR AIR HOSE) 17347F - CLAMP OR CLIP(FOR AIR HOSE) 17347F - CLAMP OR CLIP(FOR AIR HOSE) 17347F - CLAMP OR CLIP(FOR AIR HOSE) 17348D - HOSE, AIR, NO.8 17348E - CLAMP OR CLIP(FOR AIR HOSE, NO.8) 17348E - CLAMP OR CLIP(FOR AIR HOSE, NO.8) 17361J - TUBE, AIR, NO.1 17362C - TUBE, AIR, NO.2 17363G - TUBE, AIR, NO.3 17364 - TUBE, AIR, NO.4 17368B - SUPPORT, AIR TUBE 17368C - BUSH(FOR AIR TUBE SUPPORT) 17368C - BUSH(FOR AIR TUBE SUPPORT) 17369 - BRACKET, AIR TUBE SUPPORT 17620G - SUPERCHARGER ASSY 17625 - BRACKET, SUPERCHARGER, NO.1 17625A - BRACKET, SUPERCHARGER, NO.2 17670C - VALVE ASSY, AIR BY-PASS 17700 - CLEANER ASSY, AIR 17701 - CASE SUB-ASSY, AIR CLEANER 17705 - CAP SUB-ASSY, AIR CLEANER 17710B - GROMMET 17710B - GROMMET 17710B - GROMMET 17765 - STAY, AIR CLEANER, NO.1 17766 - STAY, AIR CLEANER, NO.2 17769 - SUPPORT, AIR CLEANER 17771A - BRACKET, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17909 - DUCT SUB-ASSY, INTERCOOLER COOLING AIR 17940D - INTERCOOLER ASSY 17947A - PLATE, INTERCOOLER 17951 - INSULATOR, INTERCOOLER ** Refer Fig 22204 - METER SUB-ASSY, INTAKE AIR FLOW ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
