TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

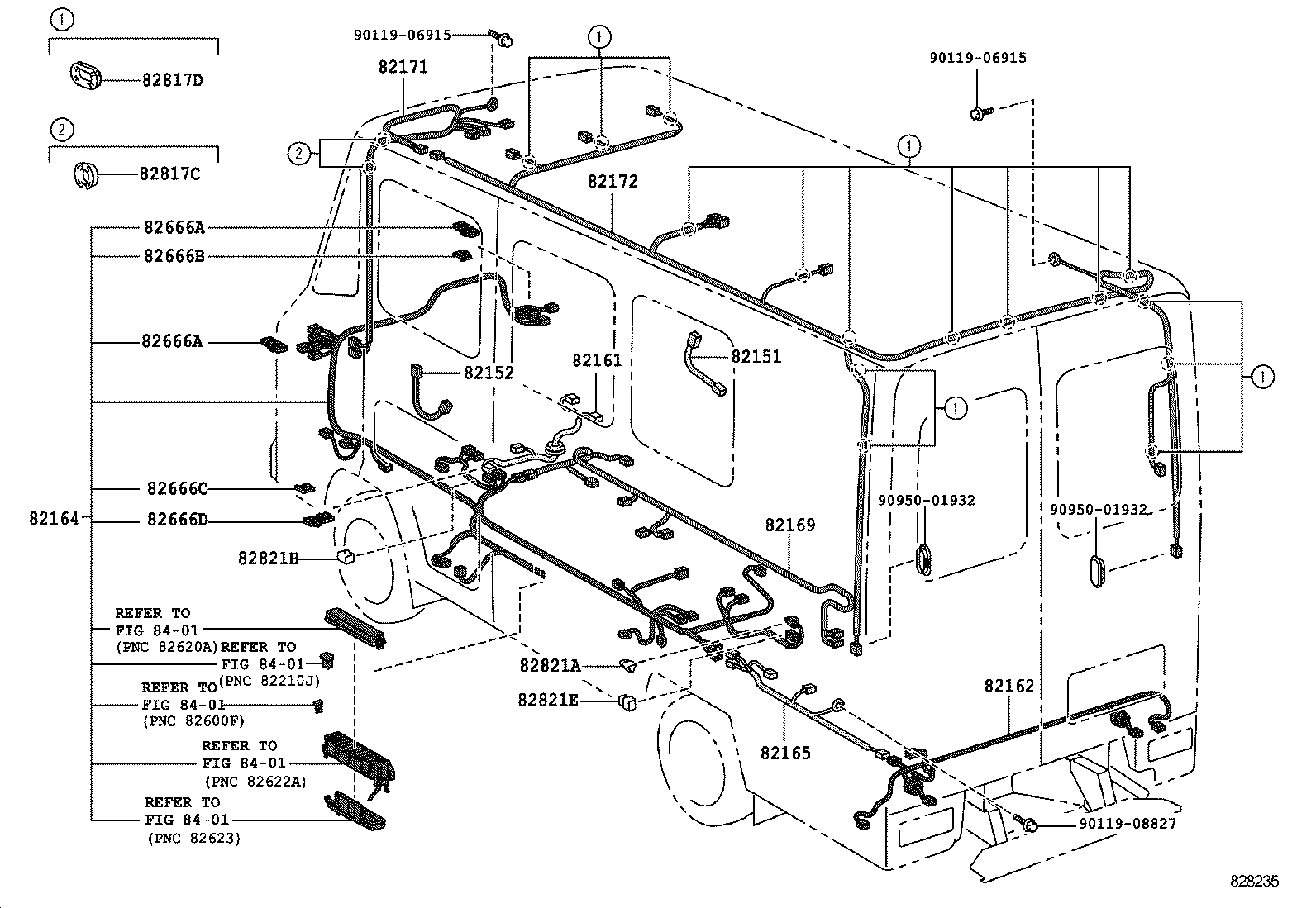

WIRING CLAMP

ﾙｰﾌ,ﾄﾞｱ,ﾌﾚｰﾑ & ﾌﾛｱ ILLUST NO. 3 OF 6(1203- )

QUICK DELIVERY 200 | WIRING CLAMP 82151 - WIRE, FRONT DOOR, RH 82152 - WIRE, FRONT DOOR, LH 82161 - WIRE, FLOOR 82162 - WIRE, FLOOR, NO.2 82164 - WIRE, FRAME 82165 - WIRE, FRAME, NO.2 82169 - WIRE FRAME, NO.3 82171 - WIRE, ROOF, NO.1 82172 - WIRE, ROOF, NO.2 82666A - HOLDER, CONNECTOR NO.2 82666A - HOLDER, CONNECTOR NO.2 82666B - HOLDER, CONNECTOR NO.3 82666C - HOLDER, CONNECTOR NO.4 82666D - HOLDER, CONNECTOR NO.5 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817D - PROTECTOR, WIRING HARNESS, NO.5 82821A - COVER, CONNECTOR 82821E - COVER, CONNECTOR 82821H - COVER, CONNECTOR ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
