TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / POWERTRAIN-CHASSIS / REAR AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

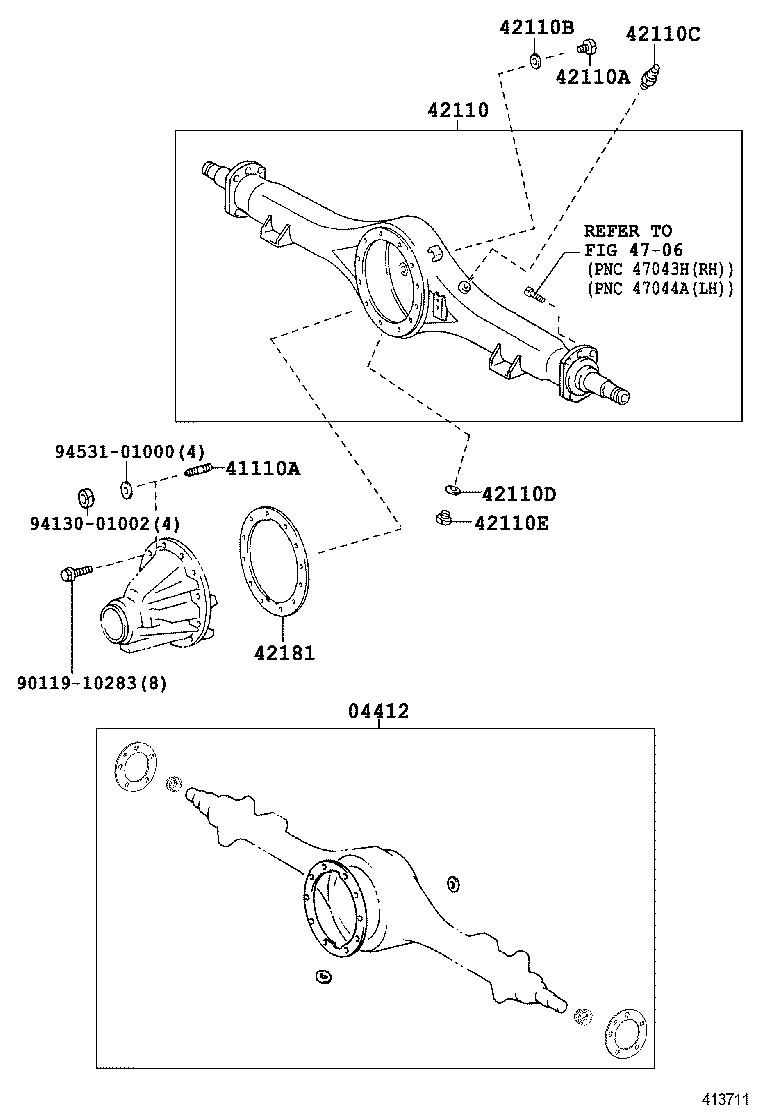

REAR AXLE HOUSING DIFFERENTIAL

ILLUST NO. 2 OF 2(1203- )

QUICK DELIVERY 200 | REAR AXLE HOUSING DIFFERENTIAL 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) 42110 - HOUSING ASSY, REAR AXLE 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) 42181 - GASKET, REAR DIFFERENTIAL CARRIER ** Refer Fig ** Std Part ** Std Part ** Std Part
