TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

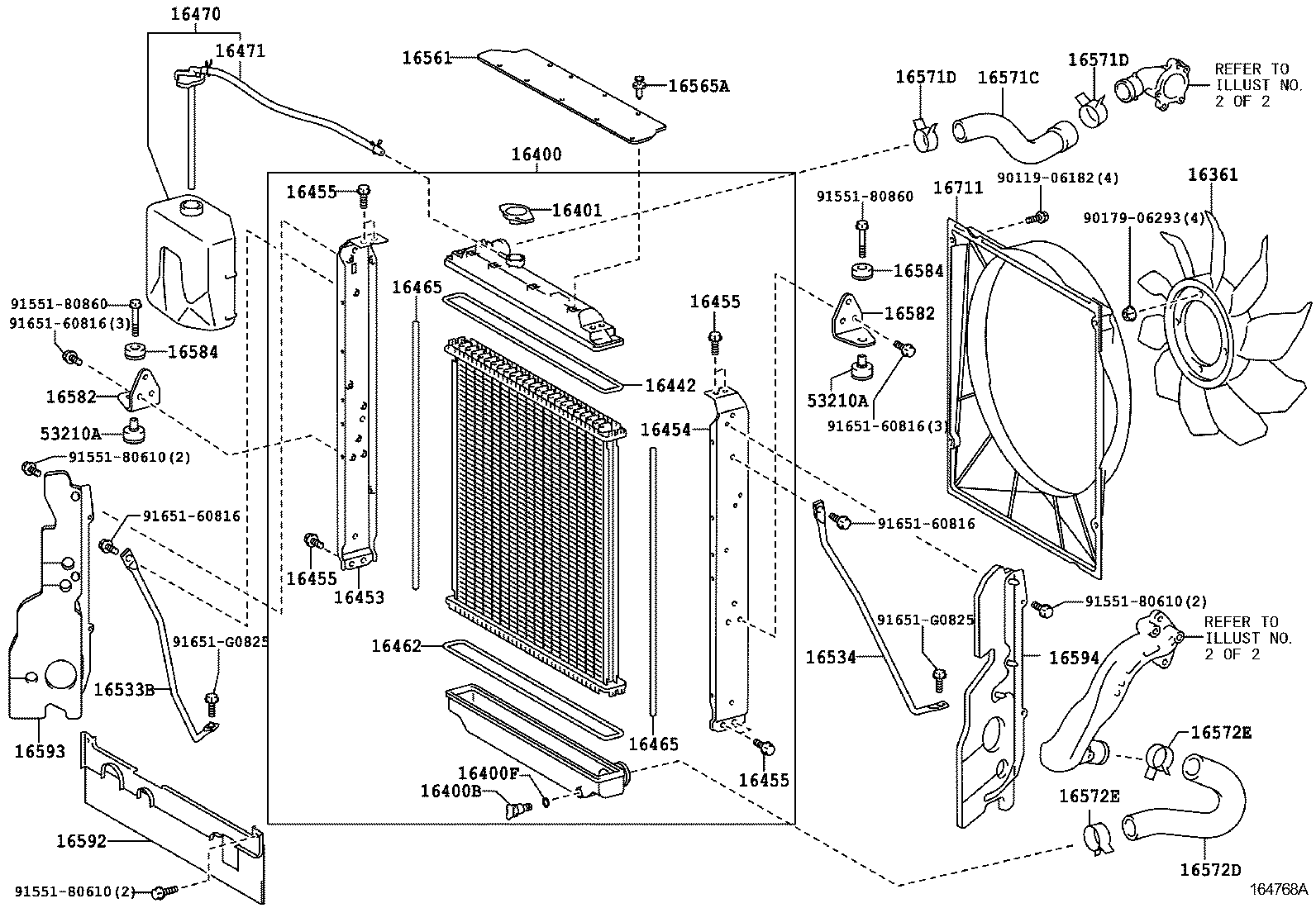

ILLUST NO. 1 OF 2(1203- )

QUICK DELIVERY 200 | RADIATOR WATER OUTLET 16361 - FAN 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16442 - RING, O(FOR RADIATOR UPPER TANK) 16453 - PLATE, RADIATOR SIDE 16454 - PLATE, RADIATOR SIDE 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE 16462 - RING, O(FOR RADIATOR LOWER TANK) 16465 - PACKING, RADIATOR 16465 - PACKING, RADIATOR 16470 - TANK ASSY, RADIATOR RESERVE 16471 - CAP SUB-ASSY, RESERVE TANK 16533B - SUPPORT, RADIATOR, NO.1 16534 - SUPPORT, RADIATOR, NO.2 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16565A - CLIP 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16582 - BRACKET, RADIATOR, NO.1 16582 - BRACKET, RADIATOR, NO.1 16584 - INSULATOR, RADIATOR MOUNTING 16584 - INSULATOR, RADIATOR MOUNTING 16592 - GUIDE, RADIATOR AIR, NO.3 16593 - GUIDE, RADIATOR AIR, NO.1 16594 - GUIDE, RADIATOR AIR, NO.2 16711 - SHROUD, FAN 53210A - SUPPORT ASSY, RADIATOR 53210A - SUPPORT ASSY, RADIATOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
