TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

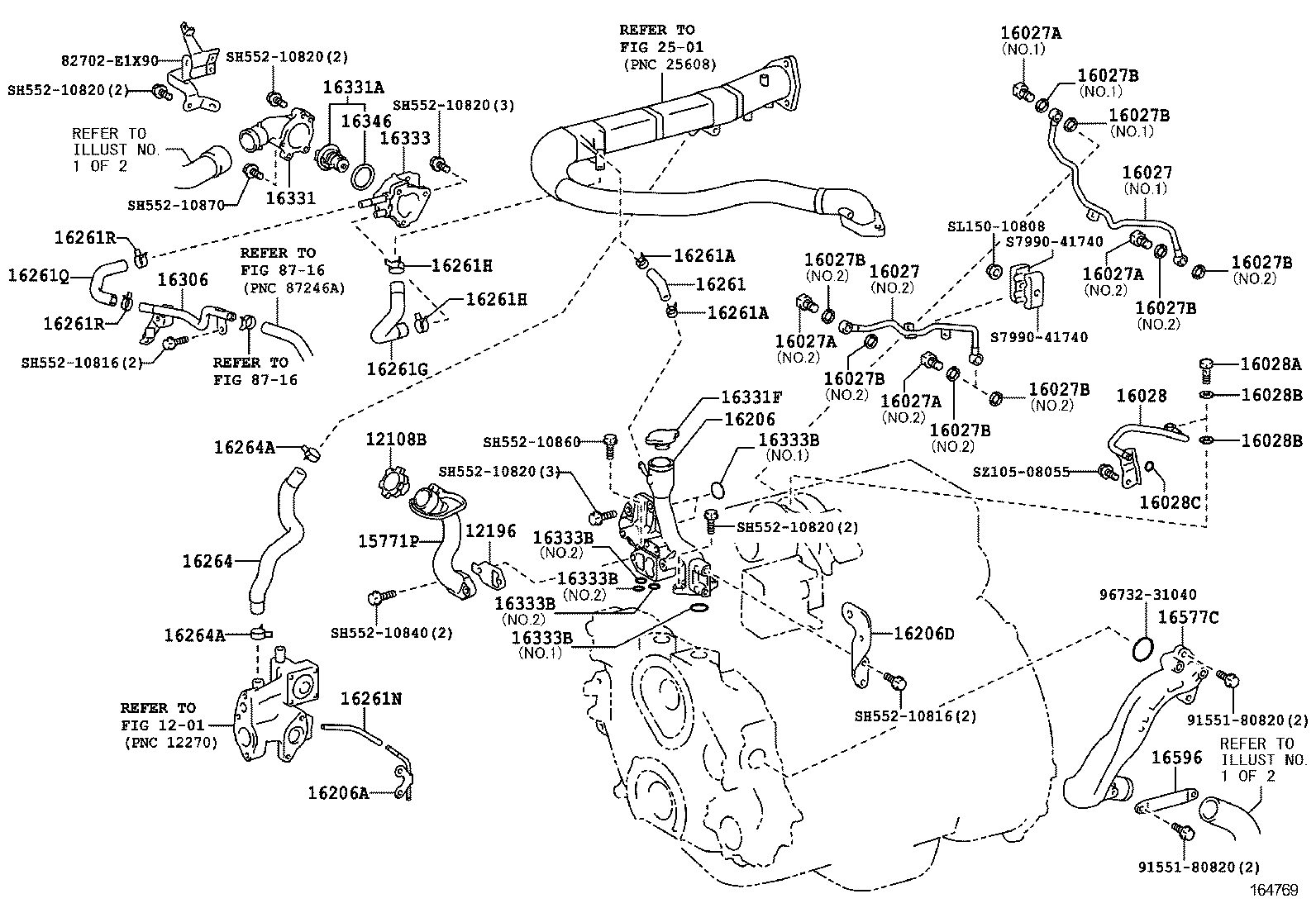

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(1203- )

QUICK DELIVERY 200 | RADIATOR WATER OUTLET ** Refer Fig 12108B - CAP SUB-ASSY, OIL FILLER 12196 - GASKET, OIL FILLER CAP HOUSING 15771P - PIPE, OIL, NO.1 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16027A - BOLT, UNION(FOR TURBO WATER PIPE) 16027A - BOLT, UNION(FOR TURBO WATER PIPE) 16027A - BOLT, UNION(FOR TURBO WATER PIPE) 16027A - BOLT, UNION(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) 16028B - GASKET(FOR TURBO WATER PIPE NO.2) 16028B - GASKET(FOR TURBO WATER PIPE NO.2) 16028C - RING, O(FOR TURBO WATER PIPE) 16206 - PIPE SUB-ASSY, WATER BY-PASS 16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2 16206D - BRACKET(FOR WATER BY-PASS PIPE) 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261G - HOSE, WATER BY-PASS, NO.1 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261N - HOSE, WATER BY-PASS, NO.2 16261Q - HOSE, WATER BY-PASS 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16306 - PIPE SUB-ASSY, WATER OUTLET 16331 - OUTLET, WATER 16331A - THERMOSTAT 16331F - CAP SUB-ASSY(FOR WATER OUTLET) 16333 - HOUSING, WATER OUTLET 16333B - RING, O(FOR WATER OUTLET HOUSING) 16333B - RING, O(FOR WATER OUTLET HOUSING) 16333B - RING, O(FOR WATER OUTLET HOUSING) 16333B - RING, O(FOR WATER OUTLET HOUSING) 16333B - RING, O(FOR WATER OUTLET HOUSING) 16346 - GASKET, THERMOSTAT 16577C - PIPE, RADIATOR 16596 - STAY, RADIATOR PIPE ** Refer Fig ** Std Part ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
