TOYOTA VITZ NCP131-AHMVK / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD

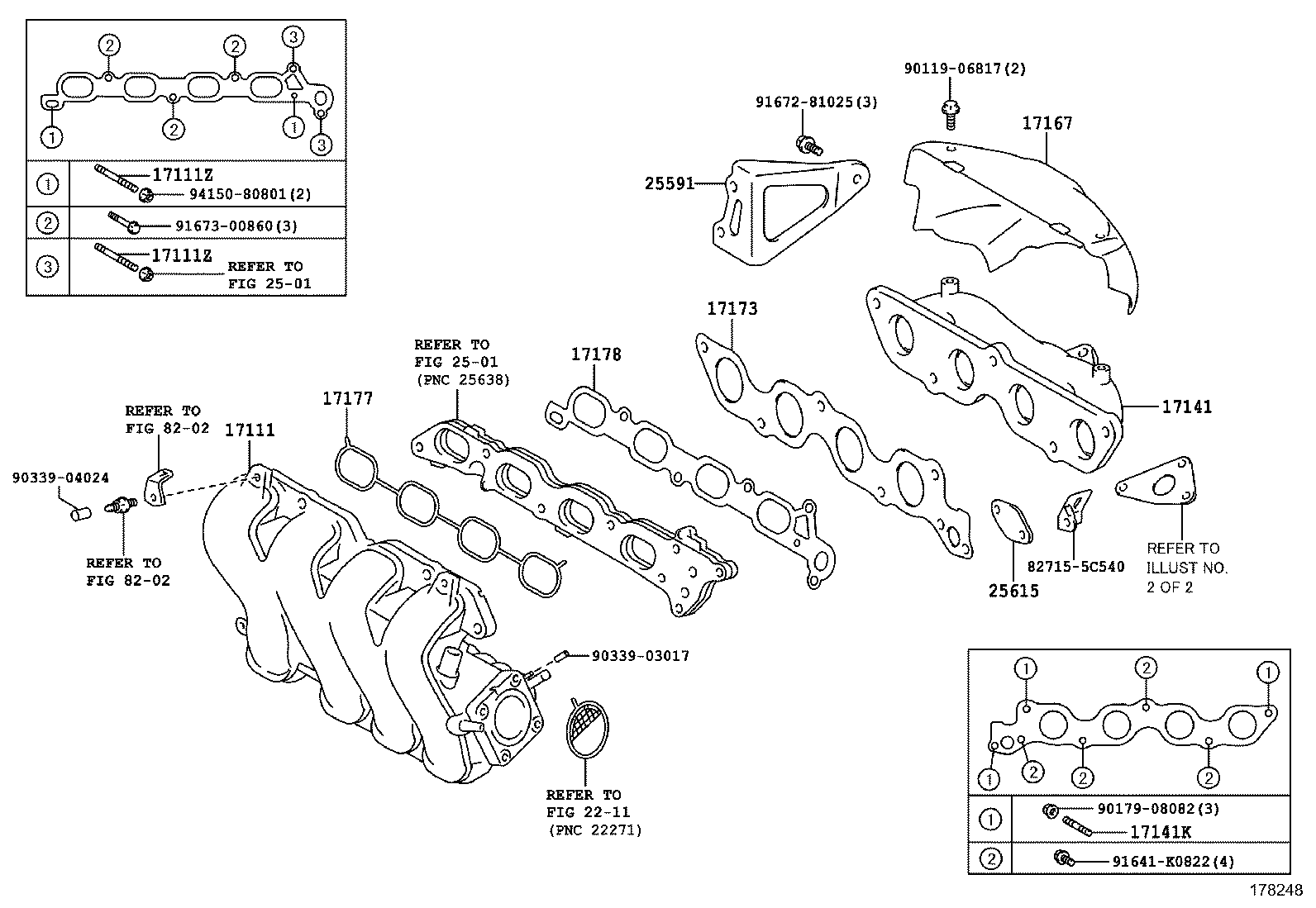

GRMN ILLUST NO. 1 OF 2(1309-1402)1NZFE..5F

VITZ | MANIFOLD 17111 - MANIFOLD, INTAKE 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 17141 - MANIFOLD, EXHAUST 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig 25591 - BRACKET, MANIFOLD SUPPORT 25615 - PLATE, EGR HOLE COVER, NO.1 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
