TOYOTA FJ CRUISER GSJ15W-GKASK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

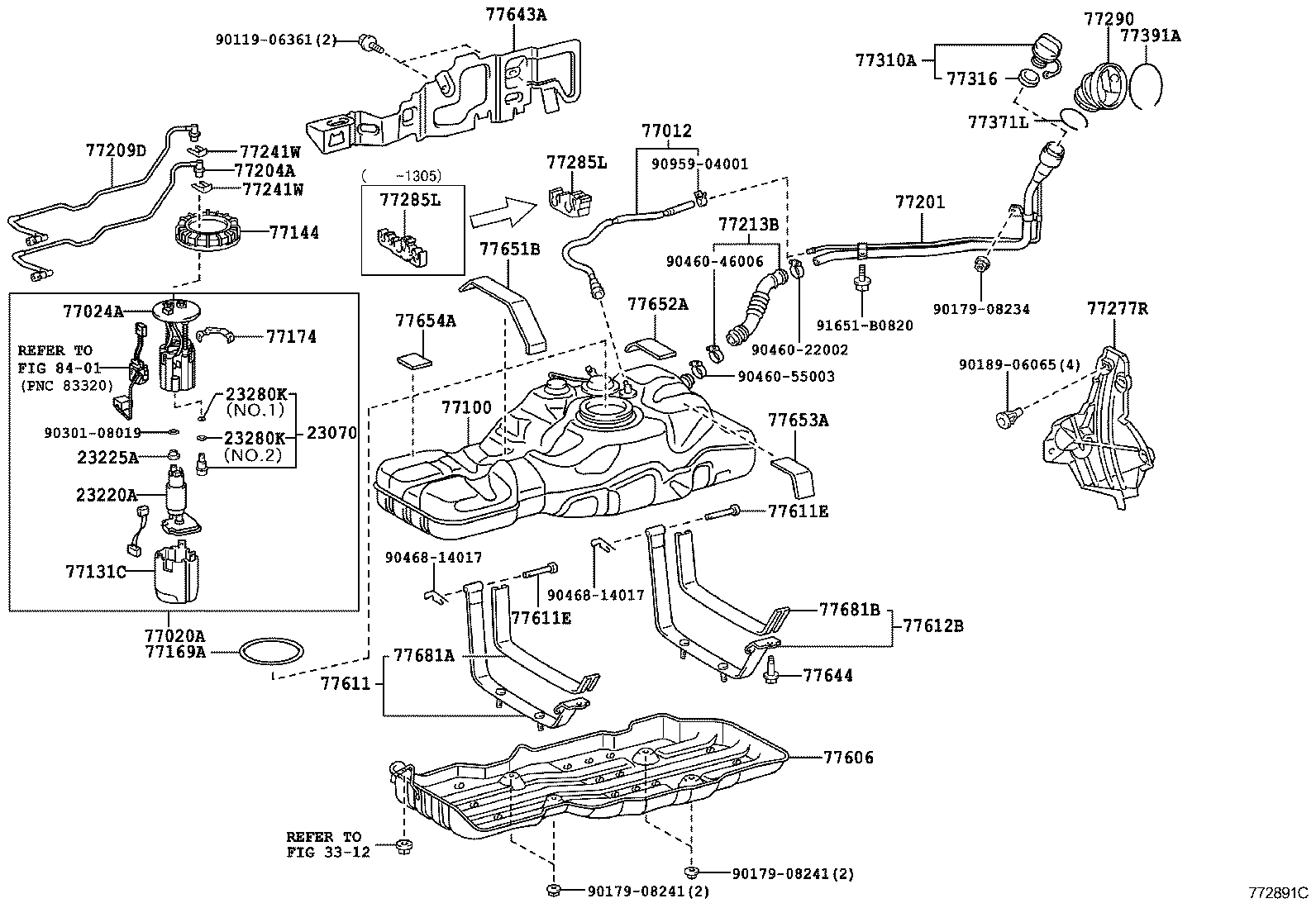

ﾌｭｰｴﾙ ﾀﾝｸ ILLUST NO. 1 OF 3(1011- )

FJ CRUISER | FUEL TANK TUBE 23070 - VALVE ASSY, FUEL MAIN 23220A - PUMP ASSY, FUEL W/FILTER 23225A - SPACER, FUEL PUMP 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) ** Refer Fig 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77100 - TANK ASSY, FUEL 77131C - SUB-TANK, FUEL, NO.1 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77204A - TUBE, FUEL TANK RETURN 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77285L - CLAMP, FUEL TUBE, NO.1 77285L - CLAMP, FUEL TUBE, NO.1 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77371L - RING, FUEL TANK FILLER PIPE SHIELD 77391A - RING, FUEL INLET BOX 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611 - BAND, FUEL TANK 77611E - PIN, FUEL TANK BAND 77611E - PIN, FUEL TANK BAND 77612B - BAND, FUEL TANK, NO.2 77643A - PROTECTOR, FUEL TANK, NO.3 77644 - BOLT, FUEL TANK 77651B - CUSHION, FUEL TANK 77652A - CUSHION, FUEL TANK, NO.2 77653A - CUSHION, FUEL TANK, NO.3 77654A - CUSHION, FUEL TANK, NO.4 77681A - SEAT, FUEL TANK BAND 77681B - SEAT, FUEL TANK BAND ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
