TOYOTA FJ CRUISER GSJ15W-GKASK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

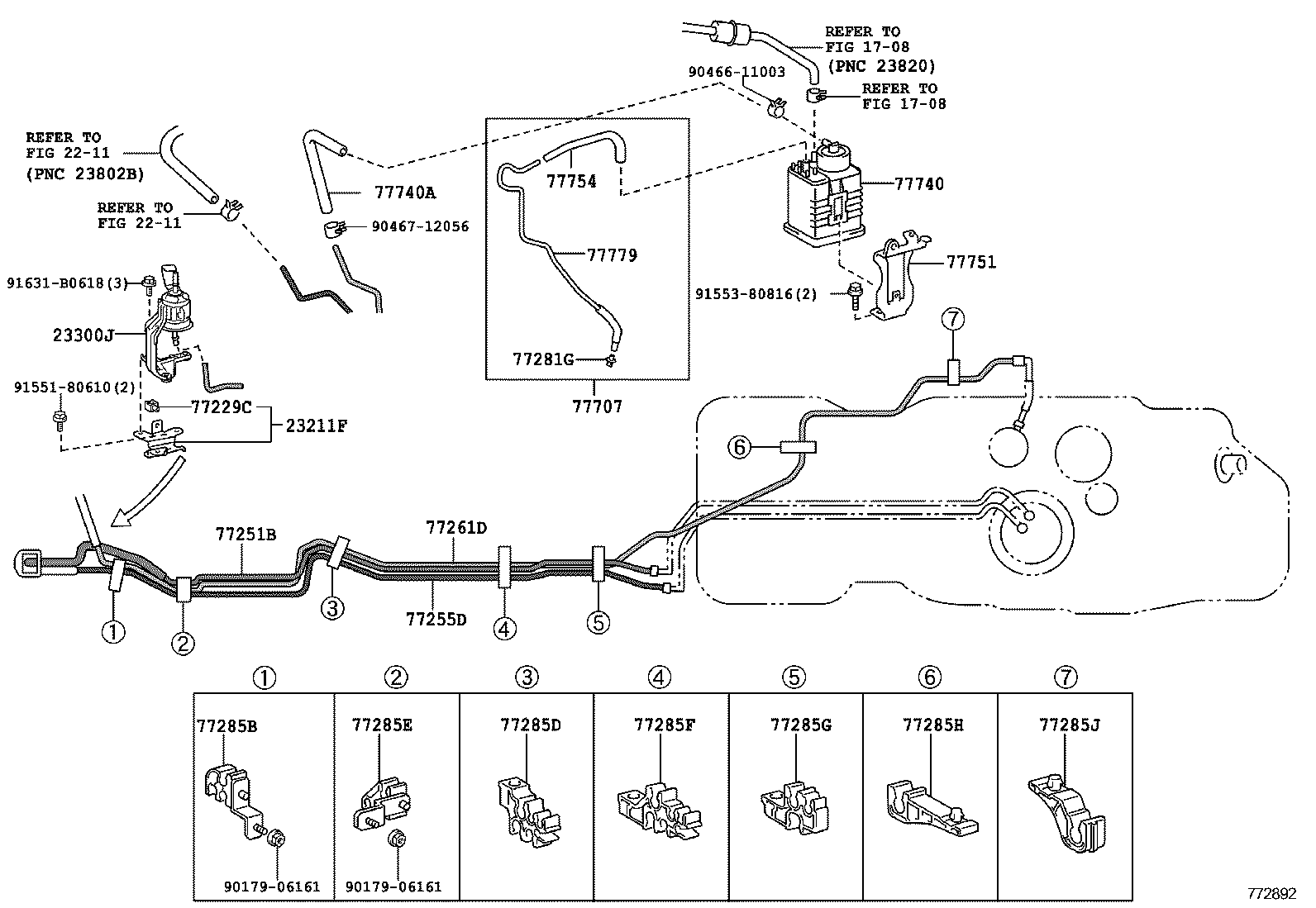

FUEL TANK TUBE

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ ILLUST NO. 2 OF 3(1011- )

FJ CRUISER | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 23211F - BRACKET 23300J - FILTER ASSY, FUEL 77229C - CLAMP, BREATHER TUBE 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77261D - TUBE, FUEL TANK TO CANISTER 77281G - CLAMP, FUEL HOSE 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285G - CLAMP, FUEL TUBE, NO.1 77285H - CLAMP, FUEL TUBE, NO.1 77285J - CLAMP, FUEL TUBE, NO.1 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77779 - TUBE, CHARCOAL CANISTER OUTLET ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
