TOYOTA HARRIER ZSU60W-ANXMP / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

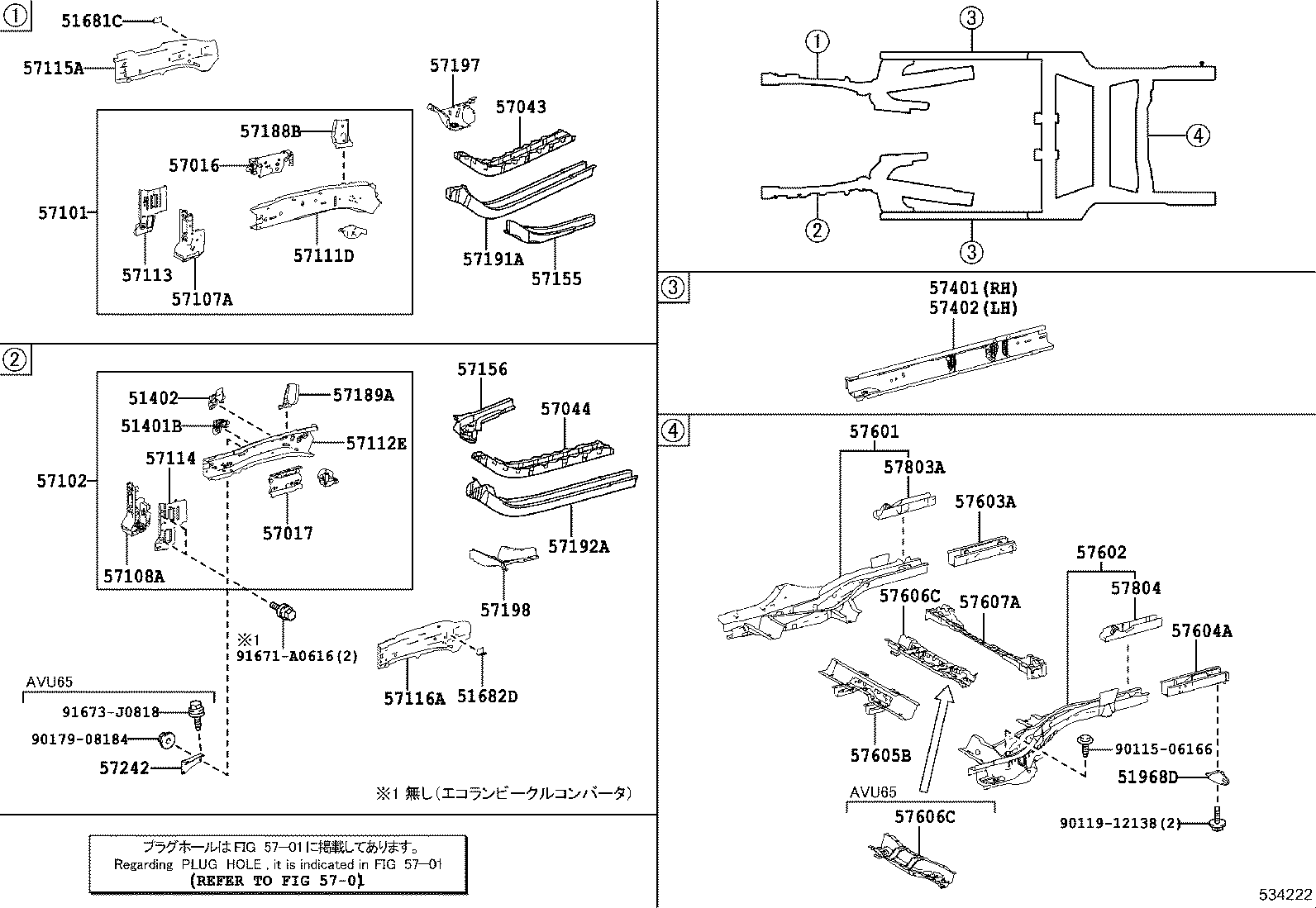

FLOOR SIDE MEMBER

(1401- )

HARRIER | FLOOR SIDE MEMBER 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51681C - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH 51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH 51968D - HOOK, TRANSPORT, REAR LH ** Refer Fig 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH 57111D - MEMBER, FRONT SIDE, INNER RH 57112E - MEMBER, FRONT SIDE, INNER LH 57113 - EXTENSION, FRONT SIDE MEMBER, RH 57114 - EXTENSION, FRONT SIDE MEMBER, LH 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH 57191A - MEMBER, FRONT SIDE, INNER REAR RH 57192A - MEMBER, FRONT SIDE, INNER REAR LH 57197 - BOX, TORQUE, FRONT RH 57198 - BOX, TORQUE, FRONT LH 57242 - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
