TOYOTA HARRIER ZSU60W-ANXMP / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

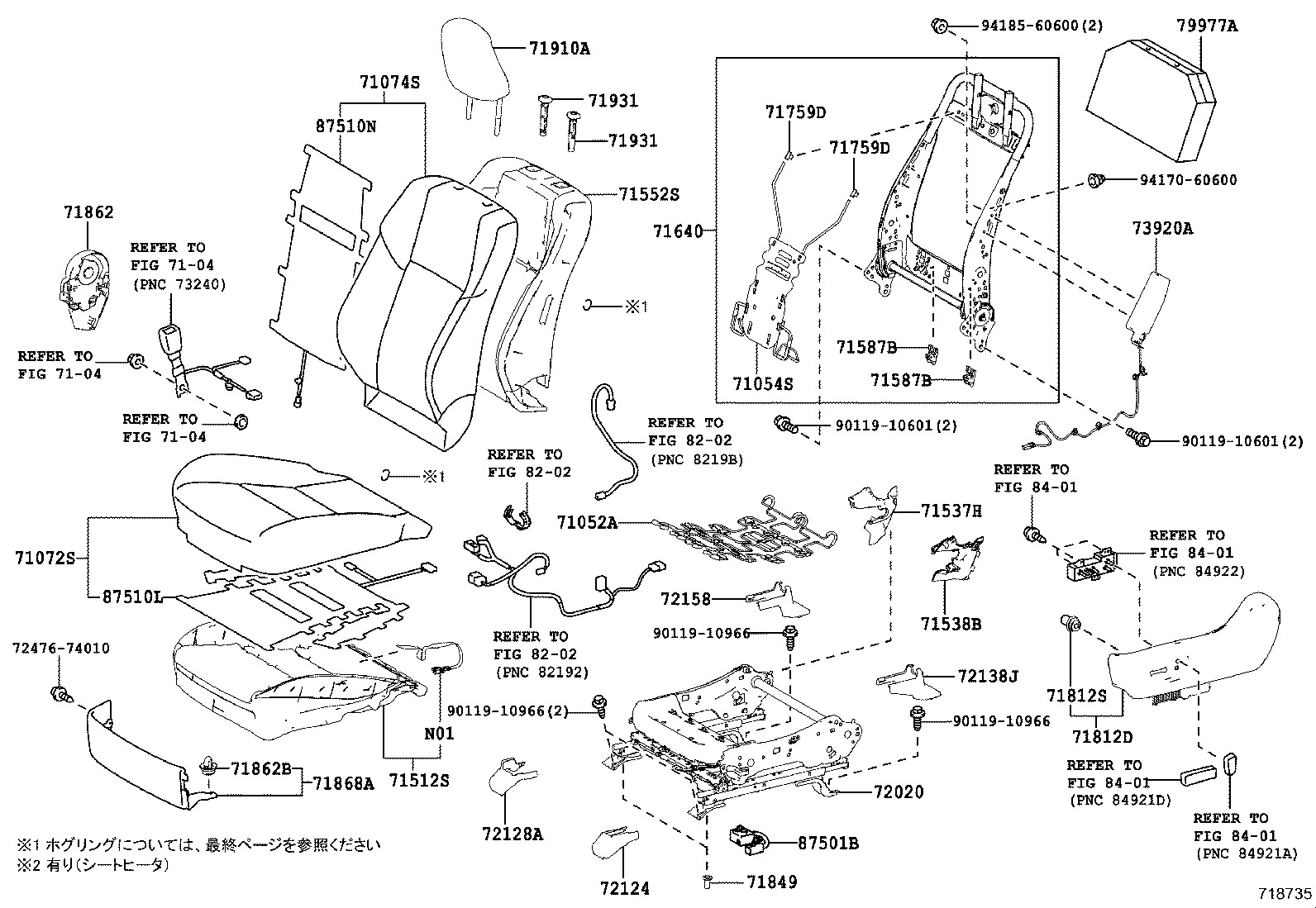

FRONT SEAT SEAT TRACK

ｼﾞｮｼｭｾｷ,ｱﾘ(ﾊﾟﾜｰｼｰﾄ) (1312- )ELEGC,PREM

HARRIER | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71587B - PROTECTOR, FRONT SEAT BACK EDGE 71587B - PROTECTOR, FRONT SEAT BACK EDGE 71640 - SPRING ASSY, FRONT SEAT BACK, LH 71759D - HOOK, FRONT SEAT BACK, NO.2 71759D - HOOK, FRONT SEAT BACK, NO.2 71812D - SHIELD, FRONT SEAT CUSHION, LH 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72020 - ADJUSTER ASSY, FRONT SEAT, LH 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER 72158 - COVER, SEAT TRACK BRACKET, INNER LH ** Std Part 73920A - AIR BAG ASSY, FRONT SEAT, LH 79977A - FELT, SEAT BACK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH 87510N - HEATER ASSY, FRONT SEAT BACK, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
