TOYOTA HIACE REGIUSACE TRH200K-ERPDK5 / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

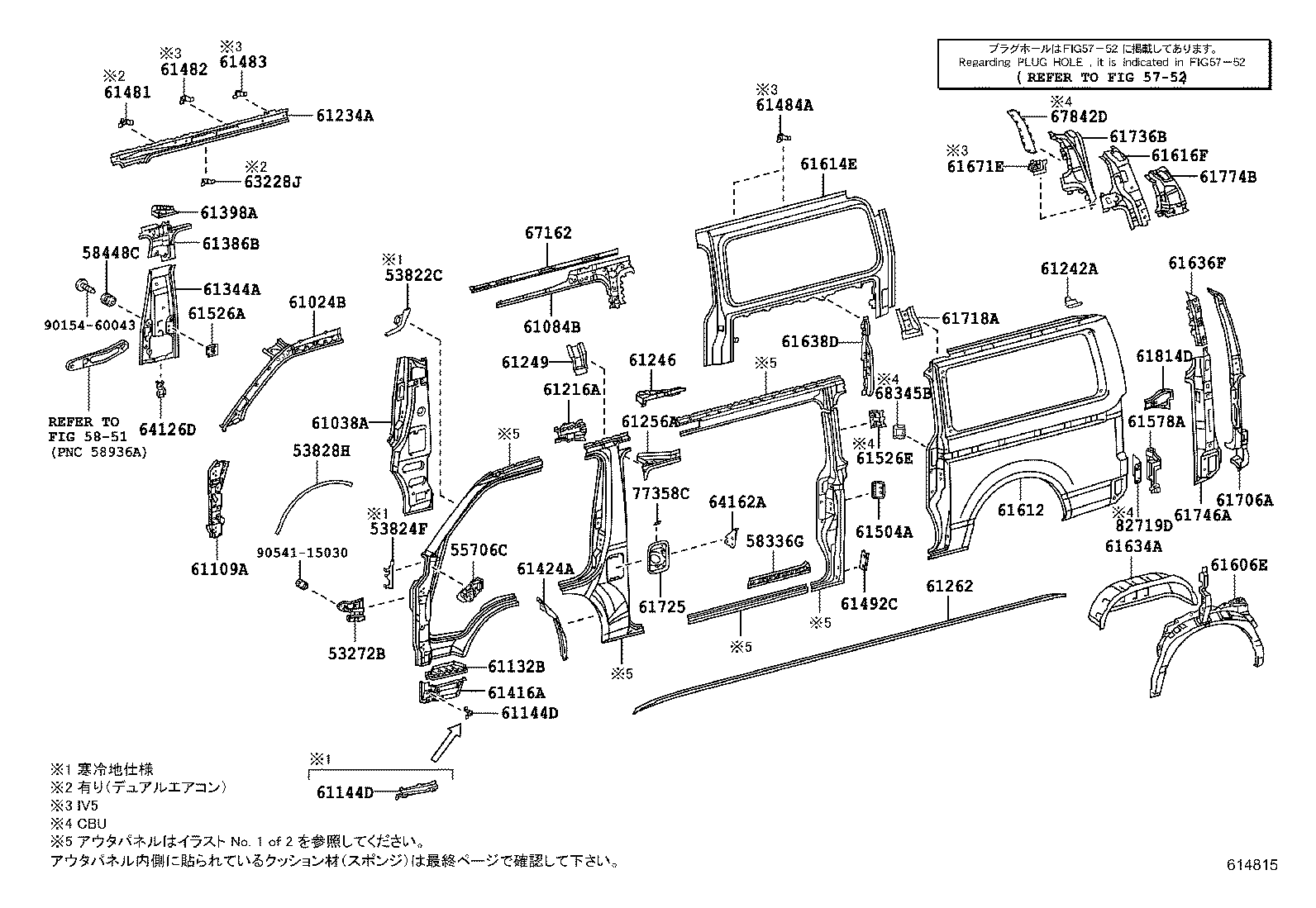

SIDE MEMBER

LH ILLUST NO. 2 OF 2(1312- )KDH20#,TRH200..HRF..4D

HIACE REGIUSACE | SIDE MEMBER 53272B - BRACKET, HEADLAMP MOUNTING, LH 53822C - PROTECTOR, FRONT SIDE PANEL, NO.1 LH 53824F - PROTECTOR, FRONT SIDE PANEL, NO.2 LH 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH ** Refer Fig 58336G - PLATE, FLOOR SIDE, FR LH 58448C - HOOK, ENGINE SERVICE HOLE COVER, NO.2 LH ** Refer Fig 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH 61084B - BRACE SUB-ASSY, ROOF SIDE INNER, FR LH 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH 61132B - PILLAR, FRONT BODY, OUTER LH 61144D - RETAINER, FRONT BUMPER SIDE, LH 61144D - RETAINER, FRONT BUMPER SIDE, LH 61216A - RAIL, ROOF SIDE, OUTER REAR LH 61234A - RAIL, ROOF SIDE, INNER NO.2 LH 61242A - GUSSET, ROOF SIDE RAIL, REAR LH 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH 61249 - RETAINER, ROOF SIDE RAIL, OUTER LH 61256A - PLATE, ROOF SIDE RAIL, OUTER LH 61262 - CHANNEL, ROOF DRIP, LH 61344A - PILLAR, CENTER BODY, INNER LH 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH 61398A - PATCH, CENTER BODY PILLAR, INNER LH 61416A - PANEL, FRONT STEP UNDER, LH 61424A - PANEL, FENDER, INNER LOWER LH 61481 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.1 61482 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.2 61483 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.3 61484A - BRACKET, ROOF SIDE RAIL REINFORCE, NO.4 61492C - PLATE, NO.3 LOWER RAIL, INNER LH 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH 61526A - RETAINER, SEPARATOR BAR BRACKET, LH 61526E - RETAINER, SEPARATOR BAR BRACKET, LH NO.2 61578A - PLATE, CAB REAR PILLAR, LOWER LH 61606E - PANEL, QUARTER, LH 61612 - PANEL, QUARTER, LH 61614E - PANEL, QUARTER, INNER LH 61616F - REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 61636F - REINFORCEMENT, QUARTER PANEL, UPR LH 61638D - REINFORCEMENT, QUARTER, INNER LH 61671E - REINFORCEMENT, SEAT BELT ANCHOR, UPPER 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH 61725 - BOX, FUEL INLET 61736B - EXTENSION, QUARTER PANEL, INNER LH 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH 61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH 61814D - REINFORCEMENT, QUARTER PANEL EXTENSION, NO.3 LH 63228J - BRACKET, ROOF HEADLINING, FRONT LH NO.3 64126D - ANCHOR, PILLAR SEAT BELT, LH 64162A - BRACKET, FUEL INLET 67162 - EXTENSION, SLIDE DOOR INSIDE PANEL, UPPER LH 67842D - COVER, QUARTER SERVICE HOLE, LH 68345B - COVER, SLIDE DOOR CENTER RAIL, RH 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 82719D - COVER, WIRE HANRESS SERVICE HOLE ** Std Part ** Std Part
