TOYOTA HIACE REGIUSACE TRH219W-JDPNK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

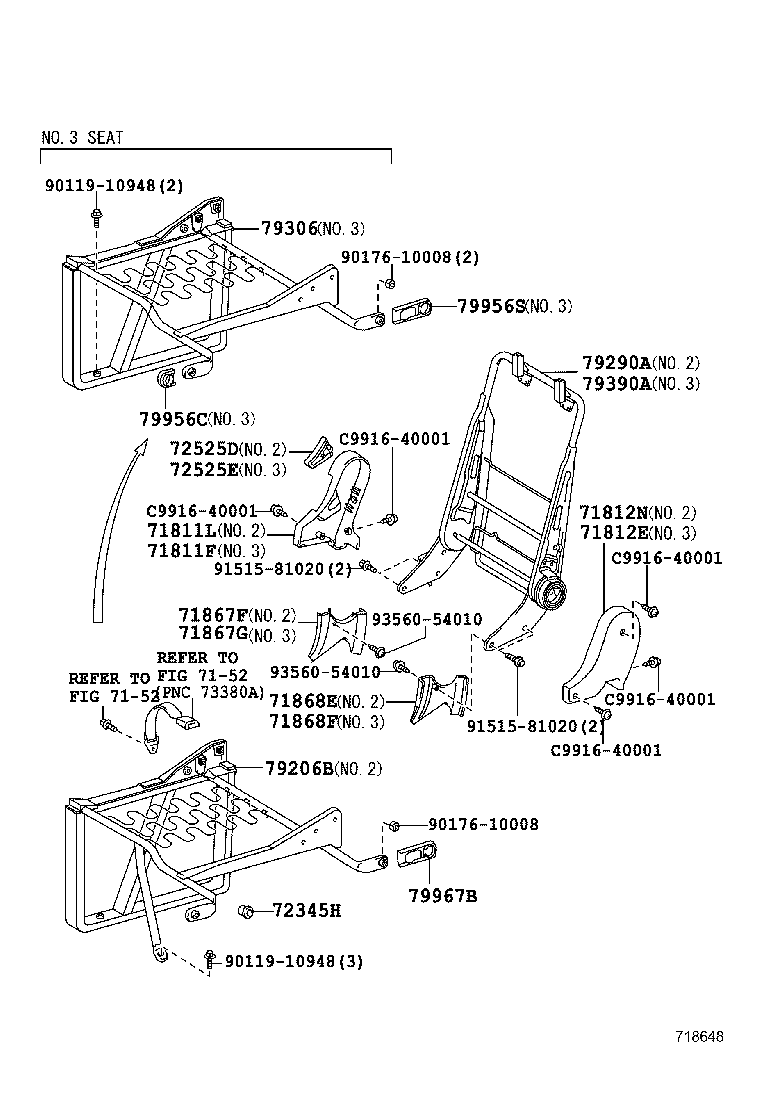

SEAT SEAT TRACK

ﾘﾔ ｼｰﾄ(ﾌﾚｰﾑ, 1ﾆﾝｶﾞｹｼｰﾄ) ILLUST NO. 2 OF 7(1312- )KDH223,TRH214,219,223,224,228,229..CB

HIACE REGIUSACE | SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71811F - COVER, RECLINING ADJUSTER, RH 71811L - COVER, RECLINING ADJUSTER, RH 71812E - COVER, RECLINING ADJUSTER, LH 71812N - COVER, RECLINING ADJUSTER, LH 71867F - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71867G - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71868E - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH 71868F - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH 72345H - CAP, SEAT STAND FRAME 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH 72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH 79206B - LEG SUB-ASSY, NO.2 SEAT, LH 79290A - SPRING ASSY, NO.2 SEAT BACK, LH 79306 - LEG SUB ASSY, NO.3 SEAT, LH 79390A - SPRING ASSY, NO.3 SEAT BACK, LH 79956C - COVER, REAR SEAT LEG SIDE, LH 79956S - COVER, REAR SEAT LEG SIDE 79967B - COVER, REAR SEAT LEG SIDE NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
