TOYOTA NOAH VOXY ZRR80G-ARXEP5 / BODY / ROOF PANEL BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

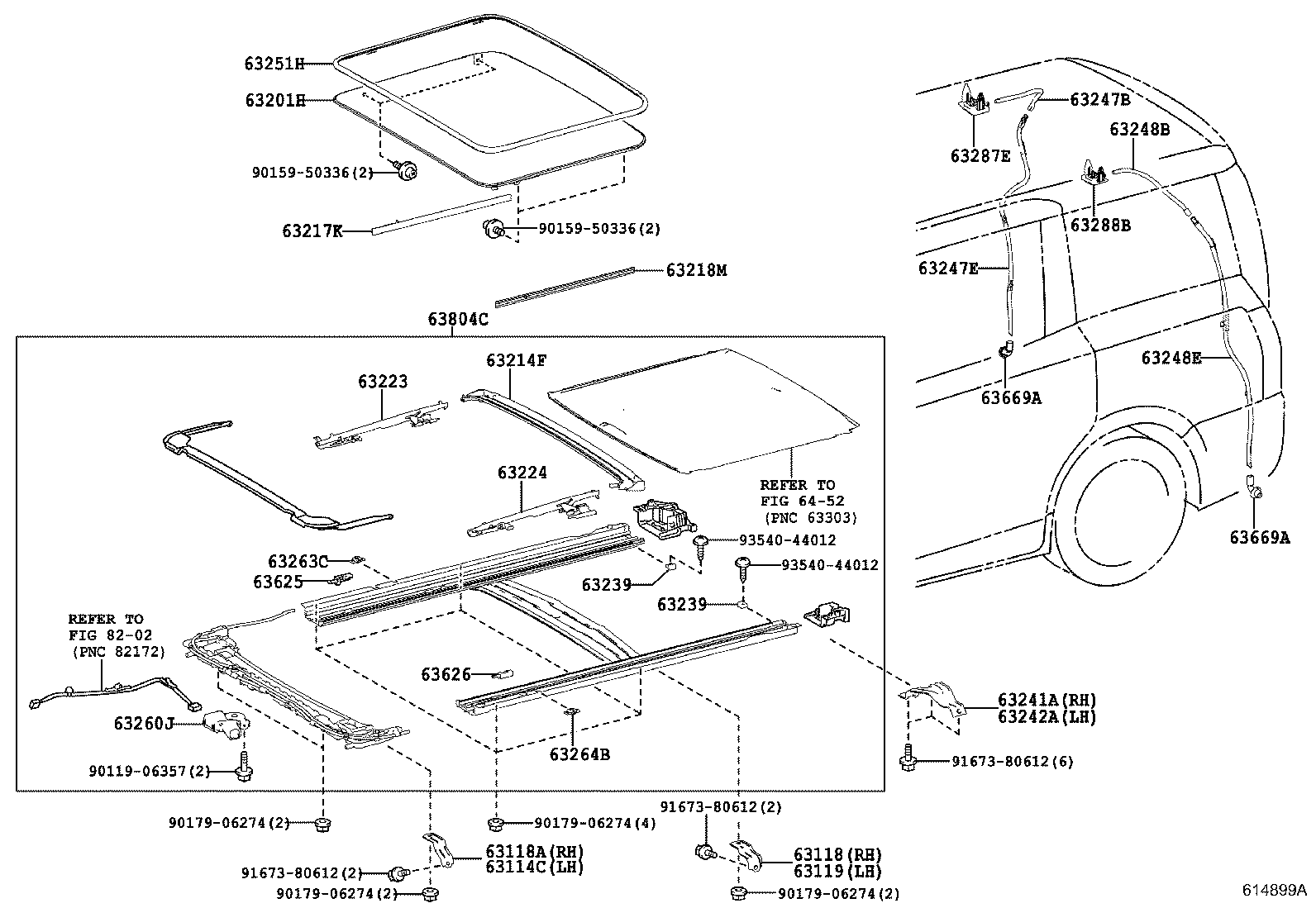

ROOF PANEL BACK PANEL

アリ(ツインムーンルーフ(スライディングル-フ ハウジング))ILLUST NO. 3 OF 3(1401- )

 NOAH VOXY |  ROOF PANEL BACK PANEL 63114C - SUPPORT, ROOF PANEL, FRONT LH 63118 - SUPPORT, ROOF PANEL, RH 63118A - SUPPORT, ROOF PANEL, FRONT RH 63119 - SUPPORT, ROOF PANEL, LH 63201H - PANEL SUB-ASSY, SLIDE ROOF 63214F - CHANNEL, ROOF DRIP, REAR 63217K - GARNISH, SLIDING ROOF SIDE, RH 63218M - GARNISH, SLIDING ROOF SIDE, LH 63223 - CABLE, SLIDING ROOF DRIVE, RH 63224 - CABLE, SLIDING ROOF DRIVE, LH 63239 - STOPPER, SLIDING ROOF PANEL 63239 - STOPPER, SLIDING ROOF PANEL 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH 63247B - HOSE, SLIDING ROOF 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH 63248B - HOSE, SLIDING ROOF 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH 63251H - WEATHERSTRIP, SLIDING ROOF 63260J - GEAR ASSY, SLIDING ROOF DRIVE 63263C - PLATE, SLIDING ROOF LOCK CATCH, RH 63264B - PLATE, SLIDING ROOF LOCK CATCH, LH 63287E - CAP, SLIDING ROOF HOUSING DRAIN END, RH 63288B - CAP, SLIDING ROOF HOUSING DRAIN END, LH 63625 - BLOCK, SLIDING ROOF GUIDE, RH 63626 - BLOCK, SLIDING ROOF GUIDE, LH 63669A - GROMMET, SLIDING ROOF DRAIN 63669A - GROMMET, SLIDING ROOF DRAIN 63804C - HOUSING SUB-ASSY, REAR SLIDE ROOF ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
