TOYOTA NOAH VOXY ZRR80G-ARXEP5 / BODY / SEAT BELT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT BELT

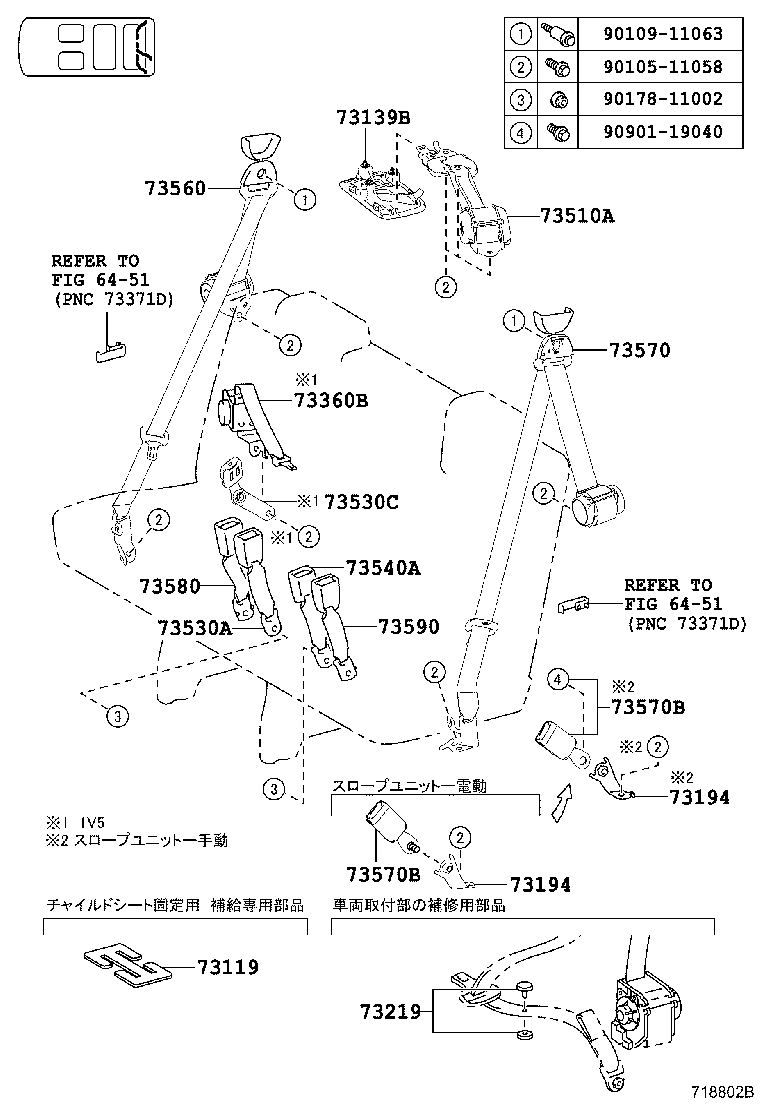

リヤNO.2シート ILLUST NO. 4 OF 4(1401- )

 NOAH VOXY |  SEAT BELT ** Refer Fig ** Refer Fig 73119 - PLATE, SEAT BELT WEBBING CLIP 73139B - COVER, SEAT BELT ANCHOR 73194 - BRACKET, SEAT BELT INNER ANCHOR, NO.2 LH 73194 - BRACKET, SEAT BELT INNER ANCHOR, NO.2 LH 73219 - STOPPER, TONGUE PLATE 73360B - BELT ASSY, REAR SEAT, OUTER 73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH 73530C - BELT ASSY, NO.2 SEAT LAP TYPE 73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH 73570B - BELT ASSY, REAR SEAT, OUTER 73570B - BELT ASSY, REAR SEAT, OUTER 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part
