TOYOTA NOAH VOXY ZRR80G-ARXEP5 / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

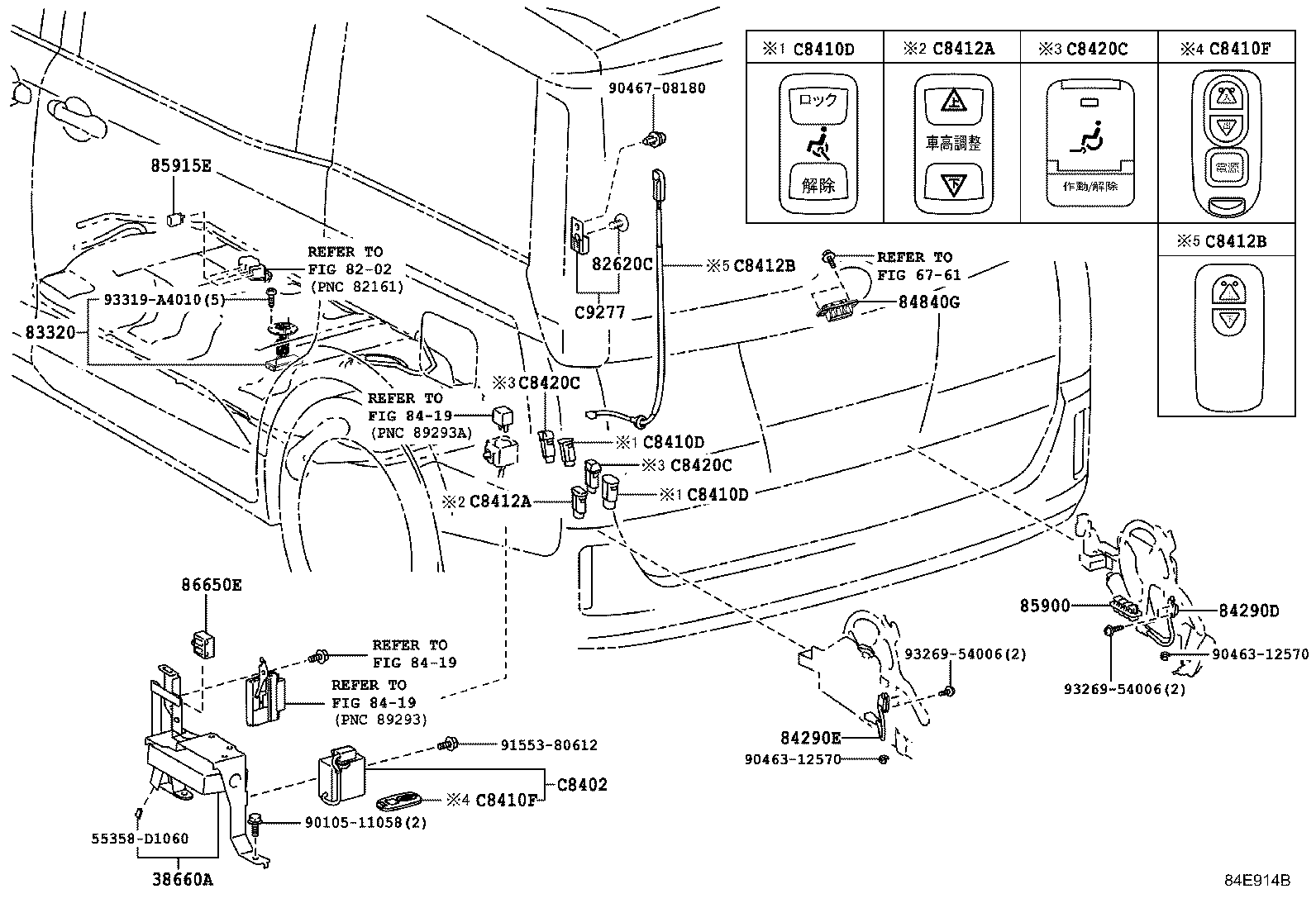

SWITCH RELAY COMPUTER

ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ ILLUST NO. 9 OF 9(1401- )IV5

NOAH VOXY | SWITCH RELAY COMPUTER 38660A - CONTROLLER ASSY, WINCH MOTOR ** Std Part ** Refer Fig ** Refer Fig 82620C - CLIP 83320 - GAGE ASSY, FUEL SENDER ** Refer Fig ** Refer Fig ** Refer Fig 84290D - SWITCH ASSY, LIMIT 84290E - SWITCH ASSY, LIMIT 84840G - SWITCH ASSY, BACK DOOR OPENER 85900 - RELAY ASSY, CONTROL UNIT 85915E - RELAY 86650E - BUZZER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part C8402 - SWITCH SET, POWER LIFT REMOTE CONTROL C8410D - SWITCH ASSY, CONTROL, NO.1 C8410D - SWITCH ASSY, CONTROL, NO.1 C8410D - SWITCH ASSY, CONTROL, NO.1 C8410F - SWITCH, POWER LIFT REMOTE CONTROL C8410F - SWITCH, POWER LIFT REMOTE CONTROL C8412A - SWITCH, POWER LIFT CONTROL, NO.1 C8412A - SWITCH, POWER LIFT CONTROL, NO.1 C8412B - SWITCH, POWER LIFT CONTROL, NO.2 C8412B - SWITCH, POWER LIFT CONTROL, NO.2 C8420C - SWITCH ASSY, CONTROL, NO.2 C8420C - SWITCH ASSY, CONTROL, NO.2 C8420C - SWITCH ASSY, CONTROL, NO.2 C9277 - BRACKET, LIFT CONTROL SWITCH
