TOYOTA VITZ KSP130-AHXGK / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

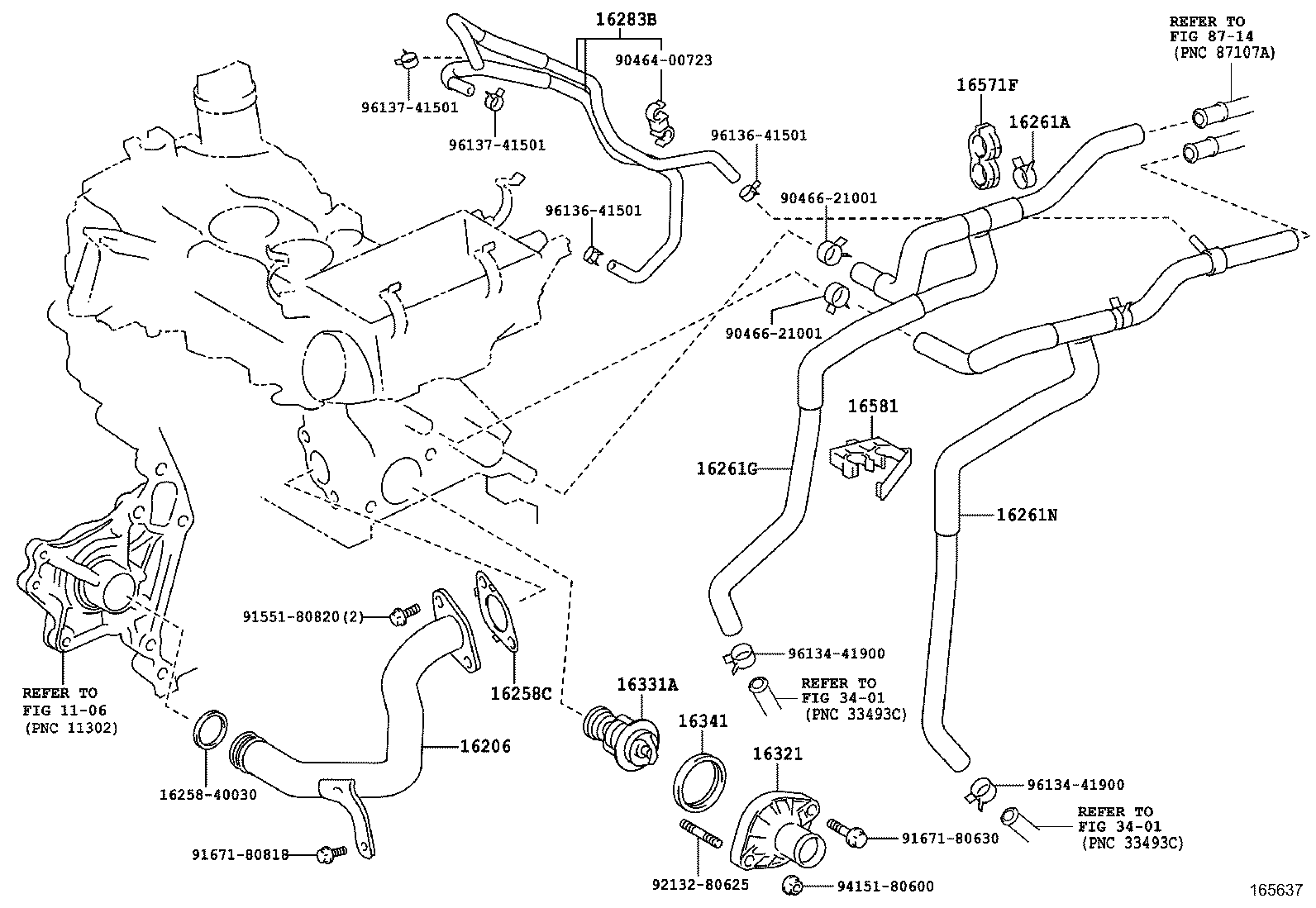

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(1404- )1KRFE

VITZ | RADIATOR WATER OUTLET ** Refer Fig 16206 - PIPE SUB-ASSY, WATER BY-PASS ** Std Part 16258C - GASKET(FOR WATER BY-PASS PIPE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261G - HOSE, WATER BY-PASS, NO.1 16261N - HOSE, WATER BY-PASS, NO.2 16283B - HOSE, WATER BY-PASS 16321 - INLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16571F - CLAMP OR CLIP(FOR WATER HOSE) 16581 - CLAMP, HOSE(FOR WATER HOSE) ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
