TOYOTA LAND CRUISER 62 FJ62LG-PNEA / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SPRING SHOCK ABSORBER

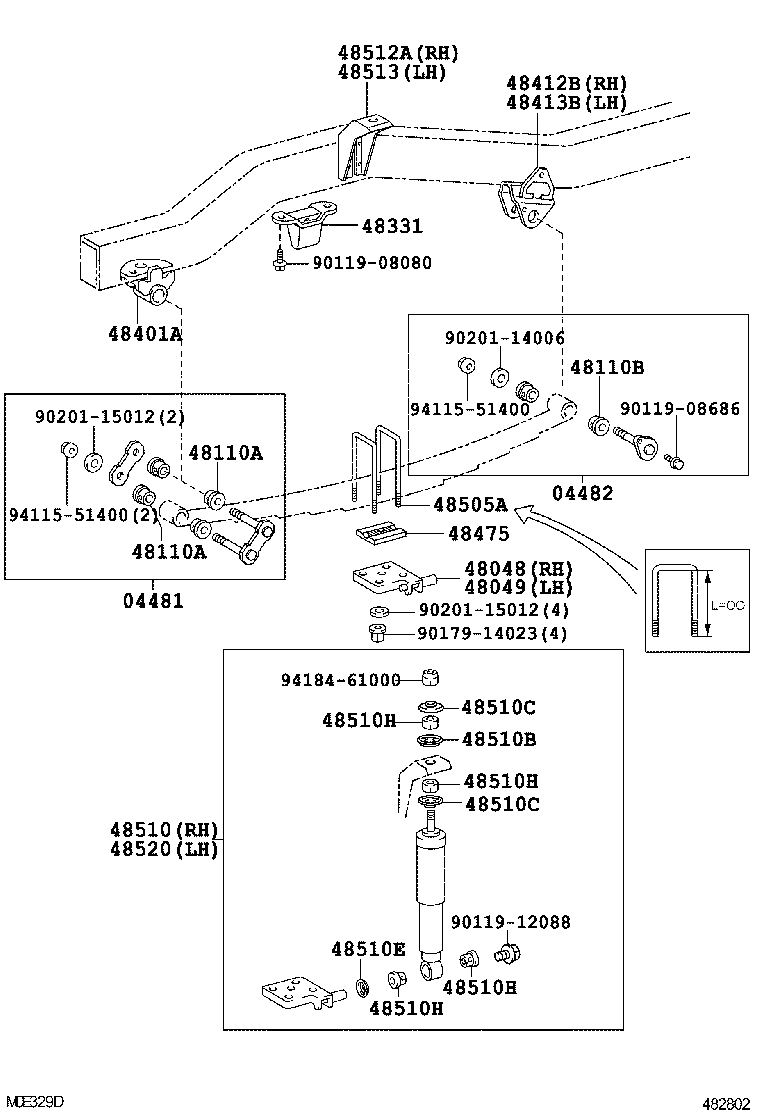

ILLUST NO. 2 OF 3(8708- )

LAND CRUISER 62 | FRONT SPRING SHOCK ABSORBER 04481 - SHACKLE KIT, FRONT SPRING 04482 - PIN KIT, FRONT SPRING 48048 - SEAT SUB-ASSY, SPRING, RH 48049 - SEAT SUB-ASSY, SPRING, LH 48110A - BUSH(FOR FRONT SPRING SHACKLE) 48110A - BUSH(FOR FRONT SPRING SHACKLE) 48110B - BUSH(FOR FRONT SPRING PIN) 48331 - BUMPER, FRONT SPRING, NO.1 48401A - BRACKET SUB-ASSY, SPRING, NO.1 48412B - BRACKET, SPRING, NO.2 RH 48413B - BRACKET, SPRING, NO.2 LH 48475 - PLATE, DISTANCE(FOR FRONT) 48505A - BOLT, U(FOR FRONT SPRING) 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 48510H - BUSH(FOR FRONT SHOCK ABSORBER) 48510H - BUSH(FOR FRONT SHOCK ABSORBER) 48510H - BUSH(FOR FRONT SHOCK ABSORBER) 48510H - BUSH(FOR FRONT SHOCK ABSORBER) 48512A - BRACKET, FRONT SHOCK ABSORBER, UPPER RH 48513 - BRACKET, FRONT SHOCK ABSORBER, UPPER LH 48520 - ABSORBER ASSY, SHOCK, FRONT LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
