TOYOTA RAV4 EV BEA11L-AWDHSA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

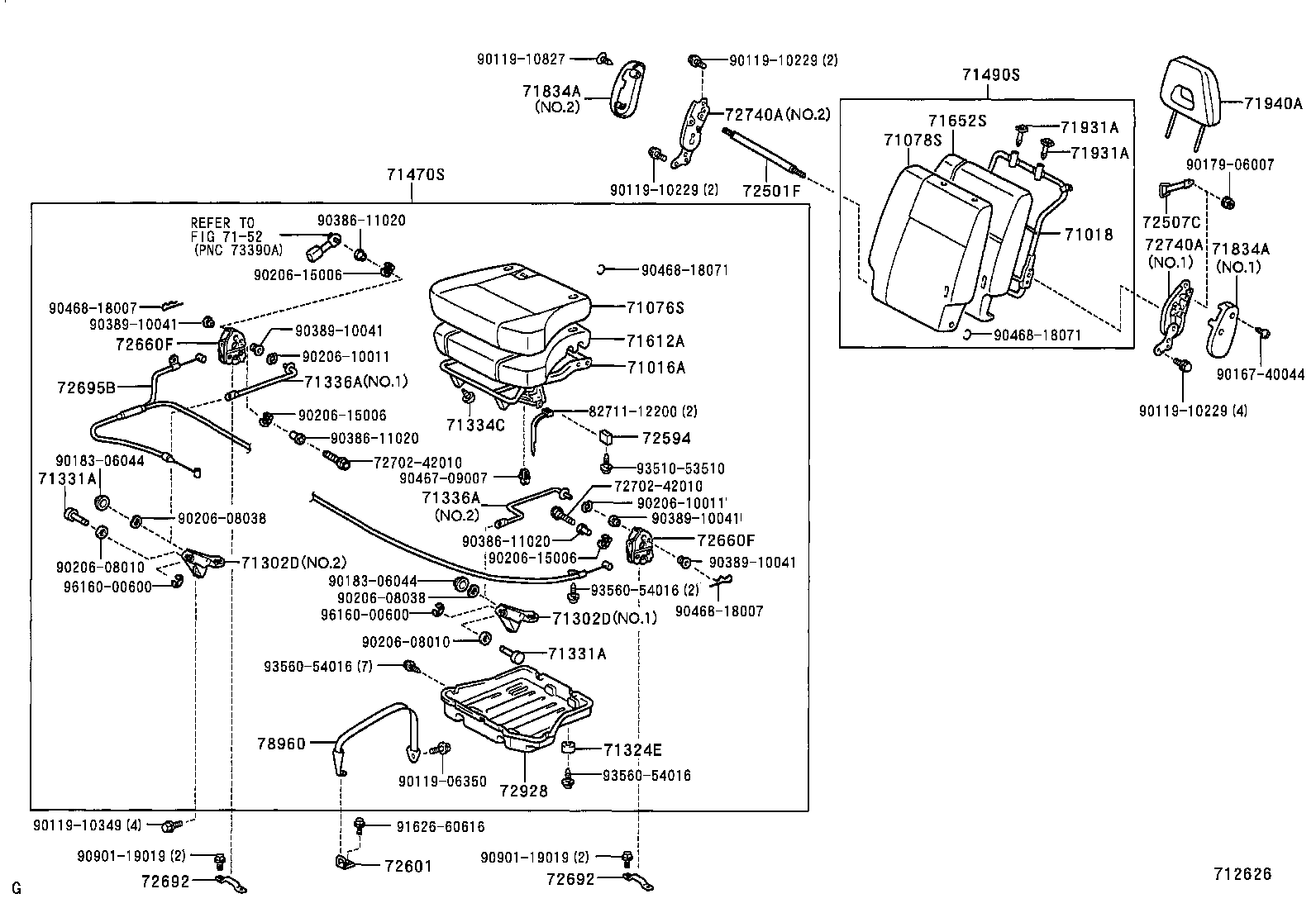

REAR SEAT-LH ILLUST NO. 3 OF 3(0209- )

RAV4 EV | SEAT SEAT TRACK 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71302D - HINGE SUB-ASSY, REAR SEAT, LH 71302D - HINGE SUB-ASSY, REAR SEAT, LH 71324E - CUSHION, REAR SEAT, LH 71331A - PIN, REAR SEAT HINGE 71331A - PIN, REAR SEAT HINGE 71334C - STOPPER, REAR SEAT LEG, LH 71336A - STAY, REAR SEAT CUSHION LINK, LH 71336A - STAY, REAR SEAT CUSHION LINK, LH 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) ** Refer Fig 71612A - PAD, REAR SEAT CUSHION, LH 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72501F - PIPE SUB-ASSY, RECLINING CONNECTING 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH 72594 - KNOB, REMOTE CONTROL LEVER, LH 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK 72660F - LOCK ASSY, REAR SEAT, LH 72660F - LOCK ASSY, REAR SEAT, LH 72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2 72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2 72695B - CABLE, REAR SEAT LOCK CONTROL, RH ** Std Part ** Std Part 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH 72928 - COVER, REAR SEAT CUSHION UNDER, LH 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
