TOYOTA HIACE TRH201R-SSMDK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

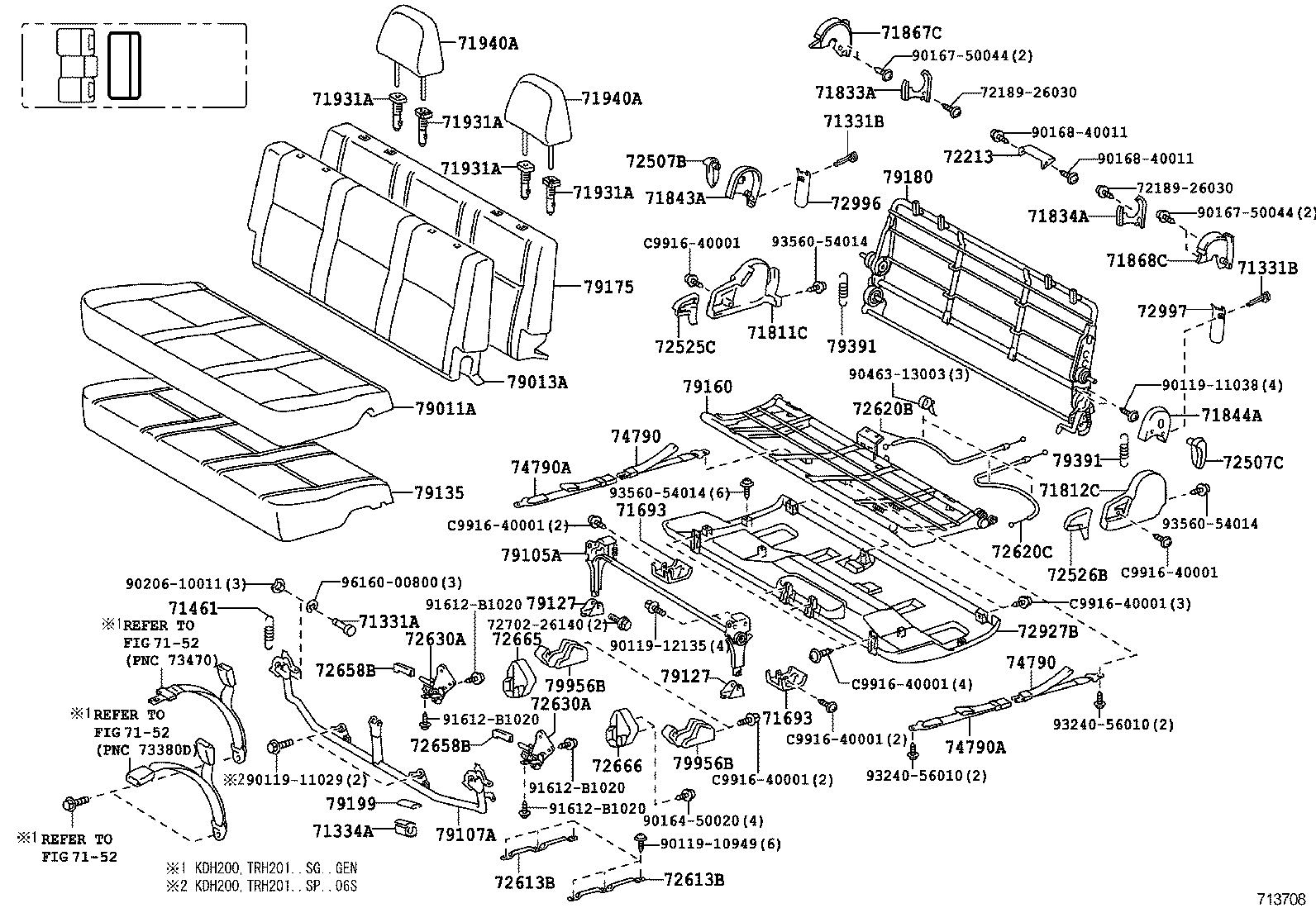

SEAT SEAT TRACK

(0501-0709)KDH200,TRH201..06S..GEN

 HIACE |  SEAT SEAT TRACK 71331A - PIN, REAR SEAT HINGE 71331B - PIN, REAR SEAT HINGE, RH 71331B - PIN, REAR SEAT HINGE, RH 71334A - STOPPER, REAR SEAT LEG 71461 - SPRING, REAR SEAT CUSHION ** Refer Fig ** Refer Fig ** Refer Fig 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH 71811C - COVER, RECLINING ADJUSTER, RH 71812C - COVER, RECLINING ADJUSTER, LH 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71843A - COVER, REAR SEAT RECLINING, NO.2 RH 71844A - COVER, REAR SEAT RECLINING, NO.2 LH 71867C - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71868C - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT  ** Std Part  ** Std Part 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH 72613B - STRIKER, REAR SEAT LOCK 72613B - STRIKER, REAR SEAT LOCK 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK 72630A - LOCK ASSY, REAR NO.1 SEAT 72630A - LOCK ASSY, REAR NO.1 SEAT 72658B - KNOB, REAR SEAT LOCK HANDLE 72658B - KNOB, REAR SEAT LOCK HANDLE 72665 - COVER, REAR SEAT BACK LOCK, RH 72666 - COVER, REAR SEAT BACK LOCK, LH  ** Std Part 72927B - COVER, REAR SEAT CUSHION UNDER 72996 - COVER, REAR SEAT BACK, RH 72997 - COVER, REAR SEAT BACK, LH 74790 - HOLDER ASSY, WARNING REFLECTOR 74790 - HOLDER ASSY, WARNING REFLECTOR 74790A - HOLDER ASSY, WARNING REFLECTOR 74790A - HOLDER ASSY, WARNING REFLECTOR 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION 79013A - COVER SUB-ASSY, NO.1 SEAT BACK 79105A - LEG SUB-ASSY, NO.1 SEAT 79107A - LEG SUB-ASSY, NO.1 SEAT, REAR 79127 - BRACKET, NO.1 SEAT LEG, LOWER 79127 - BRACKET, NO.1 SEAT LEG, LOWER 79135 - PAD, NO.1 SEAT CUSHION 79160 - SPRING ASSY, NO.1 SEAT CUSHION 79175 - PAD, NO.1 SEAT BACK 79180 - SPRING ASSY, NO.1 SEAT BACK 79199 - HOLDER, NO.1 SEAT LEG STOPPER 79391 - SPRING, REAR SEAT CUSHION 79391 - SPRING, REAR SEAT CUSHION 79956B - COVER, REAR SEAT LEG SIDE, RH 79956B - COVER, REAR SEAT LEG SIDE, RH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
