TOYOTA AVALON GSX30L-AETPKA / BODY / ROOF PANEL BACK WINDOW GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ROOF PANEL BACK WINDOW GLASS

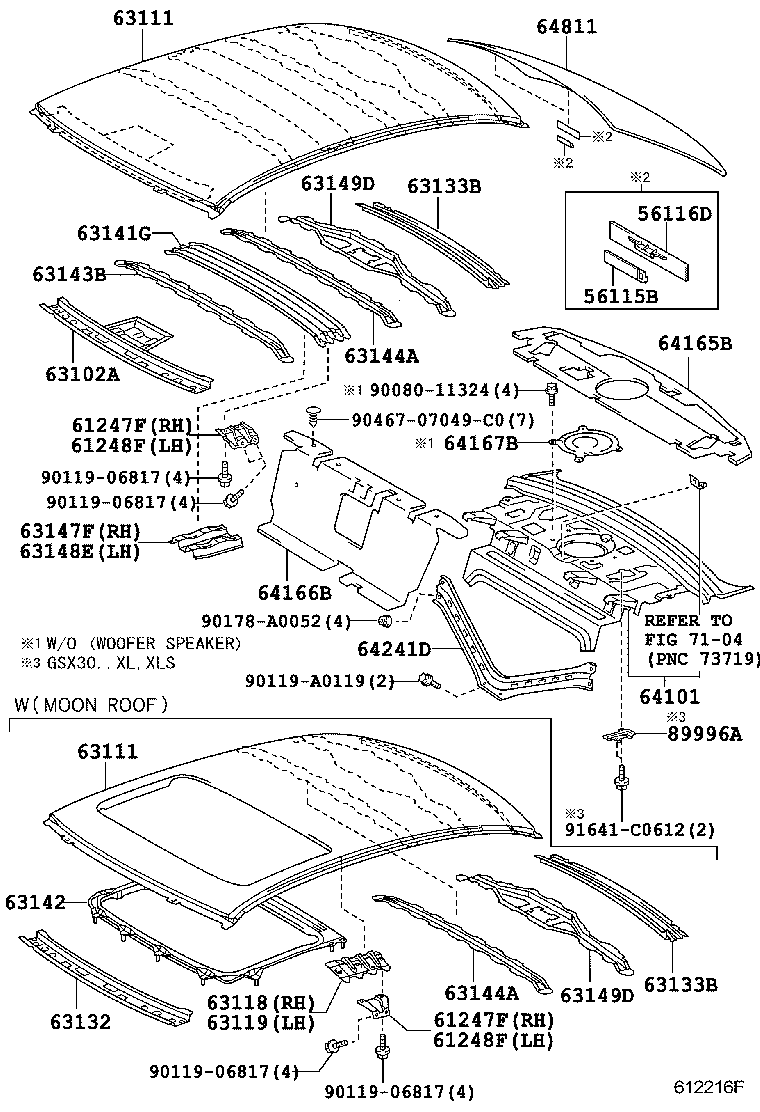

ROOF PANEL ILLUST NO. 1 OF 2(0501- )

 AVALON |  ROOF PANEL BACK WINDOW GLASS 56115B - STOPPER, BACK WINDOW GLASS, NO.1 56116D - STOPPER, BACK WINDOW GLASS, NO.2 61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER 61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER 61248F - REINFORCEMENT, ROOF SIDE RAIL, INNER, LH 61248F - REINFORCEMENT, ROOF SIDE RAIL, INNER, LH 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER 63111 - PANEL, ROOF 63111 - PANEL, ROOF 63118 - SUPPORT, ROOF PANEL, RH 63119 - SUPPORT, ROOF PANEL, LH 63132 - PANEL, WINDSHIELD HEADER, INNER 63133B - FRAME, BACK WINDOW 63133B - FRAME, BACK WINDOW 63141G - REINFORCEMENT, ROOF PANEL, NO.1 63142 - REINFORCEMENT, ROOF PANEL, NO.2 63143B - REINFORCEMENT, ROOF PANEL, NO.3 63144A - REINFORCEMENT, ROOF PANEL, NO.4 63144A - REINFORCEMENT, ROOF PANEL, NO.4 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH 63149D - REINFORCEMENT, ROOF PANEL, NO.8 63149D - REINFORCEMENT, ROOF PANEL, NO.8 64101 - PANEL SUB-ASSY, UPPER BACK 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 64241D - PANEL, ROOM PARTITION 64811 - GLASS, BACK WINDOW ** Refer Fig 89996A - BRACKET, W/O OSCILLATOR ELECTRICAL KEY  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
