TOYOTA AVALON GSX30L-AETPKA / BODY / ROOF PANEL BACK WINDOW GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ROOF PANEL BACK WINDOW GLASS

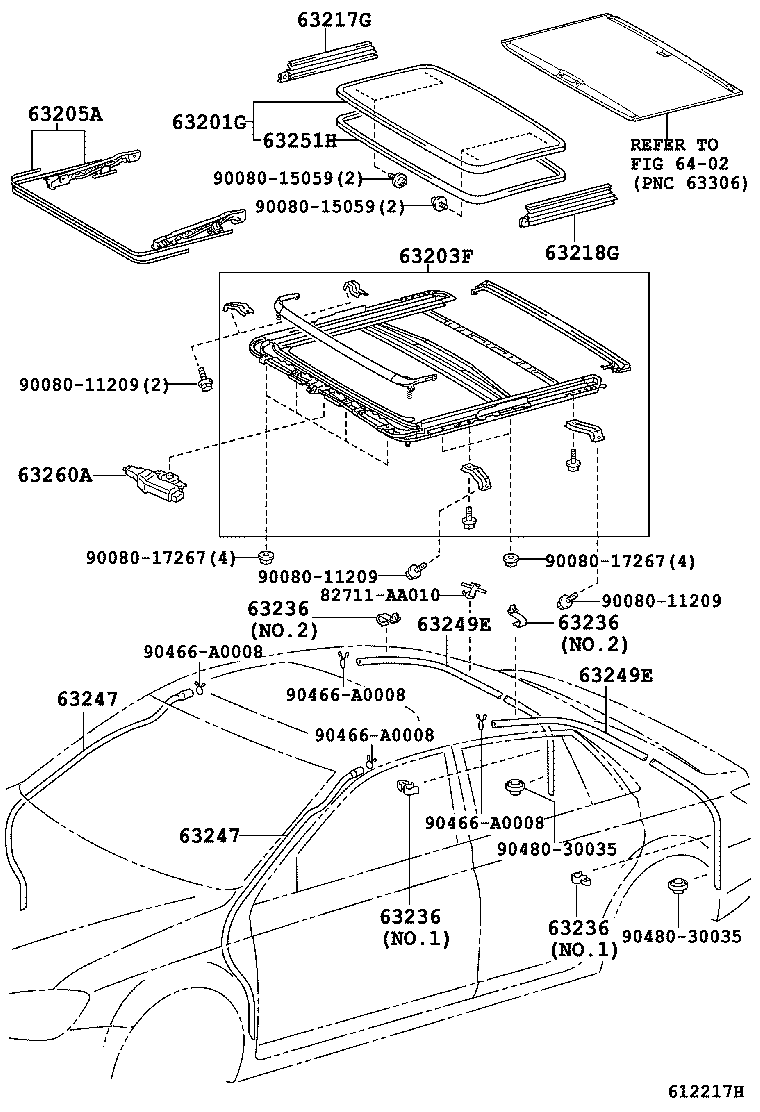

MOON ROOF ILLUST NO. 2 OF 2(0501- )

 AVALON |  ROOF PANEL BACK WINDOW GLASS 63201G - GLASS SUB-ASSY, SLIDING ROOF 63203F - HOUSING SUB-ASSY, SLIDING ROOF 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE 63217G - GARNISH, SLIDING ROOF SIDE, RH 63218G - GARNISH, SLIDING ROOF SIDE, LH 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE 63247 - HOSE, SLIDING ROOF HOUSING DRAIN 63247 - HOSE, SLIDING ROOF HOUSING DRAIN 63249E - HOSE, SLIDING ROOF DRAIN 63249E - HOSE, SLIDING ROOF DRAIN 63251H - WEATHERSTRIP, SLIDING ROOF 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
