TOYOTA AVALON GSX30L-AETPKA / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

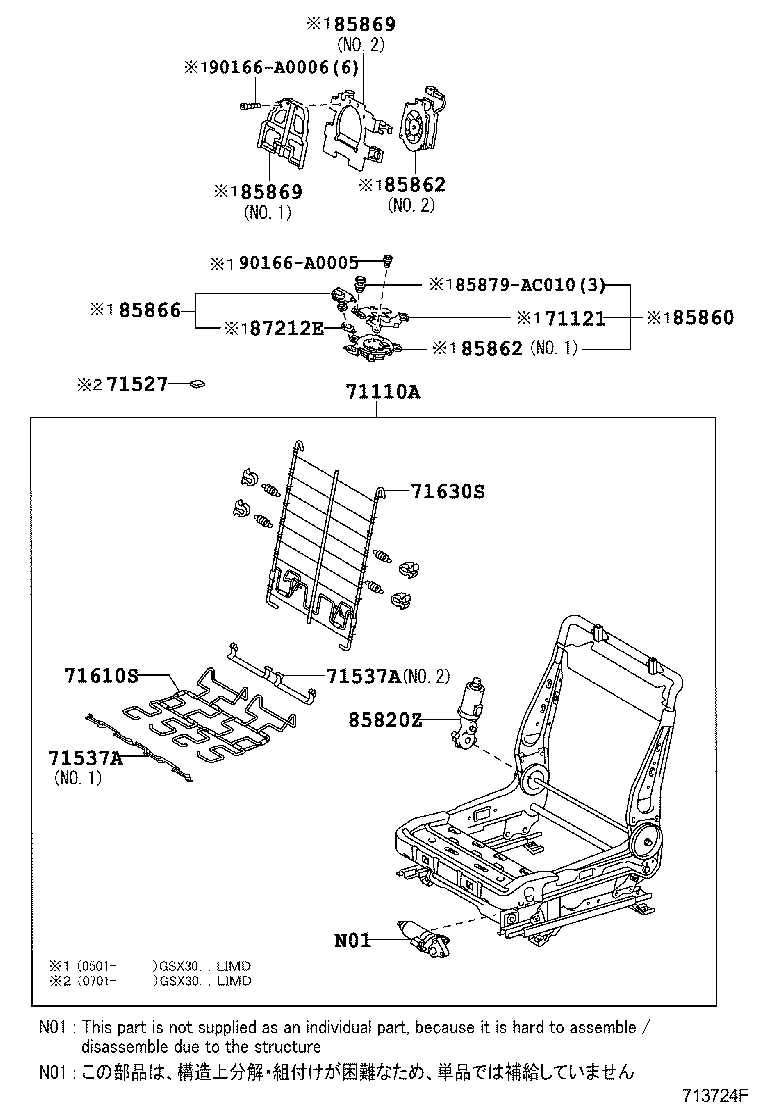

FRONT SEAT SEAT TRACK

RH SEAT ILLUST NO. 4 OF 4(0501-1003)

AVALON | FRONT SEAT SEAT TRACK 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH 71121 - BRACKET, FRONT SEAT CUSHION, RH 71527 - TAPE, FRONT SEAT CUSHION SILENCER 71537A - PROTECTOR, FRONT SEAT CUSHION 71537A - PROTECTOR, FRONT SEAT CUSHION 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 85820Z - MOTOR ASSY, POWER SEAT 85860 - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL 85862 - BLOWER, SEAT CLIMATE CONTROL, RH 85862 - BLOWER, SEAT CLIMATE CONTROL, RH 85866 - DUCT, SEAT CUSHION CLIMATE CONTROL, RH 85869 - COVER, SEAT BACK CLIMATE CONTROL, RH 85869 - COVER, SEAT BACK CLIMATE CONTROL, RH ** Std Part 87212E - DUCT, AIR, REAR RH ** Std Part ** Std Part
