TOYOTA HIACE TRH223R-LEMDKQ / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

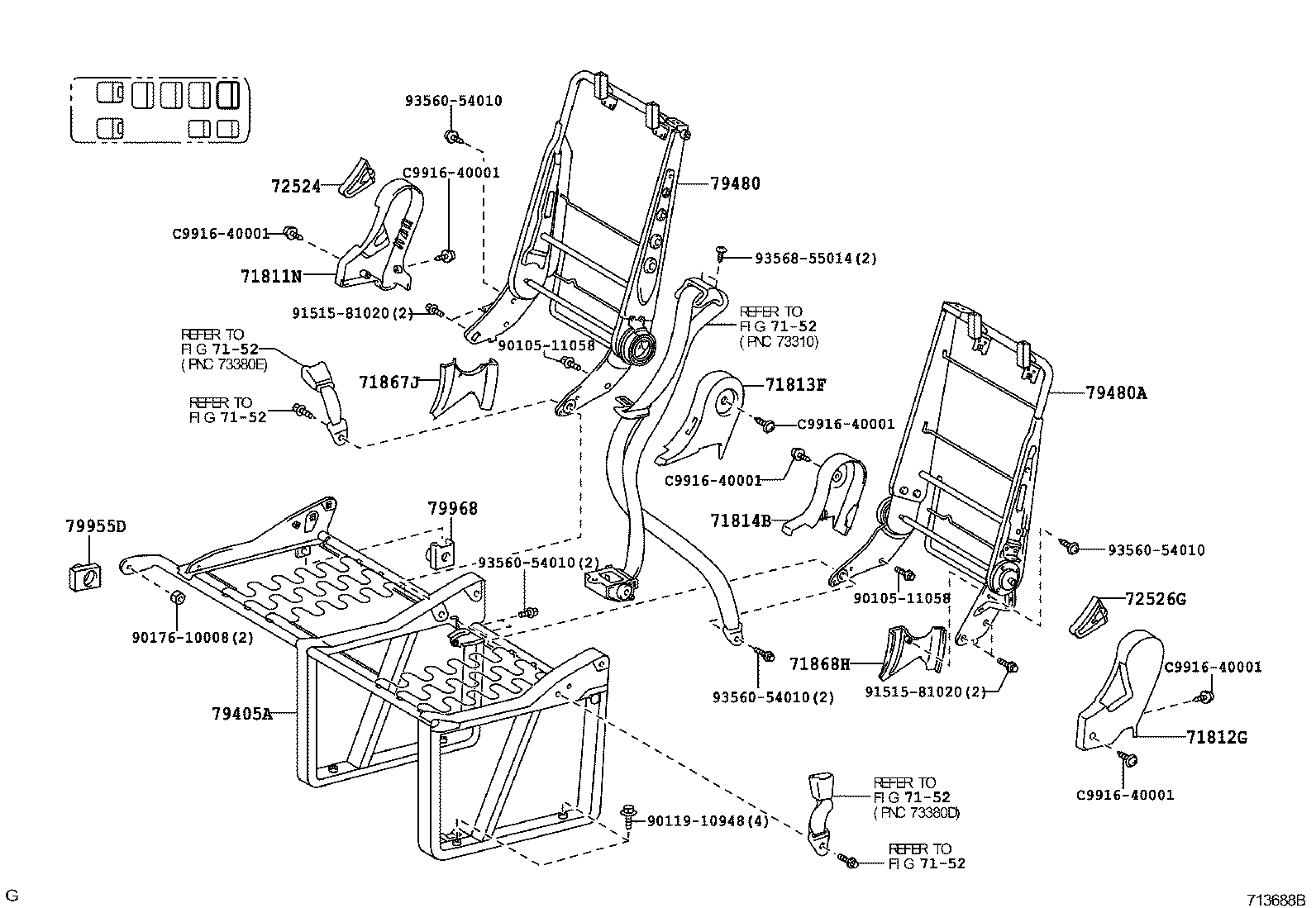

SEAT SEAT TRACK

RHD RR(NEW ZEALAND SPEC & BELT-3P) ILLUST NO. 2 OF 2(0501-1008)KDH222,223..ARL ; (0501-1008)TRH223..

HIACE | SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71811N - COVER, RECLINING ADJUSTER, RH 71812G - COVER, RECLINING ADJUSTER, LH 71813F - SHIELD, FRONT SEAT BACK, RH 71814B - SHIELD, FRONT SEAT BACK, LH 71867J - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71868H - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH 72524 - HANDLE, RECLINING ADJUSTER RELEASE 72526G - HANDLE, RECLINING ADJUSTER RELEASE, NO.5 LH 79405A - LEG SUB-ASSY, NO.4 SEAT, RH 79480 - SPRING ASSY, NO.4 SEAT BACK 79480A - SPRING ASSY, NO.4 SEAT BACK, RH 79955D - COVER, REAR SEAT FRONT BRACKET, RH 79968 - COVER, REAR SEAT LEG SIDE, NO.5 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
