TOYOTA LAND CRUISER 200 URJ200L-GNTEKA / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

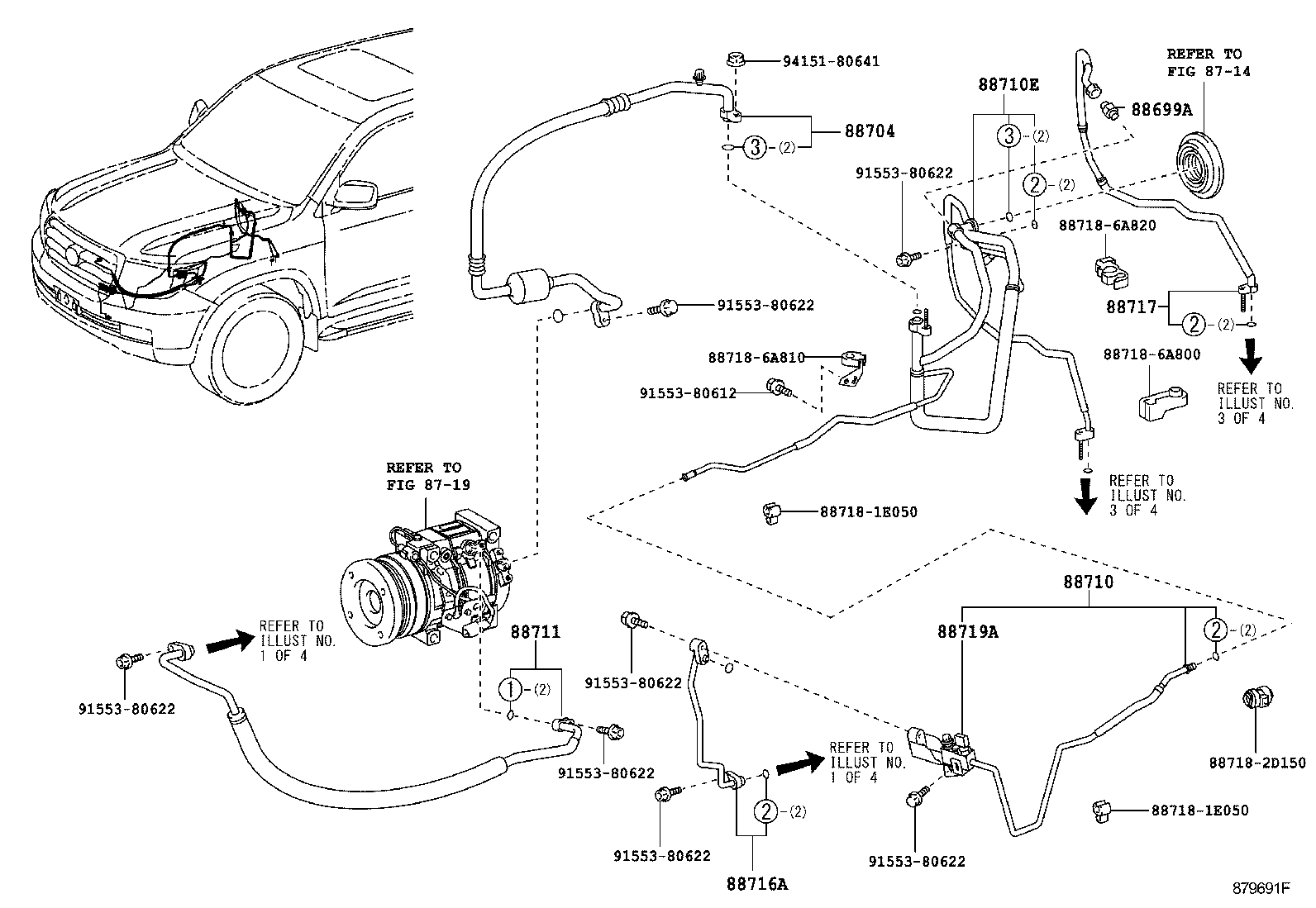

HEATING AIR CONDITIONING COOLER PIPING

FRONT ILLUST NO. 2 OF 4(0709- )

LAND CRUISER 200 | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88699A - VALVE, AIR 88704 - HOSE SUB-ASSY, SUCTION 88710 - TUBE ASSY, AIRCONDITIONER 88710E - TUBE & ACCESSORY ASSY, AIRCONDITIONER 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
