TOYOTA LAND CRUISER 200 URJ200L-GNTEKA / POWERTRAIN-CHASSIS / OIL COOLER TUBE ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

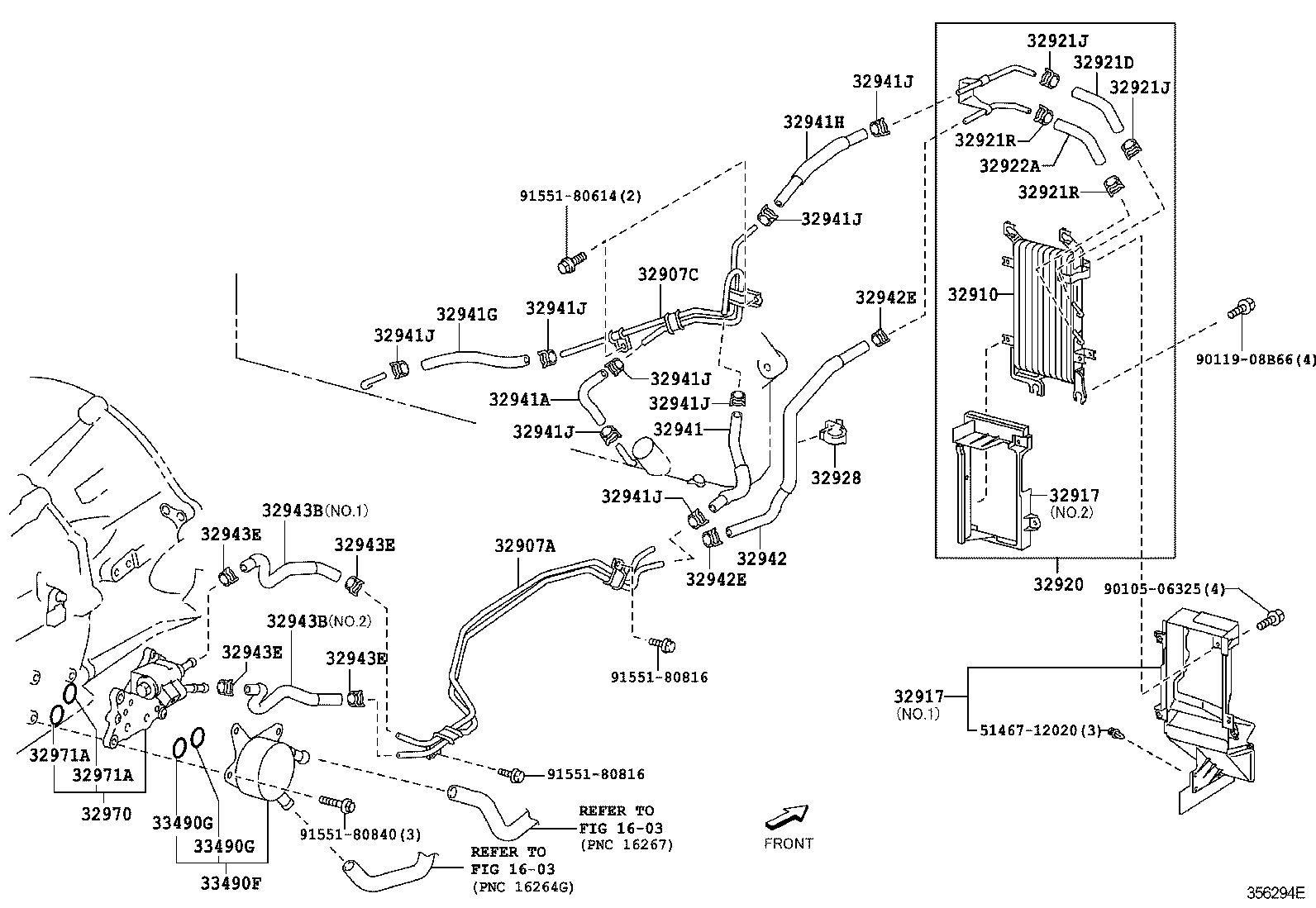

OIL COOLER TUBE ATM

AB60F W(AIR OIL COOLER) (0709- )

LAND CRUISER 200 | OIL COOLER TUBE ATM ** Refer Fig ** Refer Fig 32907A - TUBE, OIL COOLER 32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1 32910 - COOLER ASSY, OIL 32917 - DUCT, TRANSMISSION OIL COOLER AIR 32917 - DUCT, TRANSMISSION OIL COOLER AIR 32920 - COOLER ASSY, OIL W/HOSE 32921D - HOSE(FOR OIL COOLER INLET) 32921J - CLIP(FOR OIL COOLER HOSE) 32921J - CLIP(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32922A - HOSE(FOR OIL COOLER OUTLET) 32928 - CLAMP, FLEXIBLE HOSE, NO.1 32941 - HOSE, OIL COOLER INLET, NO.1 32941A - HOSE, OIL COOLER INLET, NO.2 32941G - HOSE, OIL COOLER INLET, NO.3 32941H - HOSE, OIL COOLER INLET, NO.4 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32942 - HOSE, OIL COOLER OUTLET, NO.1 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 32943B - HOSE, TRANSMISSION OIL COOLER 32943B - HOSE, TRANSMISSION OIL COOLER 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32970 - COOLER ASSY, TRANSMISSION OIL W/THERMOSTAT 32971A - RING, O(FOR TRANSMISSION OIL THERMOSTAT) 32971A - RING, O(FOR TRANSMISSION OIL THERMOSTAT) 33490F - COOLER ASSY, TRANSMISSION OIL 33490G - RING, O (FOR TRANSMISSION OIL COOLER) 33490G - RING, O (FOR TRANSMISSION OIL COOLER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
