TOYOTA LAND CRUISER 200 URJ200L-GNTEKA / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

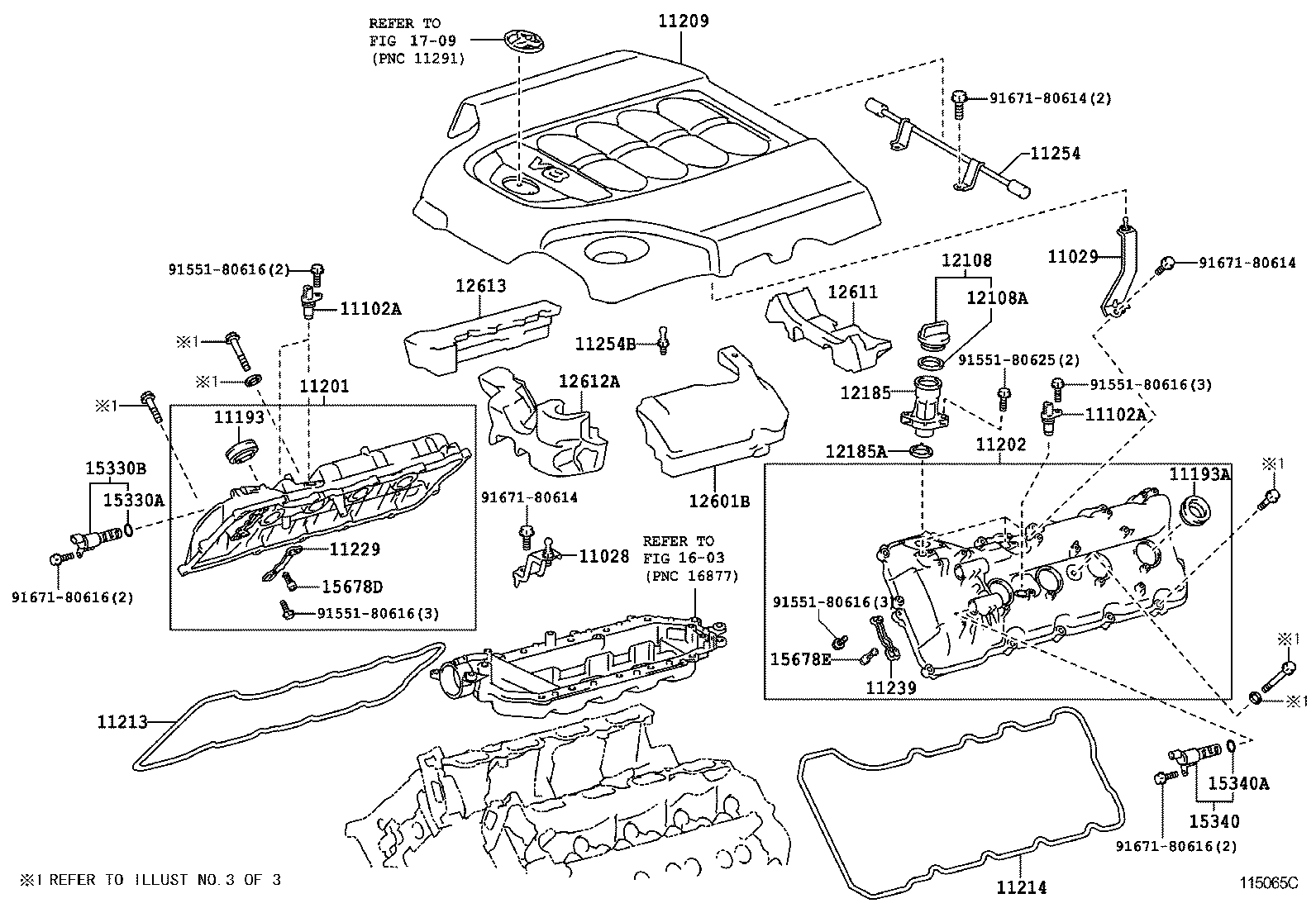

CYLINDER HEAD

ILLUST NO. 2 OF 3(0709- )

LAND CRUISER 200 | CYLINDER HEAD 11028 - BRACKET SUB-ASSY, V-BANK COVER, NO.2 11029 - BRACKET SUB-ASSY, V-BANK COVER 11102A - SENSOR, CAMSHAFT POSITION 11102A - SENSOR, CAMSHAFT POSITION 11193 - GASKET, SPARK PLUG TUBE 11193A - GASKET, SPARK PLUG TUBE, LH 11201 - COVER SUB-ASSY, CYLINDER HEAD 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH 11209 - COVER SUB-ASSY, V-BANK 11213 - GASKET, CYLINDER HEAD COVER 11214 - GASKET, CYLINDER HEAD COVER, NO.2 11229 - GASKET, CYLINDER HEAD COVER, NO.3 11239 - GASKET, CLINDER HEAD CONER, NO.4 11254 - BRACKET, V-BANK COVER, NO.1 11254B - BOLT, V-BANK COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 12185 - HOUSING, OIL FILLER CAP 12185A - GASKET, OIL FILLER CAP HOUSING 12601B - COVER SUB-ASSY, ENGINE, NO.1 12611 - COVER, ENGINE, NO.1 12612A - COVER, ENGINE, NO.2 12613 - COVER, ENGINE, NO.3 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) 15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH 15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH 15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) 15678D - FILTER, OIL CONTROL VALVE, RH 15678E - FILTER, OIL CONTROL VALVE, LH ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
