TOYOTA RUSH J200LE-GQDFX / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT DOOR PANEL GLASS

(0811- )

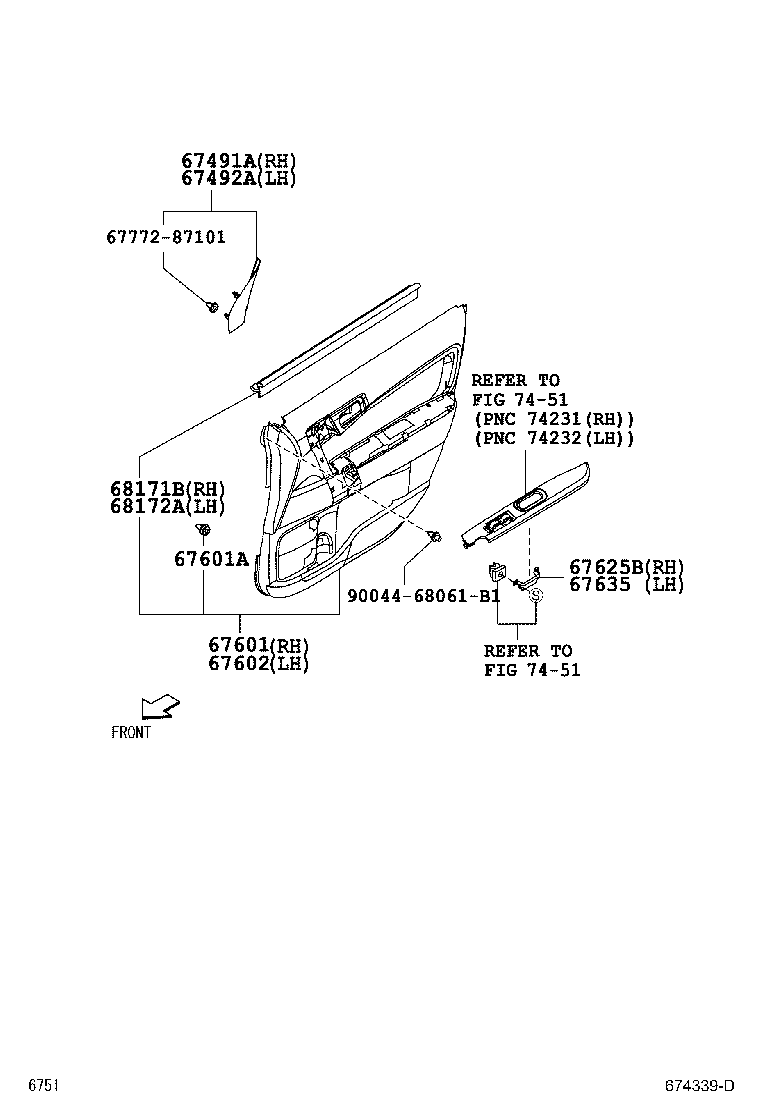

 RUSH |  FRONT DOOR PANEL GLASS 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH 67625B - BRACKET, DOOR TRIM, NO.1 RH 67635 - BRACKET, DOOR TRIM, NO.1 LH  ** Std Part 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH ** Refer Fig ** Refer Fig  ** Std Part
