TOYOTA SEQUOIA USK60L-GKTSKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

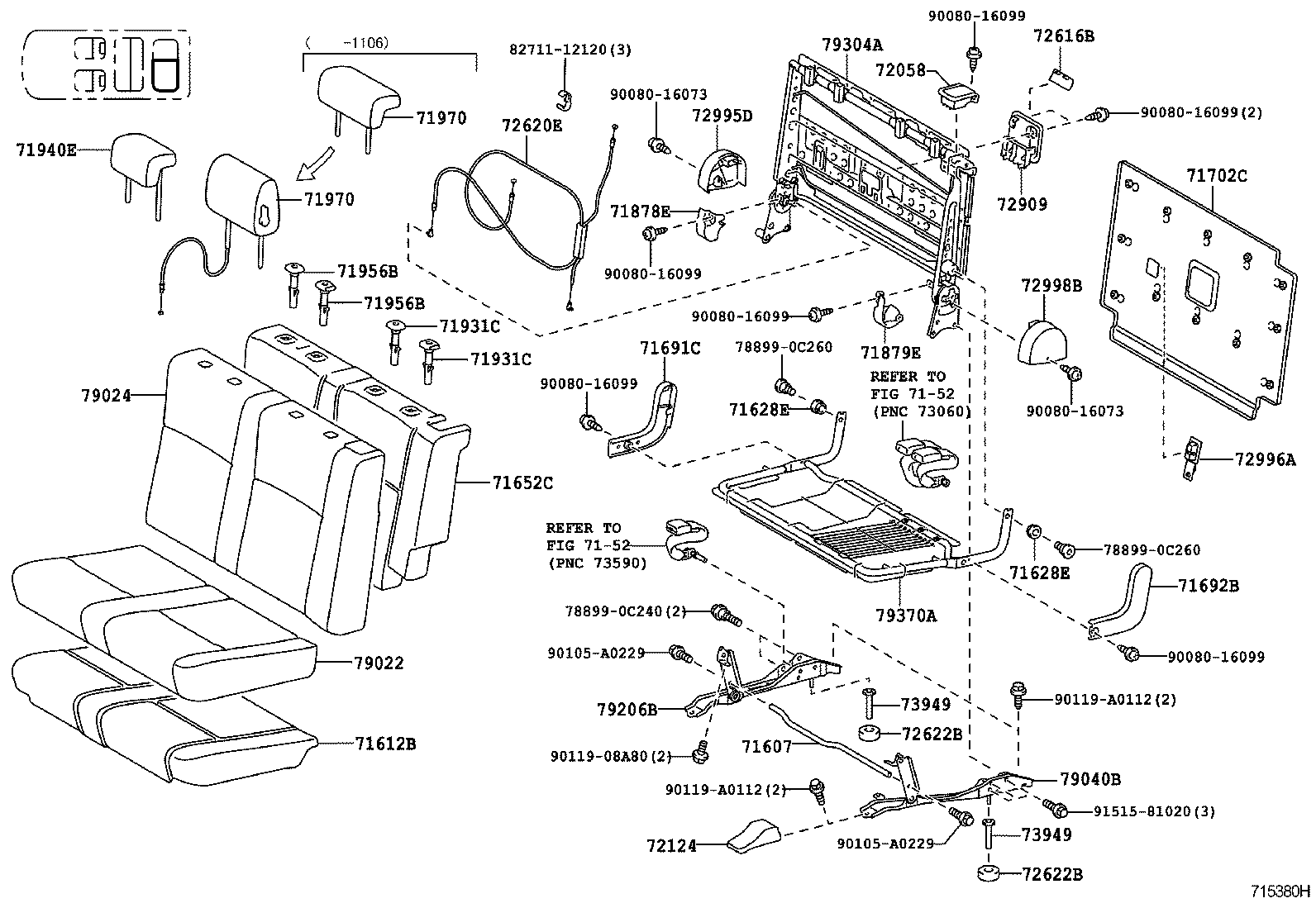

SEAT SEAT TRACK

REAR NO.2 SEAT (LH) ILLUST NO. 5 OF 5(0711- )SR5

SEQUOIA | SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71607 - ROD SUB-ASSY, REAR NO.2 SEAT 71612B - PAD, REAR SEAT CUSHION, B 71628E - SPACER, REAR SEAT CUSHION 71628E - SPACER, REAR SEAT CUSHION 71652C - PAD, REAR SEAT BACK, B 71691C - COVER, REAR SEAT LOCK, INNER RH 71692B - COVER, REAR SEAT LOCK, OUTER LH 71702C - BOARD SUB-ASSY, REAR SEAT BACK, LH 71878E - COVER, REAR SEAT RECLINING, INNER RH 71879E - COVER, REAR SEAT RECLINING, INNER LH 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71940E - HEADREST ASSY, NO.2 SEAT 71956B - SUPPORT, REAR SEAT HEADREST 71956B - SUPPORT, REAR SEAT HEADREST 71970 - HEADREST ASSY, REAR SEAT 71970 - HEADREST ASSY, REAR SEAT 72058 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72616B - COVER, REAR SEAT LOCK STRIKER 72620E - CABLE ASSY, REAR NO.1 SEAT LOCK 72622B - BUSH, REAR SEAT BACK STOPPER CONNECTING ROD 72622B - BUSH, REAR SEAT BACK STOPPER CONNECTING ROD 72909 - HANDLE 3RD SEAT 72995D - COVER, REAR SEAT CUSHION, INNER RH 72996A - COVER, REAR SEAT BACK 72998B - COVER, REAR SEAT CUSHION, LH 73949 - CAP 73949 - CAP ** Std Part ** Std Part ** Std Part 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH 79040B - LEG ASSY, REAR NO.2 SEAT, LH 79206B - LEG SUB-ASSY, NO.2 SEAT, LH 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
