TOYOTA HIGHLANDER JPP GVU48L-BRXGKA / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SEAT SEAT TRACK

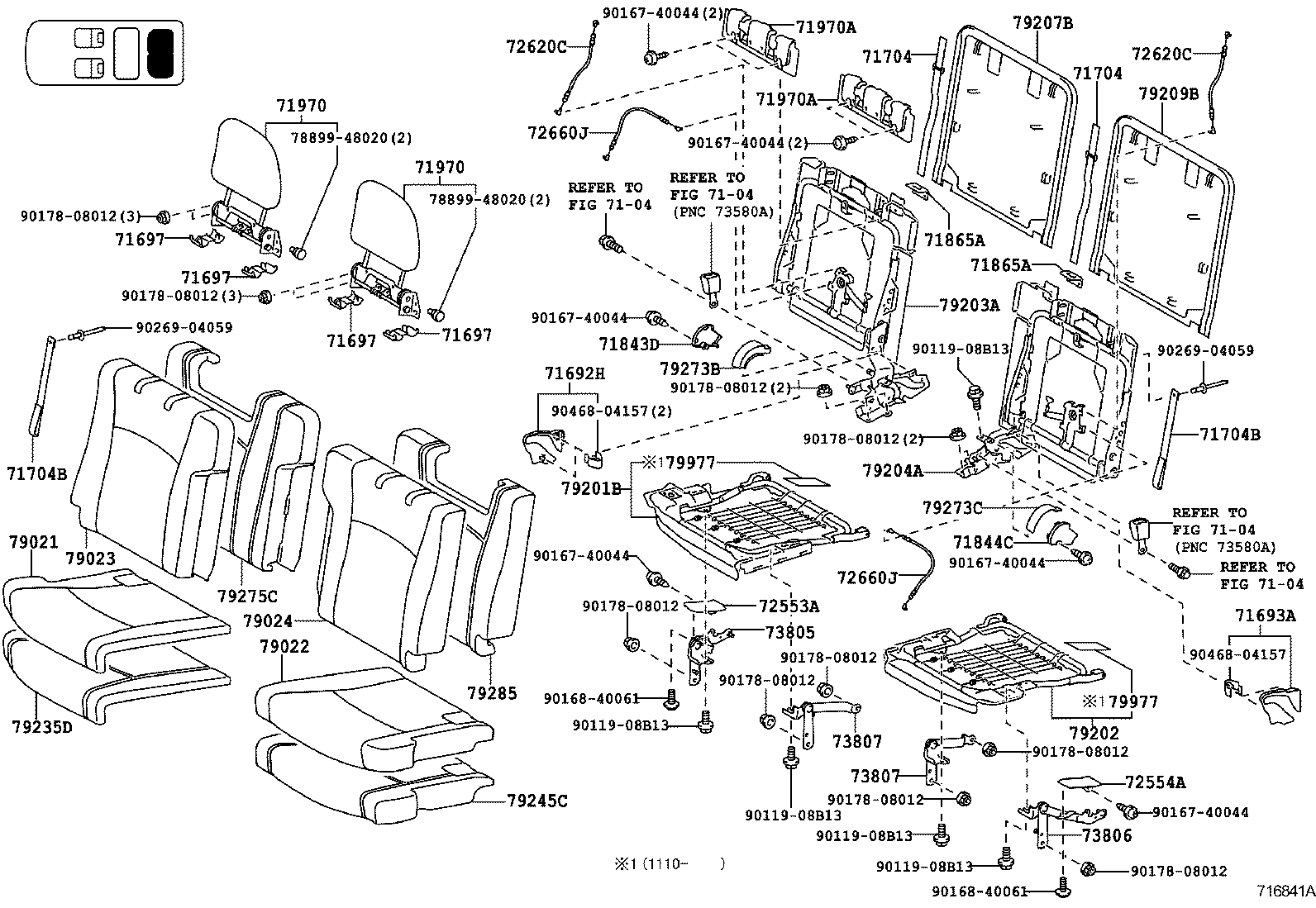

REAR NO.2 SEAT ILLUST NO. 1 OF 2(1008- )

HIGHLANDER JPP | REAR SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71692H - COVER, REAR SEAT CUSHION HINGE, NO.3 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 71697 - PROTECTOR, REAR SEAT BACK EDGE 71697 - PROTECTOR, REAR SEAT BACK EDGE 71697 - PROTECTOR, REAR SEAT BACK EDGE 71697 - PROTECTOR, REAR SEAT BACK EDGE 71704 - BAND SUB-ASSY, REAR SIDE SEAT 71704 - BAND SUB-ASSY, REAR SIDE SEAT 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 71843D - COVER, REAR SEAT RECLINING, NO.2 RH 71844C - COVER, REAR SEAT RECLINING, NO.2 LH 71865A - BEZEL, REAR SEAT COVER, NO.1 71865A - BEZEL, REAR SEAT COVER, NO.1 71970 - HEADREST ASSY, REAR SEAT 71970 - HEADREST ASSY, REAR SEAT 71970A - COVER, REAR SEAT HEADREST 71970A - COVER, REAR SEAT HEADREST 72553A - PROTECTOR, RECLINING COVER, RH 72554A - PROTECTOR, RECLINING COVER, LH 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK 72660J - CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK 72660J - CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK 73805 - LINK SUB-ASSY, REAR SEAT SUSPENSION, OUTER RH 73806 - LINK SUB-ASSY, REAR SEAT SUSPENSION, OUTER LH 73807 - LINK SUB-ASSY, REAR SEAT SUSPENSION, INNER 73807 - LINK SUB-ASSY, REAR SEAT SUSPENSION, INNER ** Std Part ** Std Part 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH 79207B - BOARD SUB-ASSY, NO.2 SEAT BACK, RH 79209B - BOARD SUB-ASSY, NO.2 SEAT BACK, LH 79235D - PAD, NO.2 SEAT CUSHION, RH 79245C - PAD, NO.2 SEAT CUSHION, LH 79273B - COVER, NO.2 SEAT HINGE, NO.3 79273C - COVER, NO.2 SEAT HINGE, NO.4 79275C - PAD, NO.2 SEAT BACK, RH 79285 - PAD, NO.2 SEAT BACK, LH 79977 - FELT, SEAT BACK 79977 - FELT, SEAT BACK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
